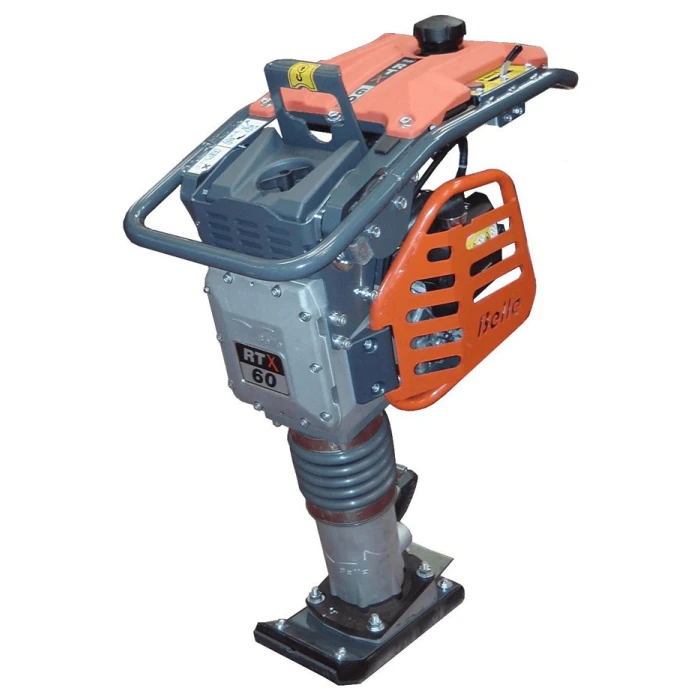

The Belle RTX60R is a market-leading, narrow bodied, heavy-duty 4-stroke petrol trench rammer with high-level compaction and extra-power for use on cohesive materials and gradients.
This well-balanced, reliable, easy to manoeuvre and easy to control vibratory rammer has a strong, durable design and is ideal for compacting hardcore, soil, lean mix concrete in trenches, asphalt reinstatement works and other confined areas.

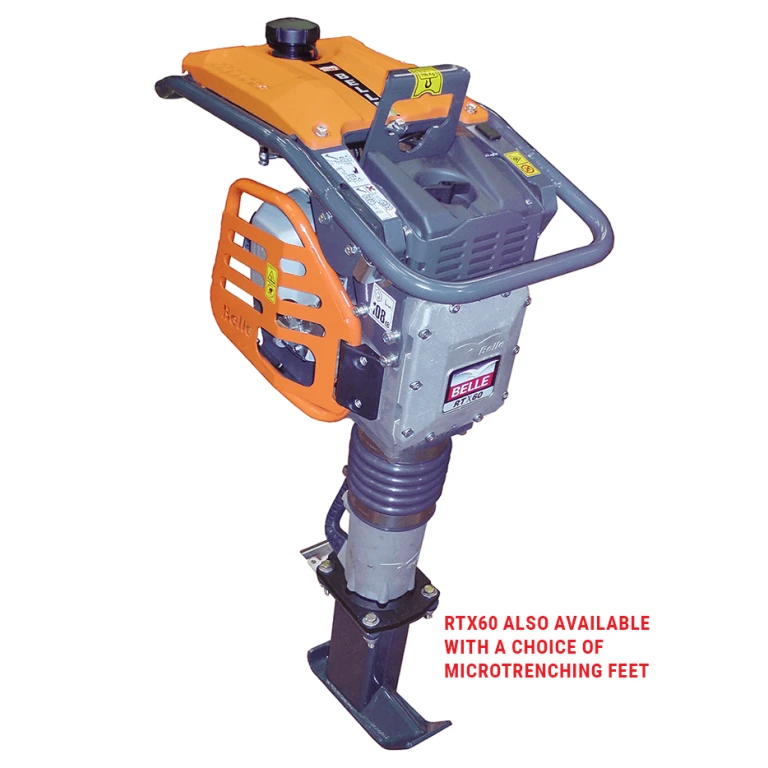

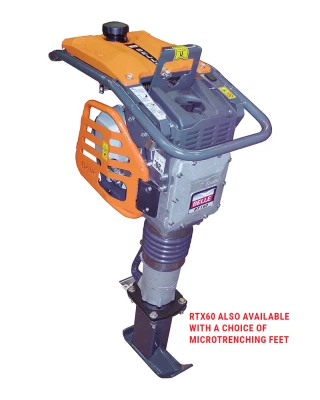

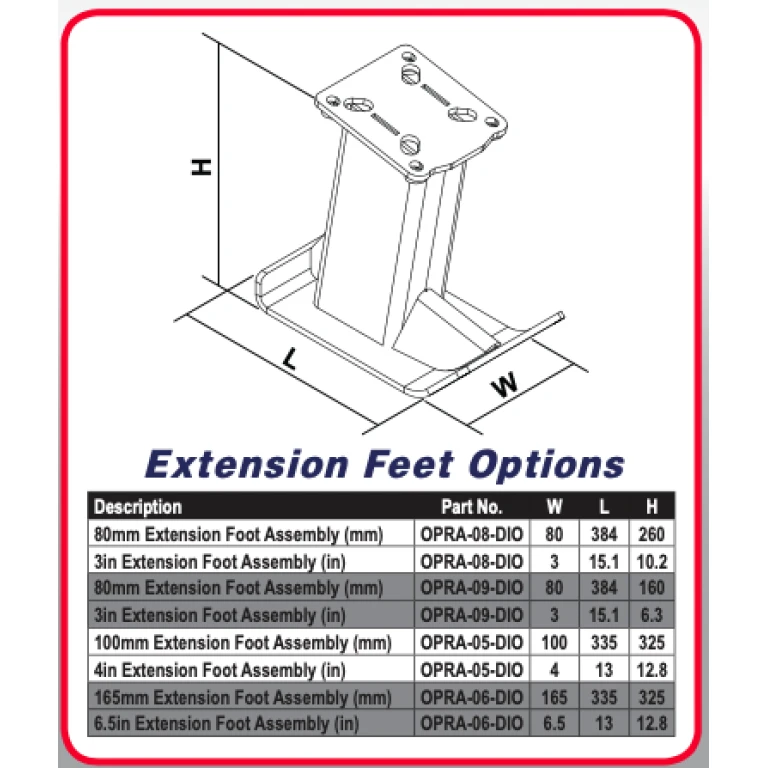

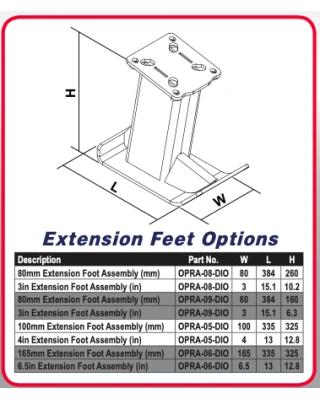

It is available with a choice of 3 fully interchangeable standard feet (165, 230 and 280mm wide), which makes it highly versatile and suitable for a wider range of compaction duties. Due to its lighter weight and considered balanced design, it is also commonly used with a range of custom-engineered extension feet for micro-trenching applications too (reinstatement after the installation of fibreoptics, microduct, cabling etc).
The Belle RTX60R is also equipped a triple-filtration air cleaner system, a dual-filtration fuel system, a heavy-duty protected throttle lever, a low-maintenance leg with oil sight glass, swing-out engine protection with easy access to maintenance points and a lower grab handle and front roller for improved handling and easy transportation.
It additionally features a reliable and purpose-engineered 4-stroke Honda GXR120 air-cooled petrol engine which has been specially developed to power vibratory rammers and has a low Hand Arm Vibration, which enables it to be used safely for longer periods of time for even greater productivity.
RTX60R (Honda 4-Stroke petrol) – (3.0Hp/2.3kW). Impact Force 13.6kN. Blows per min 450-660. 60kg.
To find out more about the Altrad Belle micro-trenching system and solutions range (including the RTX60M and DUO-350X twin-bladed floor saw) please click here.
The reliable 4-Stroke air-cooled single cylinder Honda GXR120 petrol engine used to power the Altrad Belle RTX6OR has been specifically designed and developed for high-vibration toughness, making it the ideal and most suited power source for rammers and other vibratory compaction equipment. The Belle RTX60R also features a carburettor primer bulb, for easy starting, whatever the conditions, together with a triple-filtration air cleaner system, a dual-filtration fuel system and a heavy-duty protected throttle lever for improved serviceability.

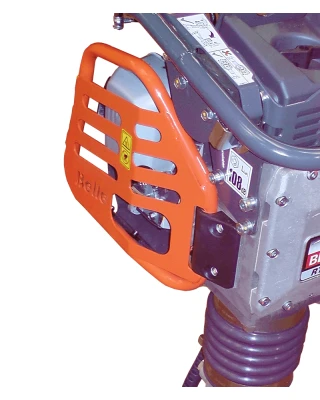

The engine itself is protected by a simple, yet efficient and easy to access swing-out protection side cover, which also provides easy access to maintenance points. The low-maintenance leg of the RTX60R has an oil sight glass and is equipped with a lower grab handle and front roller for improved handling and easy transportation. Both the lower grab handle and front roller are easily replaceable if they become damaged too.
RTX60R x 165
RTX60R x 230
RTX60R x 280
MPN
RTX60H165S
RTX60H230S
RTX60H280S
Engine Make/Model
Honda GXR120
Honda GXR120
Honda GXR120
Nett Power
3.0Hp/2.3kW
3.0Hp/2.3kW
3.0Hp/2.3kW
Foot Size (W x L)
165 x 335mm
230 x 335mm
280 x 335mm
Impact Force
13.6kN
13.6kN
13.6kN
Blows per Min
450-660
450-660
450-660
Carburettor Type
Diaphragm
Diaphragm
Diaphragm
Amplitude
52mm
52mm
52mm
Dimensions (W x H x L)
345 x 975 x 705mm
345 x 975 x 705mm
345 x 975 x 705mm
Weight
60kg
60kg
60kg
