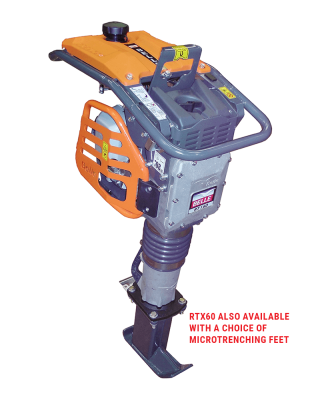

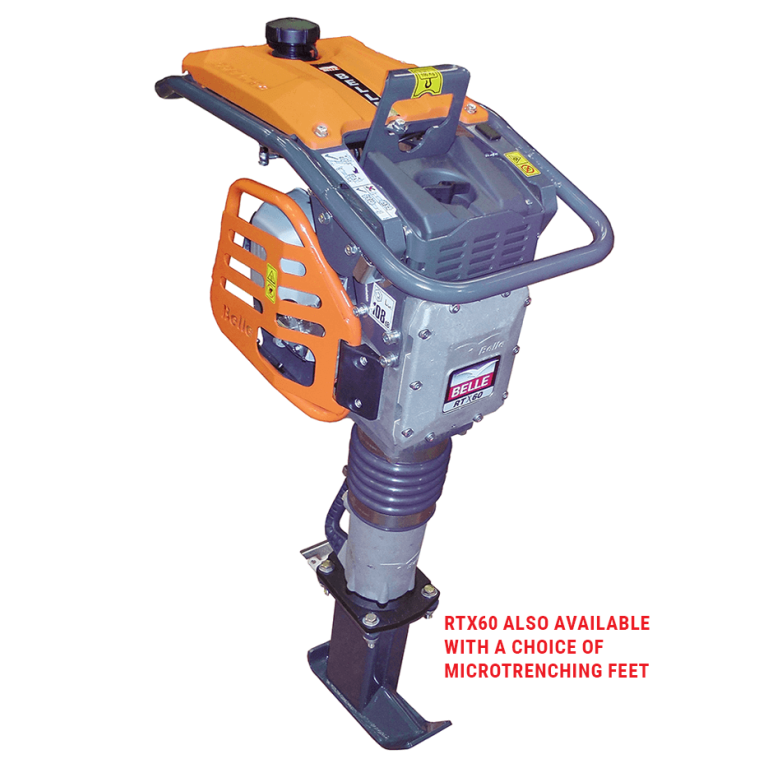

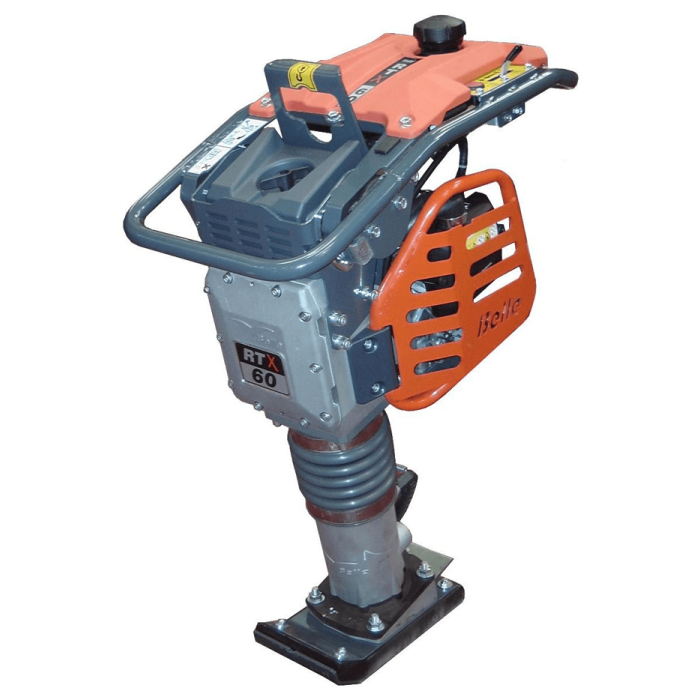

The Belle RTX60R is a market-leading, narrow bodied, heavy-duty 4-stroke petrol trench rammer with high-level compaction and extra-power for use on cohesive materials and gradients.

This well-balanced, reliable, easy to manoeuvre and easy to control vibratory rammer has a strong, durable design and is ideal for compacting hardcore, soil, lean mix concrete in trenches, asphalt reinstatement works and other confined areas.

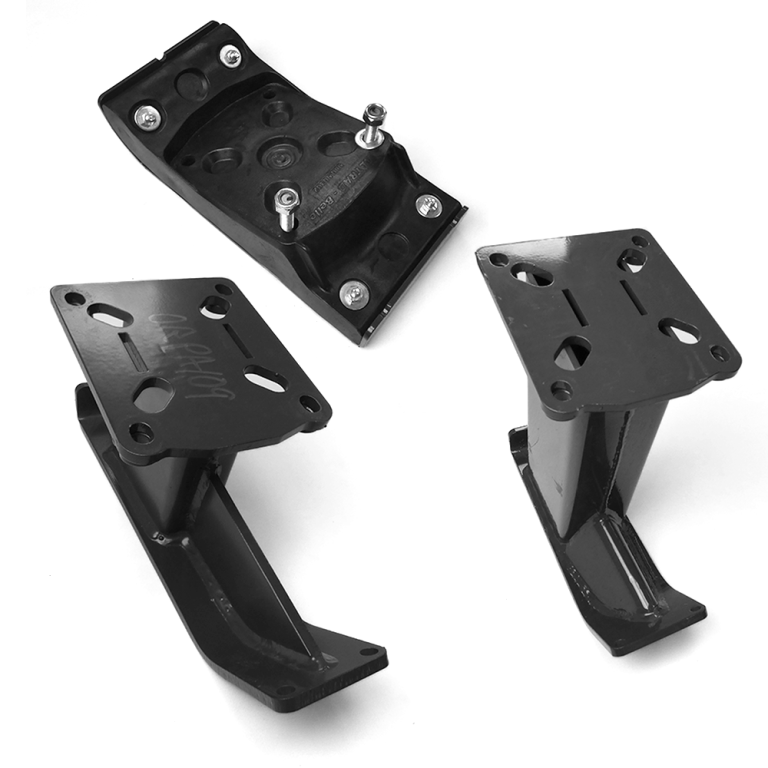

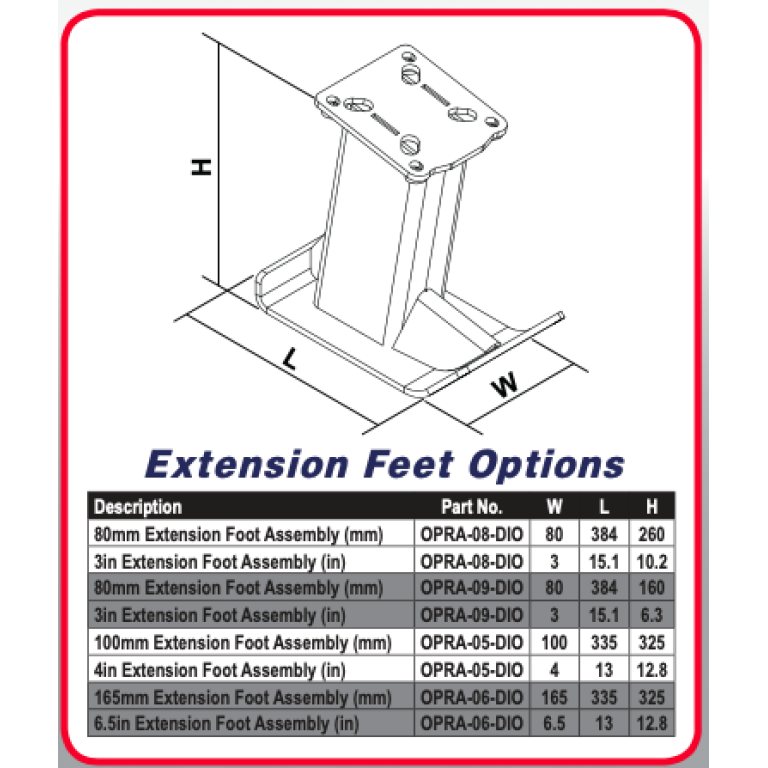

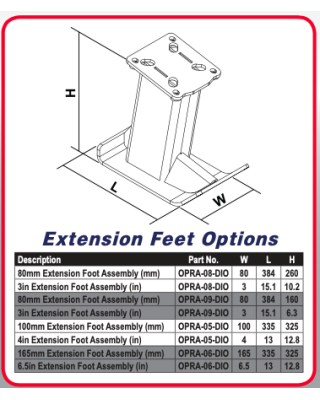

It is available with a choice of 3 fully interchangeable standard feet (165, 230 and 280mm wide), which makes it highly versatile and suitable for a wider range of compaction duties. Due to its lighter weight and considered balanced design, it is also commonly used with a range of custom-engineered extension feet for micro-trenching applications too (reinstatement after the installation of fibreoptics, microduct, cabling etc).

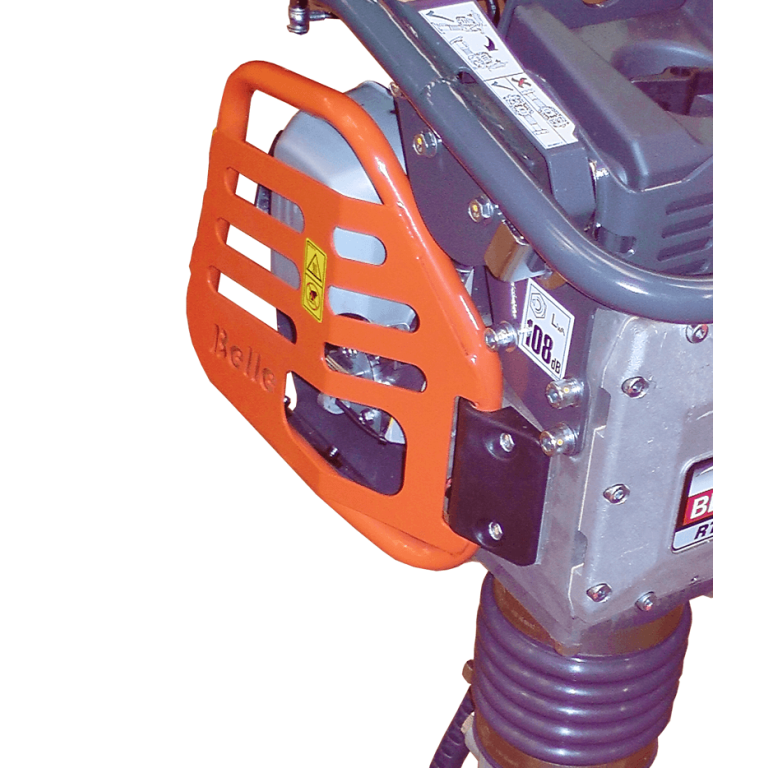

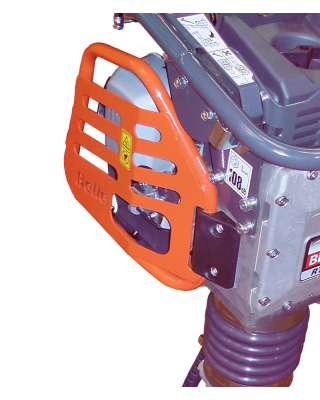

The Belle RTX60R is also equipped a triple-filtration air cleaner system, a dual-filtration fuel system, a heavy-duty protected throttle lever, a low-maintenance leg with oil sight glass, swing-out engine protection with easy access to maintenance points and a lower grab handle and front roller for improved handling and easy transportation.

It additionally features a reliable and purpose-engineered 4-stroke Honda GXR120 air-cooled petrol engine which has been specially developed to power vibratory rammers and has a low Hand Arm Vibration, which enables it to be used safely for longer periods of time for even greater productivity.

RTX60R (Honda 4-Stroke petrol) – (3.0Hp/2.3kW). Impact Force 13.6kN. Blows per min 450-660. 60kg.

To find out more about the Altrad Belle micro-trenching system and solutions range (including the RTX60M and DUO-350X twin-bladed floor saw) please click here.
