Altrad Belle RTX60M Micro-Trenching Rammer (13.6kN) – 4-Stroke

Altrad Belle RTX60M Micro-Trenching Rammer (13.6kN) – 4-Stroke

From £2,047.20
From £1,706.00 Exc. VAT
RRP from £3,834.00 Inc. VAT

In stock

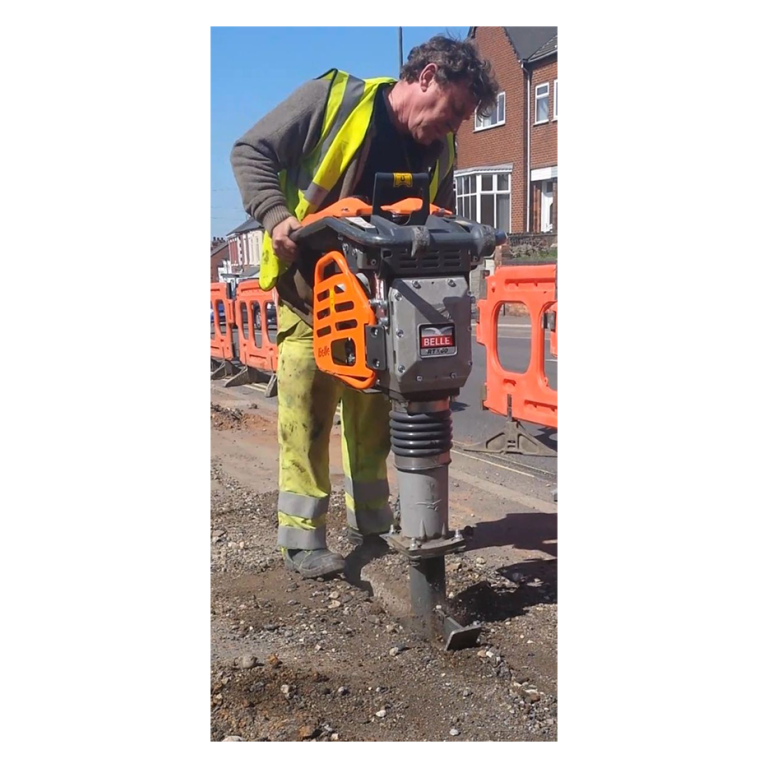

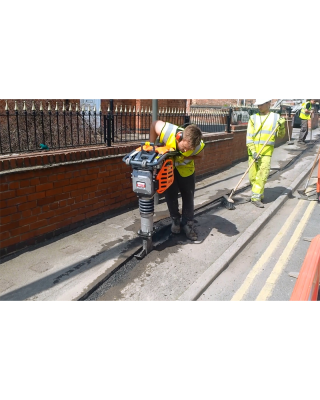

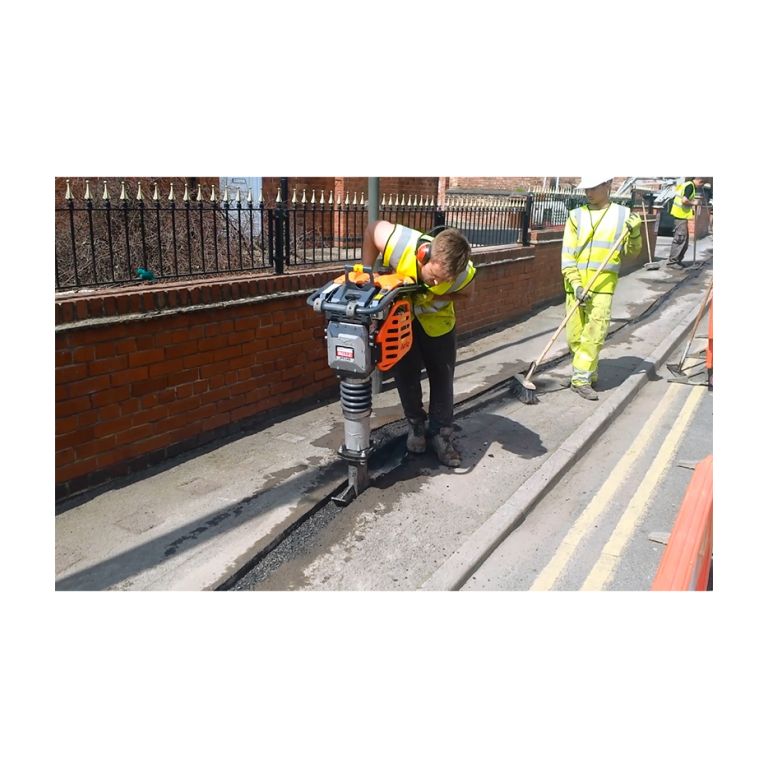

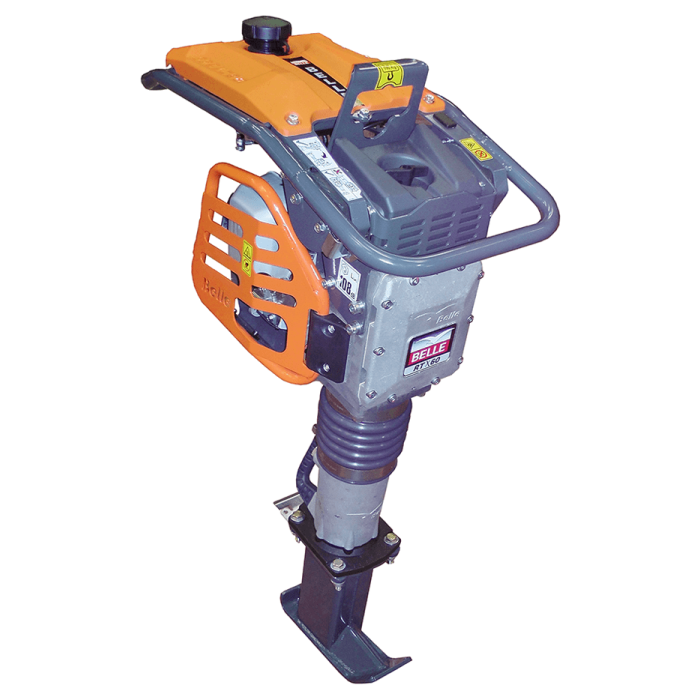

The Belle RTX60M is a well-balanced, easy to manoeuvre and easy to use 60kg narrow-bodied rammer with a high-compaction level.

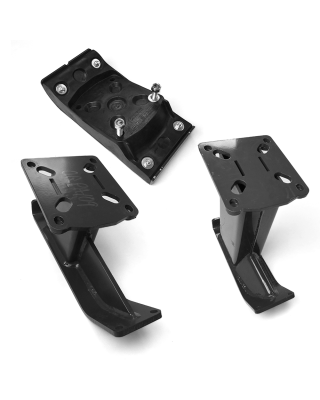

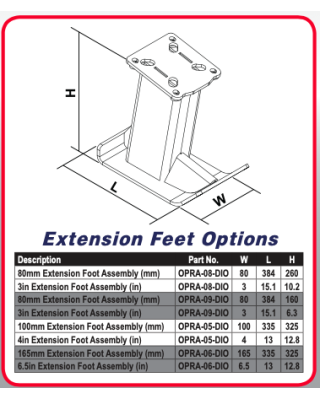

This productive, highly versatile and compact vibratory rammer can conveniently be used with a choice of 3 standard fully-interchangeable feet (165, 230 or 280mm) for maximum versatility and/or with a choice of 4 fully-interchangeable custom-engineered feet (80 x 160mm, 80 x 260mm, 100 x 160mm and 100 x 325mm), specially developed for micro-trenching applications (reinstatement after the installation of fibreoptics, microduct, cabling etc).

Micro-trenching is a fast, efficient and cost-effective process of creating a narrow, shallow trench in the groundwork of an existing hardscape for the installation of cables, fibre optics, pipework, ducting etc. This solution is considered to be less disruptive, faster and more cost-effective than conventional methods, with less aesthetic and environmental impact too.

The RTX60M has a strong, durable design and is ideal for compacting hardcore, soil, lean mix concrete in trenches, asphalt reinstatement works and other confined areas.

It is also equipped a triple-filtration air cleaner system, a dual-filtration fuel system, a heavy-duty protected throttle lever, a low-maintenance leg with oil sight glass, swing-out engine protection with easy access to maintenance points and a lower grab handle and front roller for improved handling and easy transportation.

It features a reliable and purpose-engineered 4-stroke Honda GXR120 air-cooled petrol engine which has been specially developed to power vibratory rammers and has a low Hand Arm Vibration, which enables it to be used safely for longer periods of time for even greater productivity.


RTX60M (Honda 4-Stroke petrol) – (3.0Hp/2.3kW). Impact Force 13.6kN. Blows per min 450-660. 60kg.

To find out more about the Altrad Belle micro-trenching system and solutions range (including the RTX60M and DUO-350X twin-bladed floor saw) please click here.

Choose Your Size
RTX60M c/w 80 x 160mm Micro Foot
£2,047.20
£1,706.00 Exc. VAT
RRP from £3,834.00 Inc. VAT
Qty:-
+
RTX60M c/w 80 x 260mm Micro Foot
£2,101.20
£1,751.00 Exc. VAT
RRP from £3,834.00 Inc. VAT
Qty:-
+
RTX60M c/w 100 x 160mm Micro Foot
£2,119.20
£1,766.00 Exc. VAT
RRP from £3,834.00 Inc. VAT
Qty:-
+
RTX60M c/w 100 x 325mm Micro Foot
£2,143.20
£1,786.00 Exc. VAT
RRP from £3,834.00 Inc. VAT
Qty:-
+
Add Standard Foot
Qty:-+
Add a Spare Extension Foot
Qty:-+
Add Transportation Aid

(Delivery calculated at checkout)

SKU: RTX60-MICRO
Share:

The RTX60M is a heavy-duty, narrow bodied 4-stroke trench rammer with high level compaction and extra power for use on cohesive materials and gradients. Trench rammers are ideal for compacting hardcore, soil, lean mix concrete in trenches, asphalt reinstatement works and other confined areas.

This well balanced and easy to control rammer has a strong, durable design and unlike many other competitor equivalents features a 4-stroke Honda petrol engine and a choice of various sized interchangeable feet for greater product versatility across a wider range of compaction tasks.

The air cooled 4-stroke single cylinder OHV Honda GXR120 petrol engine fitted to the RTX60M has been specifically designed for high vibration toughness making it the ideal power source for rammers, unlike other, more standard engines used by some other manufacturers of trench rammers. It has a carburettor primer bulb for easy starting in any conditions, a triple-filtration air cleaner system, duel-filtration fuel system and a heavy-duty protected throttle lever.

The engine is protected by a simple, efficient and easy to access swing-out protection side cover, which also provides easy access to maintenance points. The low maintenance leg of the RTX60M has an oil level sight glass and is equipped with a grab handle for improved product handling, together with a front roller on the main handle for easy transportation. Both the lower grab handle and front roller are easily replaceable if they become damaged.

RTX60M 80 x 160 RTX60M 80 x 260 RTX60M 100 x 160 RTX60M 100 x 325
MPN RTX60M80X160 RTX60M80X260 RTX60M100X160 RTX60M100X325
Engine Make/Model Honda GXR120 Honda GXR120 Honda GXR120 Honda GXR120
Engine Power 3.0Hp/2.3Kw 3.0Hp/2.3Kw 3.0Hp/2.3Kw 3.0Hp/2.3Kw
Foot Size (W x H) 80 x 160mm 80 x 260mm 100 x 160mm 100 x 325mm
Impact Force 13.6kN 13.6kN 13.6kN 13.6kN
Blows per Min 450-660 450-660 450-660 450-660
Carburettor Type Diaphragm Diaphragm Diaphragm Diaphragm
Amplitude 52mm 52mm 52mm 52mm
Dimensions (W x H x L)
345 x 1055 x 705mm 345 x 1135 x 705mm 345 x 1055 x 705mm 345 x 1220 x 705mm
Weight 60kg 60kg 60kg 60kg
