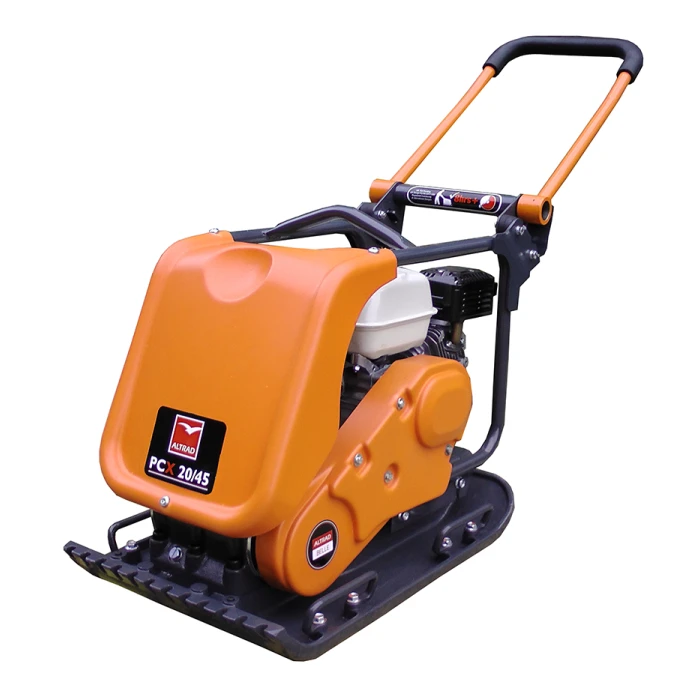

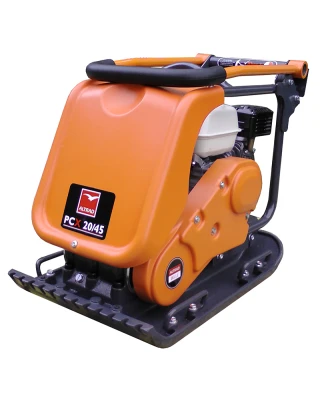

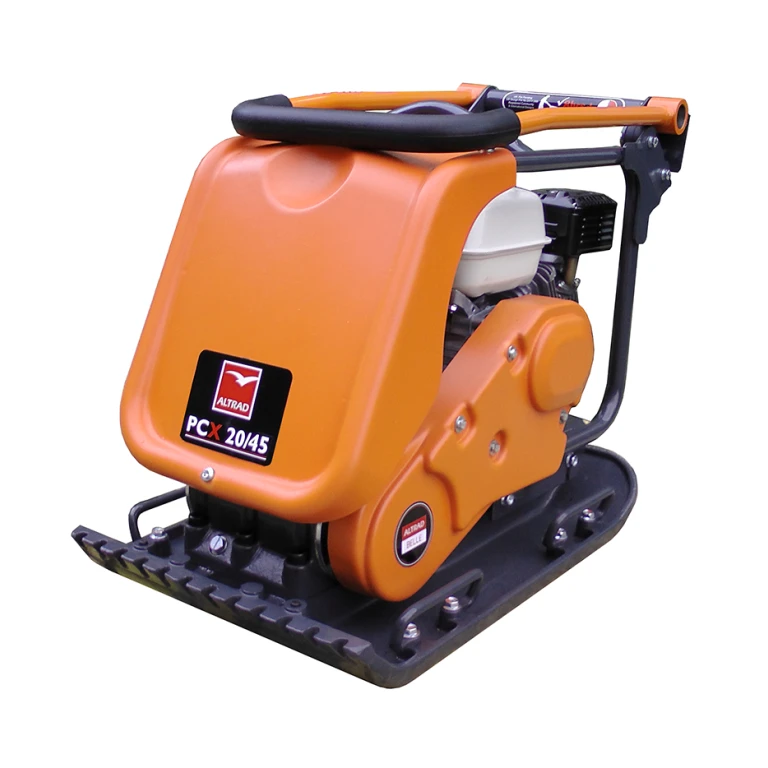

Altrad Belle 18” PCX 20/45 Plate Compactor - Petrol

The Belle PCX20/45 is a heavyweight professional forward compaction plate with high compaction performance, great manoeuvrability and excellent travel speeds.

This user-friendly and dependable plate with its powerful Honda engine, high compaction force, fast travel speed and strength of construction is ideal for demanding compaction applications and heavy site use alike.

This strong and robust plate has a tubular construction together with a reinforced centrifugal clutch, simplified belt adjustment and life-lubricated vibration bearings for reliable and durable performance. It also has folding handle which makes it not only easy to transport and store, but also able to be used close to formwork and around/beneath many other site physical obstructions and protrusions. Its low Hand Arm Vibration levels also enable it to be used safely for longer periods of time.

PCX 20/45 (Honda Petrol) - (5.5Hp/4.0kW). 450mm wide. 20kN centrifugal force. 26 m/min travel speed. 91kg.

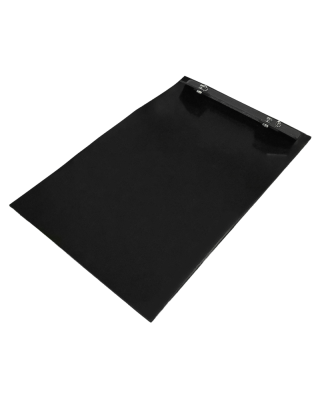

Why not add an optional paving pad, wheel kit or water kit to your purchase for maximum versatility and product utilisation?

Altrad Belle Dealer | Red Band UK

£1,174.80 £979.00
In stock
RRP from £1,760.40 Inc. VAT


  PCX 20/45
Engine Honda GX160 Petrol
Nett Power 5.5Hp/4.0kW
Plate Size 450 x 696mm (W x L)
Width 450mm
Length - Storage 880mm
Length - Operating 1167mm
Static Pressure 455kg/m²
Centrifugal Force 20kN
Travel Speed 26m/min
Vibration Level 3.50m/sec²**
Weight 91kg*
Our Price (Exc. VAT) £979.00

*Optional water spray kit, wheel kit and/or paving pad not included

**OPERC independent testing/vibration levels tested to BS5349 using EN5

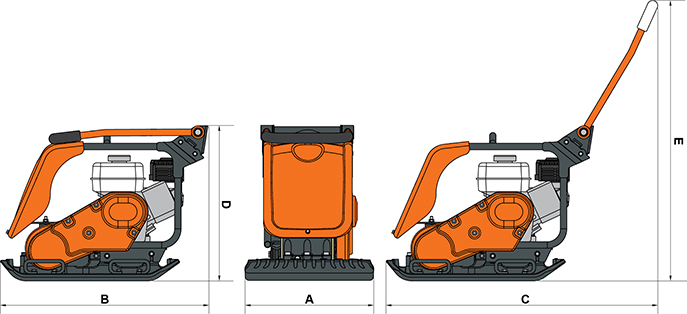

PCX 20/45
A - Width 450mm
B - Length - Storage 880mm
C - Length - Operating 1167mm
D - Height - Storage 585mm
C - Height - Operating 987mm


The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the battery-powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX46/50 (MC4551), together with the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).

All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and front lift cage for easier loading and unloading.

They are additionally equipped with a protected spraybar which is easy to position and integral paving pad clamp points. Angled holes on the spraybar allow complete water coverage over the full width preventing any material pick-up on the plate bottom. Optional water kits (9.5 litre water tank and fittings), paving pads and transport wheel kits are also available to buy as extras.
