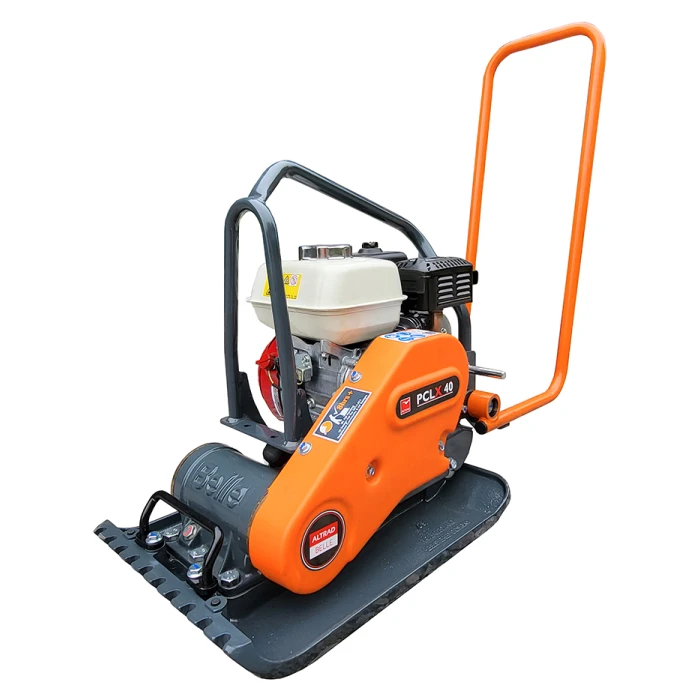

Altrad Belle 16” PCLX 40 Plate Compactor - Petrol

The Belle PCLX 40 is a 16” high performance professional plate compactors suitable for a multitude of compaction tasks.

This highly popular forward plate is widely regarded for its robustness, ease of use, compaction performance, manoeuvrability, durability and user-friendliness.

It is equipped with a 13kN vibration unit which provides both excellent compaction force and fast travel speed for improved productivity, together with a powerful genuine Honda GX120 engine for reliability, a contoured baseplate to prevent digging in when dragged or turned and a Low Hand Arm Vibration design which provides longer safe usage times.

The Belle PCLX 40 is also easy to transport and store.

PCLX 40 (Honda Petrol) - (3.2Hp/2.4kW). 400mm wide. 13kN. 350kg/m². 20m/min. 68.5kg.

Why not add an optional paving pad, wheel kit or water kit to your purchase for maximum versatility and product utilisation?

Altrad Belle Dealer | Red Band UK

£1,065.60 £888.00
In stock
RRP from £1,548.00 Inc. VAT


  PCLX 40
MPN LX4071
MPN inc Water Kit LX4071W
Engine Honda GX120 Petrol
Engine Power 3.2Hp/2.4kW
Engine RPM 3850
Dimensions (W x L x H) 400 x 950 x 935mm
Height - Operation 935mm
Length - Operation 950mm
Width 400mm
Length - Storage 790mm
Height - Storage 620mm
Static Pressure 350kg/m²
Centrifugal Force 13kN
Travel Speed 20m/min
Vibration Level 2.50m/sec²
Weight 68.5kg*
Our Price (Exc. VAT) £888.00

*Optional water spray kit, wheel kit and/or paving pad not included

A - Height - Operation 935mm
B - Length - Operation 950mm
C - Width 400mm
D - Length - Storage 790mm
E - Height - Storage 620mm

The Belle PCLX 40 is strong, robust, user-friendly and dependable forward plate compactor.

It features a tubular frame design to protect vulnerable components and has been engineered are withstand the rigours and demands of rental and contractor use alike.

Its contoured baseplate has been designed to make it not dig in when dragged or turned and to optimise speed and manoeuvrability, making it both easy to operate and control.

Although strong and robust, this high performance plate is comparatively lightweight thanks to its tubular frame construction. This is achieved without compromising its strength, performance, durability or reliability.

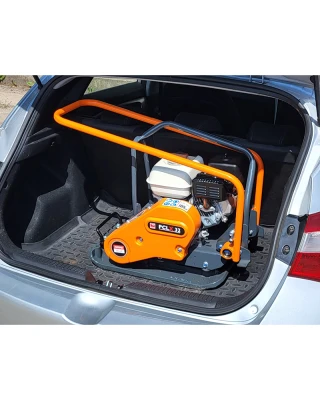

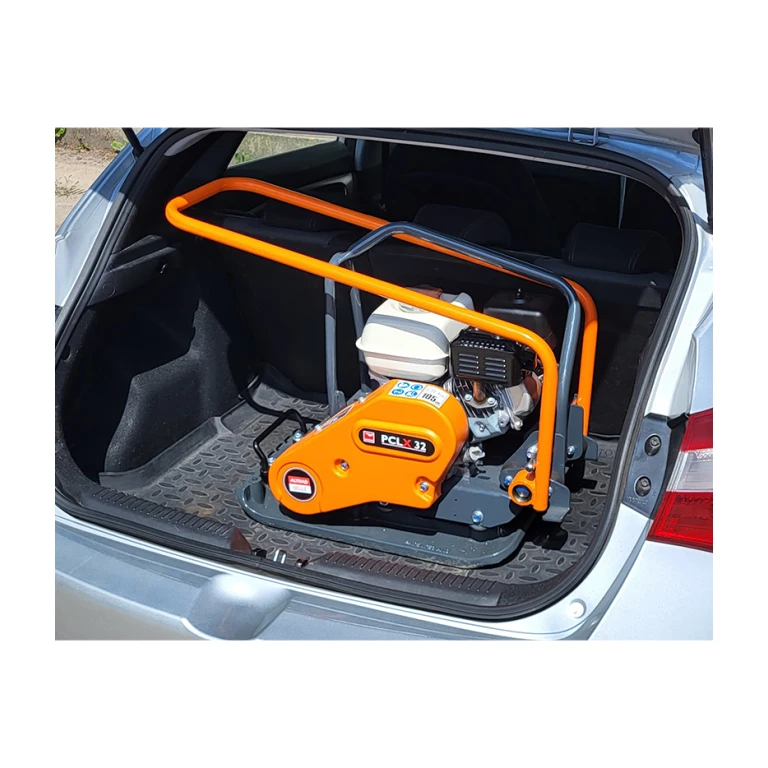

It is also equipped with multiple manual handling lift points, a conveniently located central lifting point and a detachable main handle for ease of movement and transportation. Despite being BIG on performance, it is compact enough to even fit in a standard car boot when their handle is folded.

The PCLX 40 is equipped with a powerful genuine Honda GX120 engine and a 13kN high performance oil filled vibrator which is fitted with top quality bearings for durability and reliability, designed to produce both maximum compaction and excellent travel speeds.

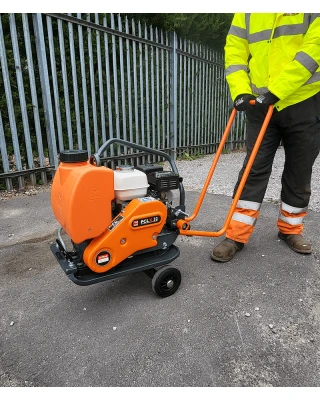

Optional extras for the PCLX 40 include a paving pad, detachable wheel kit and quick-release removeable water kit (12 litre tank capacity).

The Belle PCLX 40 supersedes the Belle PCLX 400 plate compactor.
