| Model | |
| ↓ | PCX 17/50A |

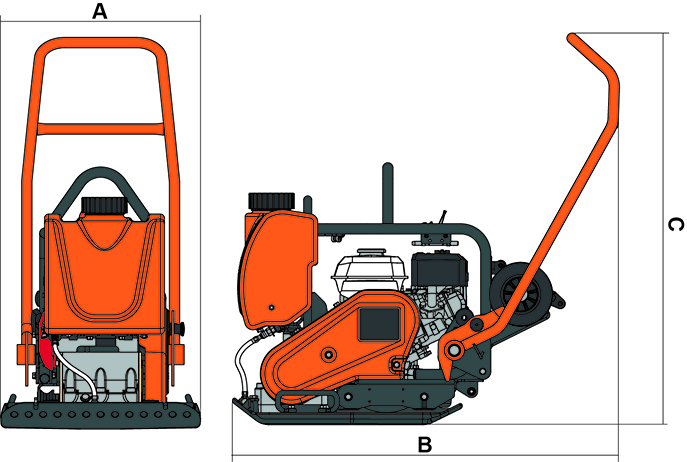

| A – Width | 500mm |
| B – Length – Operating | 960mm |
| C – Height – Operating | 975mm |
| Length – Storage | 1025mm |
| Height – Storage | 685mm |
The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the battery-powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX46/50 (MC4551), together with the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).
All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and front lift cage for easier loading and unloading.
They are additionally equipped with a protected spraybar which is easy to position and integral paving pad clamp points. Angled holes on the spraybar allow complete water coverage over the full width preventing any material pick-up on the plate bottom. Optional water kits (9.5 litre water tank and fittings), paving pads and transport wheel kits are also available to buy as extras.

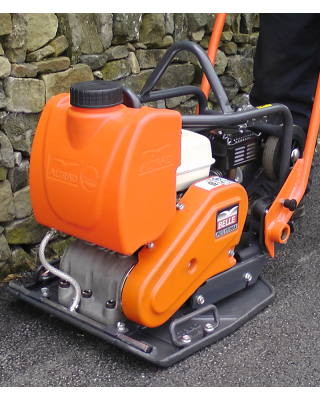

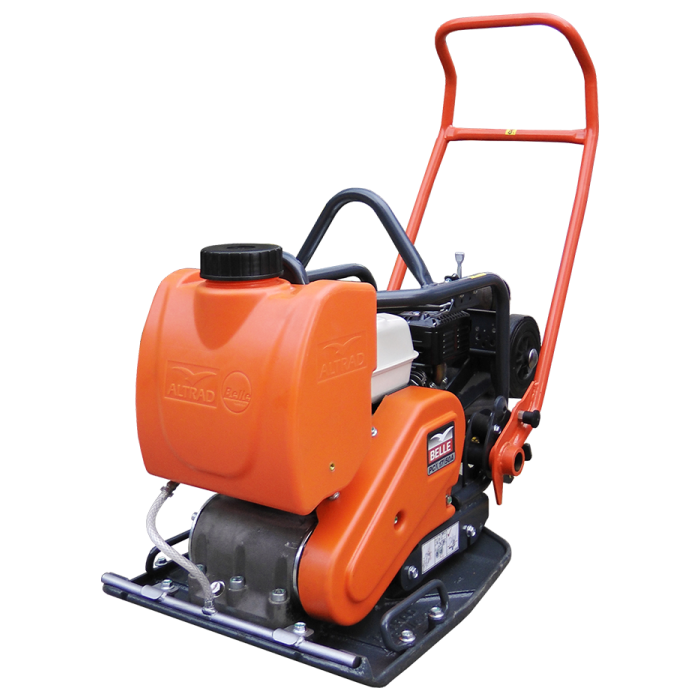

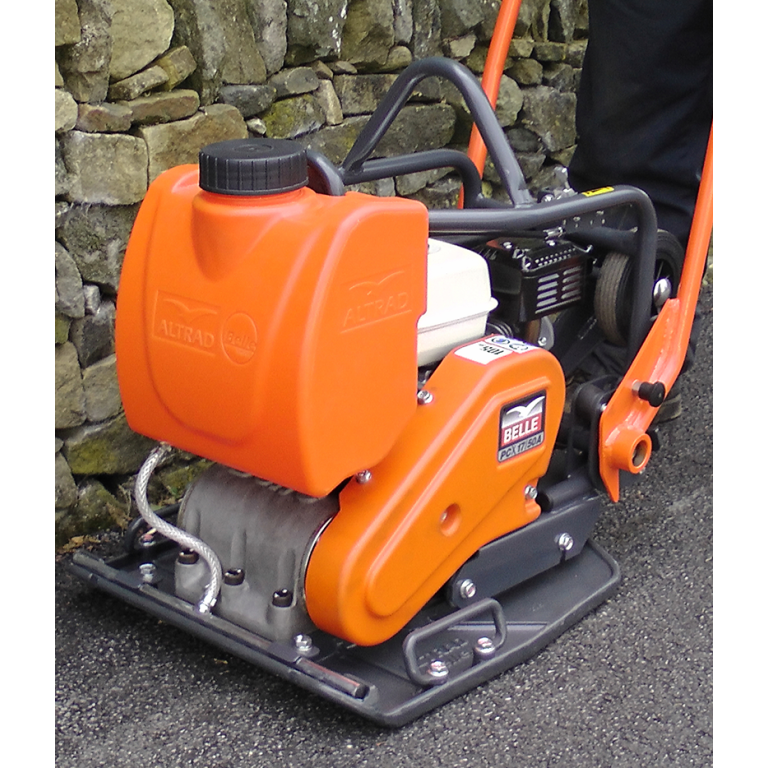

*The PCX17/50A differs slightly from other plates within the PCX range in that it is supplied with an Quick-Engage wheel kit and a large 12 litre water tank as standard and has been ultimately designed for the productive compaction of asphalt and Macadam surfaces.
