Altrad Belle 13” PCLX 32S Streetworks HAUC Plate Compactor (13kN) – Petrol

Altrad Belle 13” PCLX 32S Streetworks HAUC Plate Compactor (13kN) – Petrol

£1,198.80
£999.00 Exc. VAT
RRP £1,726.80

In stock

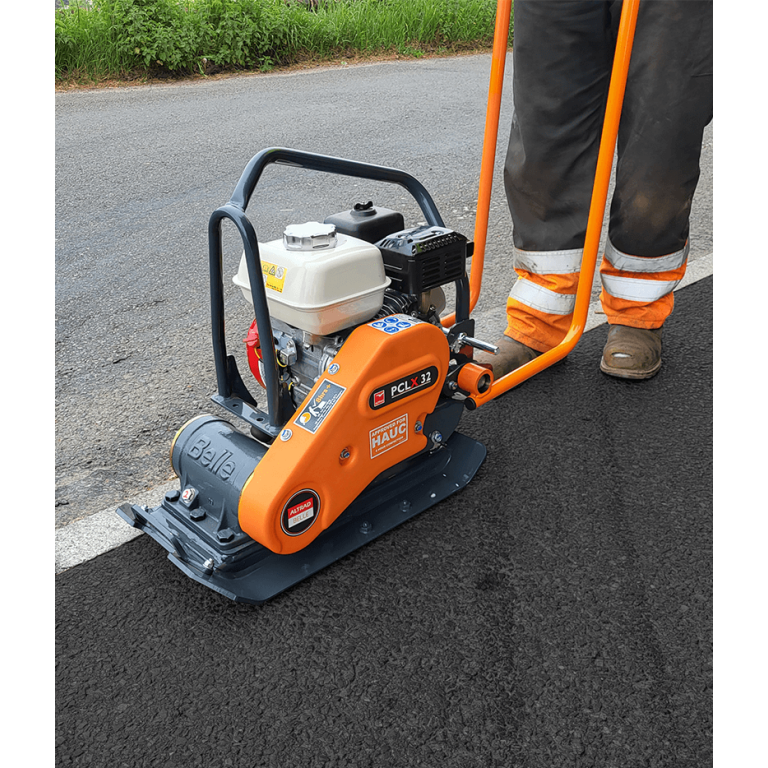

The Belle PCLX 32S ‘Streetworks’ is a high performance, single direction compaction plate designed specifically to meet (and exceed) the UK Government HAUC requirements for the reinstatement of footpaths. It is most commonly referred to as the Belle Streetworks (superseding its predecessor, the Belle PCLX 320 Streetworks).

This compact and robust professional plate compactor has a low Hand Arm Vibration (2.14m/sec2), a high compaction force and a fast travel speed of 18m/min for improved productivity.

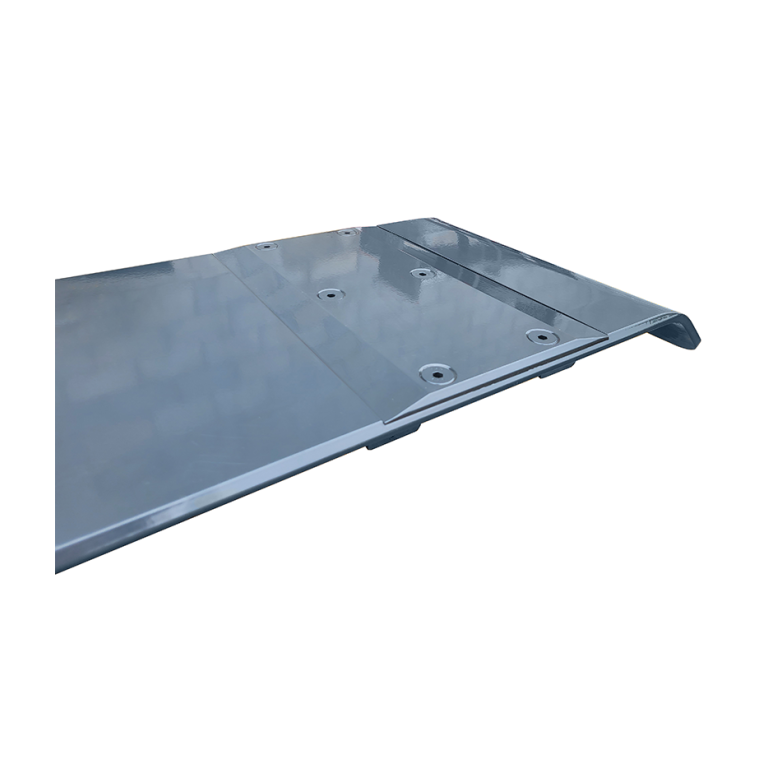

It features a unique specially produced ‘Dual Force’ baseplate which is made from StrenxTM performance steel with a Hardox® wear plate for added strength and durability. In combination with the 13kN vibrator this produces a compaction force of 1662kg/m2, thereby significantly exceeding the 1400kg/m2 static pressure requirements of HAUC.

The Belle PCLX 32S is easy to use, productive, easy to manoeuvre, control, transport and store.


PCLX 32S Streetworks (Honda Petrol) – (3.2Hp/2.4kW). 320mm wide. 13kN. 1662kg/m2. 18m/min. 67kg.

Why not add an optional wheel kit or water kit to your purchase for maximum versatility and product utilisation?

Add Optional Extra's
Detachable Wheel Kit (OPP/60/DIO)
£133.20
£111.00 Exc. VAT
RRP £1,726.80
Qty:-
+
Detachable Wheel Kit (OPP/60/DIO)
Altrad Belle Water Kit (OPP/57S/DIO)
£240.00
£200.00 Exc. VAT
RRP £1,726.80
Qty:-
+
Altrad Belle Water Kit (OPP/57S/DIO)

In stock

(Delivery calculated at checkout)

SKU: Streetworks
Share:

Model
PCLX32S SWKS
A – Height – Operation 936mm
B – Length – Operation 835mm
C – Width 320mm
D – Length – Storage 775mm
E – Height – Storage 640.5mm

The Belle PCLX 32S is a lightweight, high performance and easy to use forward direction plate compactor which has been engineered to be strong, durable and designed to withstand the rigours of rental and heavy contractor use alike.

It features a tubular frame which is designed to protect vulnerable parts, is equipped with a powerful genuine Honda GX120 engine and fitted with multiple manual handling lift points together with a conveniently located central lifting point for ease of movement and transportation. It will even fit in a standard car boot when the handle is folded. The operating handle can also be easily removed if required too.

The 13kN high performance oil filled vibrator of the PCLX 32S is designed to produce maximum compaction, excellent travel speeds and is fitted with top quality bearings for durability and reliability.

The PCLX 32S can also be used with an optional detachable wheel kit and quick-release removeable water kit (12 litre tank capacity).

PCLX32S SWKS
MPN LX3271
Engine Honda GX120 Petrol
Engine Power 3.2Hp/2.5kW
Engine RPM 3850
Dimensions (W x L x H) 320 x 835 x 936mm
Height – Operation 936mm
Length – Operation 835mm
Width 320mm
Length – Storage 775mm
Height – Storage 640.5mm
Static Pressure 1662kg/m²
Centrifugal Force 13kN
Travel Speed 18m/min
Vibration Level 2.26m/sec²
Weight 67kg*
