Altrad Belle 14” PCX 60A Plate Compactor (11kN) – Petrol

Contact For Availability

Altrad Belle 14” PCX 60A Plate Compactor (11kN) – Petrol

£1,134.00
£945.00 Exc. VAT
RRP from £1,704.00 Inc. VAT

Contact For Availability

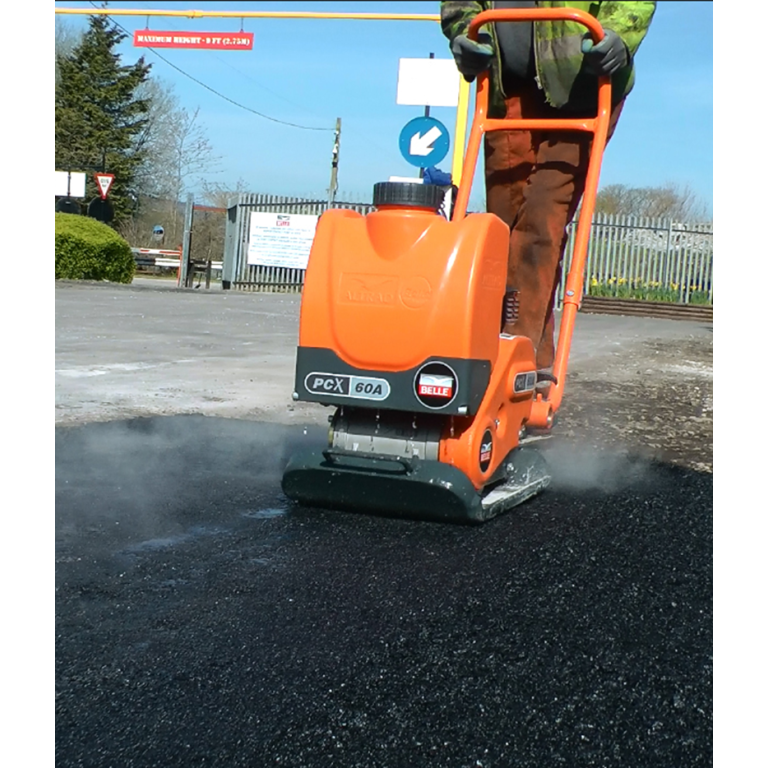

The Belle PCX60A is a midweight multi-purpose professional forward compaction plate with excellent travel speeds and impressive compaction performance.

This highly versatile plate has been designed to perform a multitude of compaction tasks to the highest standards and represents the ultimate combination of weight, power and versatility.

It features a specially fabricated baseplate which has been designed to eradicate ‘track’ marks on hot asphalt surfaces which also includes a thickener plate for increased durability, together with an ergonomic collapsible handle with incorporated Pull-Back bar for easy manoeuvrability, easy transportation and storage. It is also equipped with a 3 mount HAV system for reduced Hand Arm Vibration levels and improved safe usage times.


PCX 60A (Honda Petrol) – (4.0Hp/3.0kW). 350mm wide. 11kN centrifugal force. 25 m/min travel speed. 68.5kg.

Why not add an optional paving pad, wheel kit or water kit to your purchase for maximum versatility and product utilisation?

Add Optional Extra's
Altrad Belle Paving Pad (OPP/65/DIO)
£164.22
£136.85 Exc. VAT
RRP from £1,704.00 Inc. VAT
Qty:-
+
Altrad Belle Paving Pad (OPP/65/DIO)
Detachable Wheel Kit (OPP/104/DIO)
£194.40
£162.00 Exc. VAT
RRP from £1,704.00 Inc. VAT
Qty:-
+
Detachable Wheel Kit (OPP/104/DIO)
Altrad Belle Water Kit (OPP/87/DIO)
£255.60
£213.00 Exc. VAT
RRP from £1,704.00 Inc. VAT
Qty:-
+
Altrad Belle Water Kit (OPP/87/DIO)

Contact For Availability

SKU: PCX60A
Share:

Model
PCX 60A
A – Width 350mm
B – Length – Operating 1010mm
C – Height – Operating 1010mm

The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the battery-powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX46/50 (MC4551), together with the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).

All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and front lift cage for easier loading and unloading.

They are additionally equipped with a protected spraybar which is easy to position and integral paving pad clamp points. Angled holes on the spraybar allow complete water coverage over the full width preventing any material pick-up on the plate bottom. Optional water kits (9.5 litre water tank and fittings), paving pads and transport wheel kits are also available to buy as extras.

PCX 60A
MPN PCU02
Engine Honda GX120 Petrol
Nett Power 4.0Hp/3.0kW
Plate Size 350 x 400mm (W x L)
Height – Operation 1010mm
Length – Operation 1010mm
Width 350mm
Static Pressure 565kg/m²
Centrifugal Force (kN) 11kN
Travel Speed 25m/min
Vibration Level 4.9m/sec²**
Weight 68.5kg*
