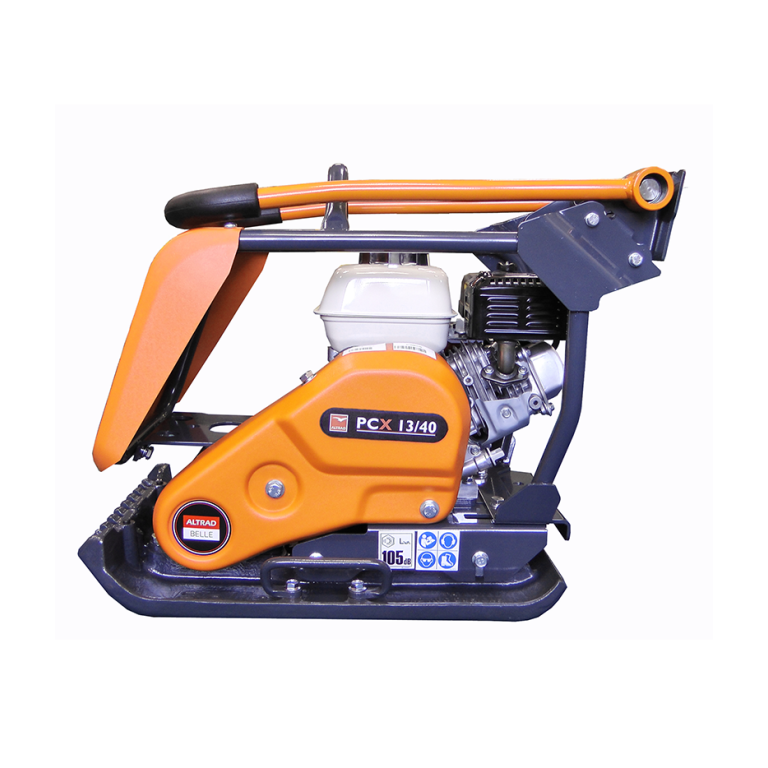

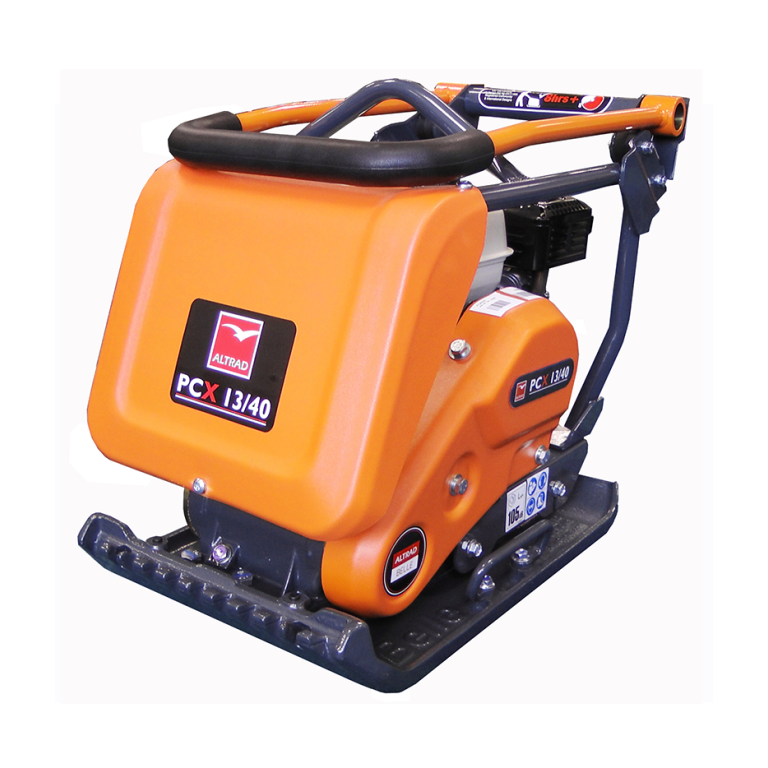

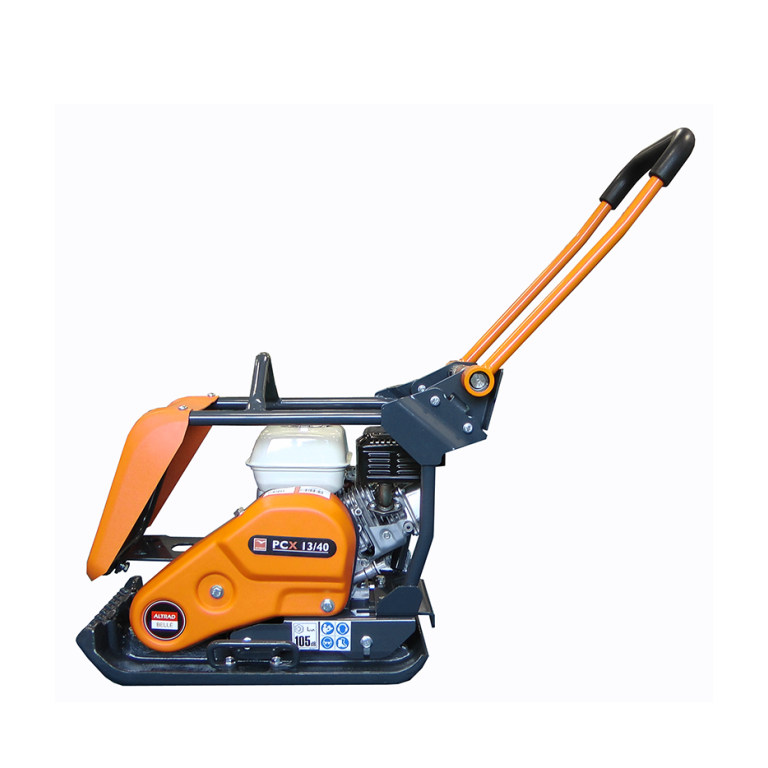

Altrad Belle 16” PCX 13/40 Plate Compactor - Petrol

The Belle PCX13/40 is a user-friendly professional forward compaction plate with high compaction performance, great manoeuvrability and excellent travel speeds.

With its high compaction force, fast travel speeds and strength of construction it is ideal for demanding compaction applications and heavy site use.

This strong and robust plate has a tubular construction together with a reinforced centrifugal clutch, simplified belt adjustment and life-lubricated vibration bearings for reliable and durable performance. It also has folding handle which makes it not only easy to transport and store, but also able to be used close to formwork and around/beneath many other site physical obstructions and protrusions. Its low Hand Arm Vibration levels also enable it to be used safely for longer periods of time.

PCX 13/40 (Honda Petrol) - (4.0Hp/3.0kW). 400mm wide. 13kN centrifugal force. 20 m/min travel speed. 83.5kg.

Why not add an optional paving pad, wheel kit or water kit to your purchase for maximum versatility and product utilisation?

Altrad Belle Dealer | Red Band UK

£1,138.80 £949.00
In stock
RRP from £1,732.80 Inc. VAT


  PCX 13/40
Engine Honda GX160 Petrol
Nett Power 4.8Hp/3.6kW
Plate Size 400 x 606mm (W x L)
Width 400mm
Length - Storage 720mm
Height - Storage 556mm
Static Pressure 556kg/m²
Centrifugal Force 13kN
Travel Speed 20m/min
Vibration Level 3.20m/sec²**
Weight 85.5kg*
Our Price (Exc.VAT) £949.00

*Optional water spray kit, wheel kit and/or paving pad not included

**OPERC independent testing/vibration levels tested to BS5349 using EN500-4

PCX 13/40
A - Width 400mm
B - Height - Storage 556mm
C - Length - Storage 720mm


The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the battery-powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX46/50 (MC4551), together with the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).

All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and front lift cage for easier loading and unloading.

They are additionally equipped with a protected spraybar which is easy to position and integral paving pad clamp points. Angled holes on the spraybar allow complete water coverage over the full width preventing any material pick-up on the plate bottom. Optional water kits (9.5 litre water tank and fittings), paving pads and transport wheel kits are also available to buy as extras.
