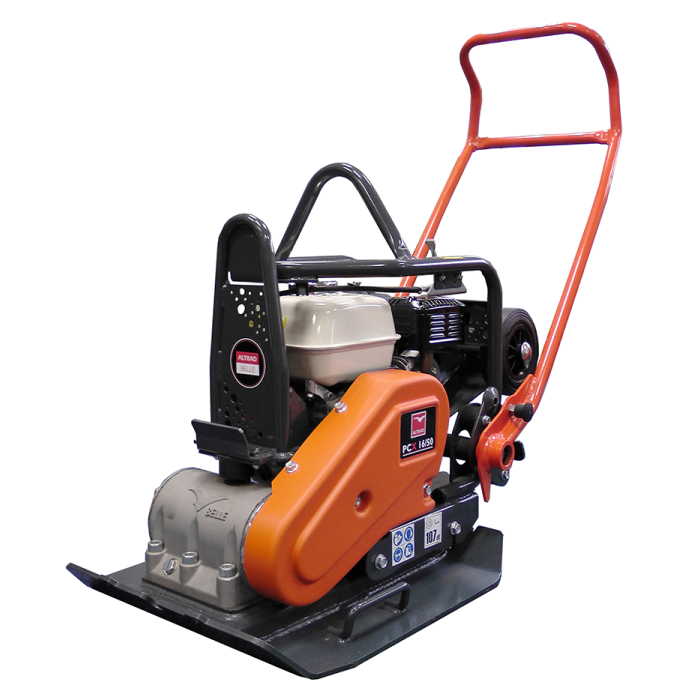

Altrad Belle 20” PCX 16/50 Plate Compactor (16kN) – Petrol

Altrad Belle 20” PCX 16/50 Plate Compactor (16kN) – Petrol

£1,346.40
£1,122.00 Exc. VAT
RRP £1,760.40 Inc. VAT

In stock

The Belle PCX16/50 is a heavyweight professional forward compaction plates with impressive travel speeds, high compaction performance and low Hand Arm Vibration operating levels permitting longer periods of safe use.

This strong, robust and precise plate is easy to manoeuvre and control, thanks in part to its low HAV operating handle with incorporated Pull-Back bar and quick locating latch for improved user handling.

It has is equipped with a powerful Honda engine, a strong protective tubular frame, an 8mm long life baseplate for optimum compaction, a heavy-duty remote throttle and a ‘quick engage’ wheel kit with large diameter wheels to aid transportation on rough terrain, as well to and around site.


PCX 16/50 (Honda Petrol) – (5.5Hp/4.0kW). 500mm wide. 16kN centrifugal force. 21 m/min travel speed. 91.5kg.

Why not add an optional paving pad or water kit to your purchase for maximum versatility and product utilisation?

Add Paving Pad
Qty:-+
Add Water Kit
Qty:-+

In stock

(Delivery calculated at checkout)

SKU: PCX 16/50 (Petrol)
Share:

Model
PCX 16/50
A – Width 500mm
B – Length – Storage 995mm
C – Length – Operating 1065mm
D – Height – Storage 995mm
C – Height – Operating 995mm



The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the battery-powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX46/50 (MC4551), together with the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).

All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and front lift cage for easier loading and unloading.

They are additionally equipped with a protected spraybar which is easy to position and integral paving pad clamp points. Angled holes on the spraybar allow complete water coverage over the full width preventing any material pick-up on the plate bottom. Optional water kits (9.5 litre water tank and fittings), paving pads and transport wheel kits are also available to buy as extras.

*The PCX16/45 and PCX46/50 differ slightly from other plates within the PCX range as they are supplied with an Quick-Engage wheel kit as standard and their optional water kit different. It includes an Easy-Fit 12 litre water tank and Easy-Clean spraybar system with durable metallic water control tap for high flow rate. Paving pads are still available as optional extras for both the PCX16/45 and the PCX20/50 too.

PCX 16/50
MPN MC4551
Engine Honda GX160 Petrol
Nett Power 5.5Hp/4.0kW
Plate Size 500 x 420mm (W x L)
Width 500mm
Length – Storage 995mm
Length – Operating 1065mm
Static Pressure 435.7kg/m²
Centrifugal Force 16kN
Travel Speed 21m/min
Vibration Level 2.87m/sec²**
Weight 91.5kg*
Our Price (Exc. VAT) £1122.00

*Optional water spray kit, wheel kit and/or paving pad not included

**OPERC independent testing/vibration levels tested to BS5349 using EN5
