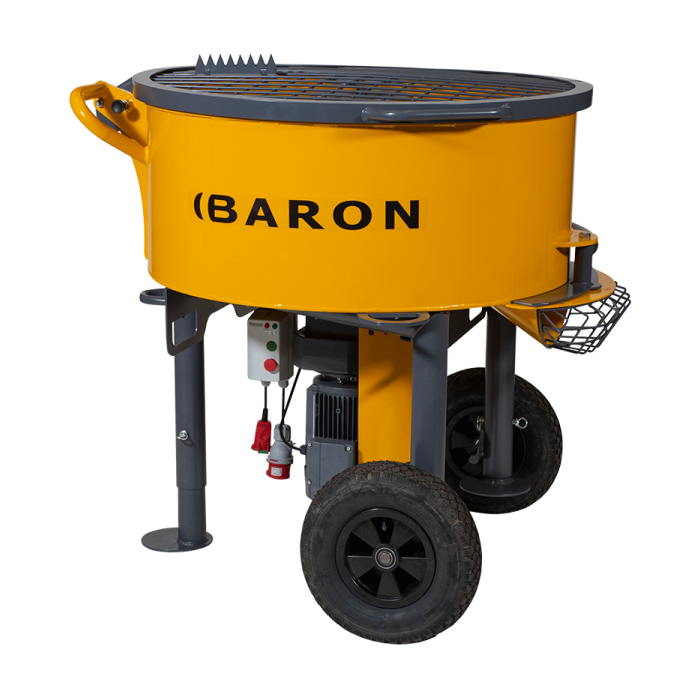

Baron F300 Forced Action Mixer – 380V

Baron F300 Forced Action Mixer – 380V

£5,877.60
£4,898.00 Exc. VAT
RRP £7,062.50 Inc. VAT

In stock

The Baron F300 is the largest and most powerful forced action mixer produced by Baron.

This durable, high-capacity, high-specification professional pan mixer has a 300 litre mixing drum capacity and is equipped with a powerful 5.5Hp/4.0kW 380V three-phase motor.

It is suitable for the demanding professional use and for mixing larger batches with greater efficiency, to the same thorough and exacting high-quality standard.

Forced action mixers have superior mixing capabilities and produce consistent, high-quality finished mixes because they have offset mixing paddles set within a horizontal mixer drum, which enables their mixing blades to reach places where other types of mixers simply cannot. They are commonly used to mix resin bound materials, mortar, wet pour rubber, liquid concrete, screed, plaster, heritage cob and lime, adhesives etc.

The Baron F300 is equipped with a phase indicator, maintenance-free high-quality gears, a protective motor shield, an efficient despatch chute, a removeable mixing head with adjustable mixer shovels, variable speed control, an operator safety switch for enhanced safety, a convenient sack knife located on the drum lid for easy loading, together with transport wheels and lifting brackets for easy movement to and around site.

The F300 is available in 380V (3ph) electric only, which makes it ideal for both site and static industrial use alike.

Baron mixers are considered to be the most robust and dependable Forced Action Mixers available.


F300 (380V* 3ph) – 5.5Hp/4.0kW. 300 litre drum capacity. 250 litre mixing capacity. 245kgs.

Add Spare Blade Set
Qty:-+
Add Dust Cover
Qty:-+

In stock

(Delivery calculated at checkout)

SKU: F300 (110v)
Share:

Why should you choose a forced action mixer over a conventional rotating drum mixer?

Commonly referred to as a resin mixer, resin-bound mixer or pan mixer, because of the frequency that they are used to mix resin bound materials in particular and their mixing ‘pan’ style horizontal static drum, forced action mixers are not just designed for mixing resin bound materials; although a Baron mixer is considered by many to be an essential when working with resin-bound materials.

A Baron forced action mixer has the power and mixing ability to handle practically any mixing job and meet the many demands of site and the professional contactor.

Whether you are mixing resin, concrete, mortar, liquid screed, wet pour rubber, plaster, heritage cob and lime, or something else, a Baron forced action will produce a more thorough and more consistent high-quality finished mix, with greater efficiency and in a shorter time too (often taking half the time to mix the same volume of material as a rotating drum mixer). They have the power, versatility and capability to provide superior mixing agility on more challenging materials like epoxy with granulated rubber or stone as well.

Baron forced action mixers have gears that allow the mixing speed to be varied to best suit the viscosity, composition and make-up of the material to be mixed. The mixer drum itself remains static, while the mixing head with offset arms and paddles rotates, moving more mix and with greater efficiency than conventional rotating drum cement mixers which relies more on gravity to fold the material over and over on itself to mix it. They also have large, robust motors and mixing heads, which are more equipped to handle more challenging mixing jobs.

Baron mixers are also available with a wide range of mixing vessel capacities, ranging from 80 to 300 litres; making them ideal for small to production sized jobs. So, whether you are looking for a small cement mixer or you regularly mix in large volumes, there is a Baron mixer for you! (for reference, the 120-litre capacity E120 and F120 mixers can mix four standard bags of resin aggregates).

The mixer head of all Baron mixers can easily be removed for cleaning and mixer blades, easily interchangeable and to replace. The mixers themselves are powerful and are equipped with ergonomic handles, stable support legs and large rubber wheels, making them easy to move to and around site. They are also equipped with an efficient despatch chute and self-locking protective mixer drum cover with a safety switch for added operator safety. All F-line models feature four mixing arms, whereas the E120 has three mixing arms.

If you want to produce more consistent, high-quality mixing results in a shorter period of time with greater efficiency to your working day too, isn’t it time you used a Baron mixer?

F200-110V
MPN 50042
Motor Power 2.2kW
Motor Voltage 110V-1ph*
Fuse 32 Amp
Max Drum Capacity 200 litres
Max Mixing Capacity 160 litres
Drum Speed 32rpm
Width 780mm
Height 1160mm
Depth 1050mm
Weight 180kg

*Minimum 3kVA continuous or 5kVA intermittent transformerSee our transformer guide for more info.

Should you require clarification on a product before ordering or assistance post ordering, please do not hesitate to contact our sales & support team on 0116 260 2601 (+44 116 260 2601 outside the UK) between 8:30AM and 5.00PM Monday to Friday (excluding Bank and Public Holidays), or via email; [email protected]. Alternatively you can fill out the contact form on our contact us page.

If you have question regarding cancellation, returns or damages please refer to our Delivery & Returns page or again contact us to clarify.

If your query is related to the warranty or repair of a product, again please contact us to discuss your issue or refer to our Service & Repair page.
