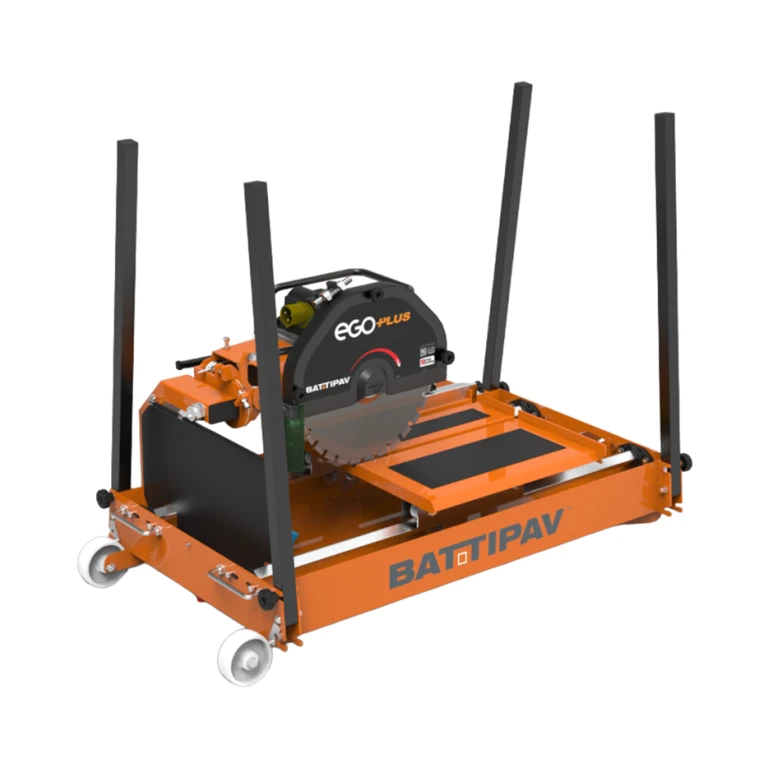

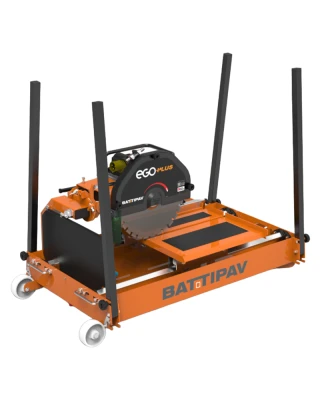

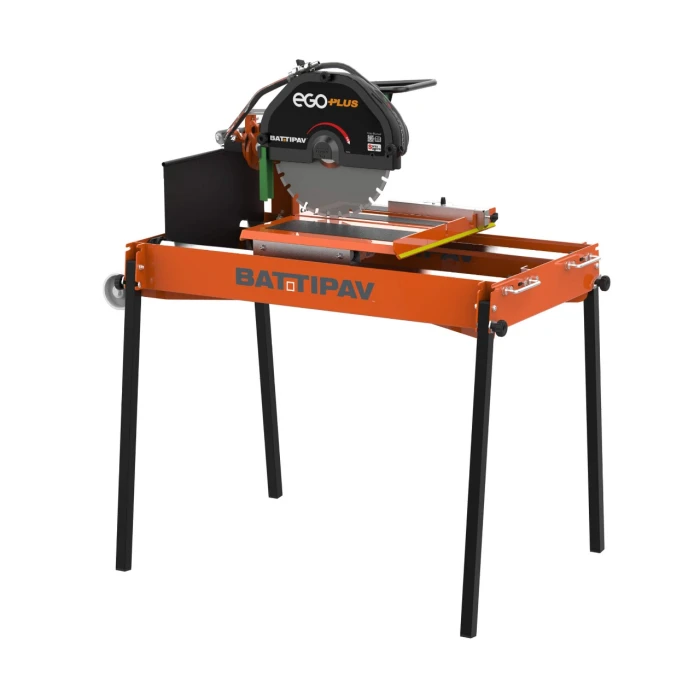

Battipav EGO PLUS 12-14″ Masonry Saw – 110V

Battipav EGO PLUS 12-14″ Masonry Saw – 110V

£838.80
£699.00 Exc. VAT
RRP £1,260.00 Inc. VAT
[hurrytimer id="5275"]

In stock

The EGO PLUS is a powerful (2.2kw) and highly versatile general-purpose masonry saw which is ideally suited for a wide range of intermittent cutting duties on construction sites, including bricks, blocks, pavers, slabs,masonry materials, concrete products, roof tiles, floor tiles, wall tiles, natural stones, porcelain etc.

This compact, lightweight, highly portable yet strong and reliable electrical wet saw is suitable for use with 12”/300m and 14”/350mm diameter diamond blades alike for added versatility, together with a tilting cutting head that permits both straight and angle cuts (up to 45o), that enables mitre cuts to be made with ease, a large and stable table cutting surface that enables tiles 405 x 405mm to be cut diagonally, a generous 800mm cutting length of and an electric Battipav S0 recirculating water pump that facilitates both wet and dry cutting as required.

It is additionally equipped with an adjustable, tilting and variable height spring-loaded cutting head, a 3Hp/2.2Hp single-phase (110V) motor with thermal and amperometrical protection, switch with release coil, overheat protection with manual protection, together with an adjustable goniometer fence and an easy to access sound-insulated blade guard and.

For ease of movement, transport and storage it ideally features convenient carry handles to the front and rear, two 100nn transport wheels and collapsible legs. It also has an incredibly user-friendly design that makes it quick and easy to set up too. For added safety, it is equipped with a convenient cart lock that quickly, easily and securely it in place whilst it is being transported in order to avoid accidental damage or injury.


EGO PLUS (110V 1ph) – 3.0Hp/2.2kW). Max cutting length 800mm. Max depth of cut 80/110mm (45o/90o). 69kg.

Minimum 16A, 3kVA continuous or 5kVA intermittent supply. See our transformer guide for more info.

Battipav are a leading and highly-regarded Italian manufacturer who have specialised in the design and production of tile cutters and wet saws used in construction for over forty years; with Italy considered by many to be the home of natural stones used in construction and stone cutting equipment.

3 Metre 110v Cable 2.5mm² c/w 16A Plug & Socket - FREE
3 Metre 110v Cable 2.5mm² c/w 16A Plug & Socket - FREE
£0.00
£0.00 Exc. VAT
RRP £1,260.00 Inc. VAT
[hurrytimer id="5275"]
Add Silencio Noise-Reducing Diamond Blade?
Add a Granite/Hard Material Diamond Blade?
Add a Multi-Material Diamond Blade?
Add a Ceramic/Porcelain Diamond Blade?

In stock

(Delivery calculated at basket)

SKU: egoplus-110VElectric

The EGO PLUS has a large and stable work table with a sliding anti-tilt carriage equipped with 6 adjustable wheels and 8 ball bearings which makes it not only to slide in and out, it also promotes accurate and precise cutting. The work table/conveyor cart also additionally features a cart locking device which can be quickly manually engaged for safe transportation.

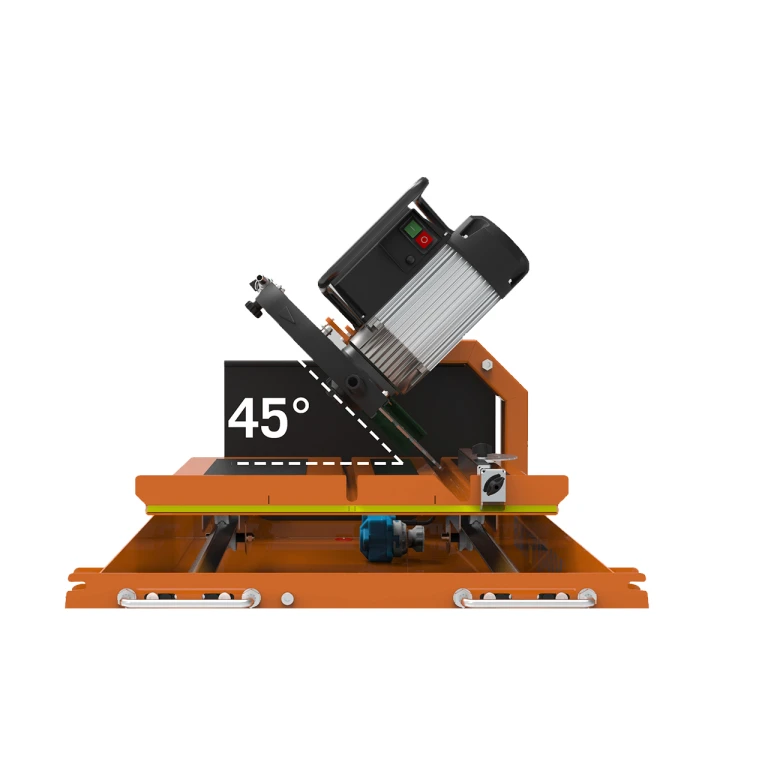

The adjustable cutting head is spring loaded and can be locked quickly and easily into a desired working height, or simply angled for mitre/angle cutting. An easy to access adjusting screw allows the use of 300mm/12” or 350mm/14” diameter blades (with a 25.4mm/1” dia. bore).

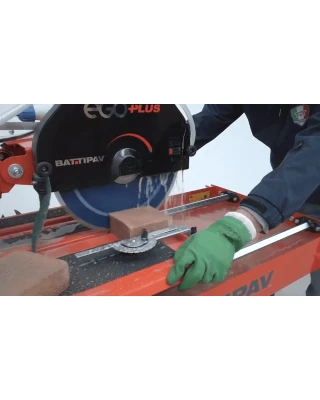

The EGO is equipped with a submersible water pump which enables water to be efficiently recirculated from the bed of the saw for wet cutting applications, The bed/tray of the saw is easy to empty and clean.

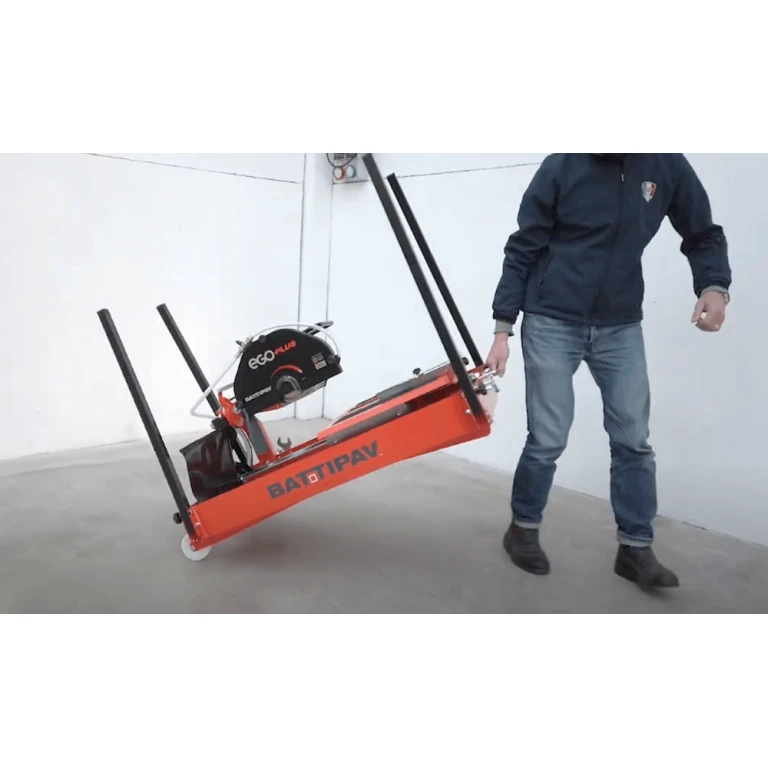

It is highly portable, with two sets of carrying handles, one pair at the front and another at the  rear of the saw, together with 100mm diameter transport wheels for use on hard surfaces and innovative folding legs, which allows easy setup and dismantling after use. The two sets of handles enable two men to either carry the saw or one person to effectively tow/wheel it.

The blade guard of the EGO is easy to access (no tools required), which permits quick and easy blade exchange. The guard is lined on the inside with a layer of insulation foam which reduces the whistling sound made from the cutting blade whilst spinning, ideal when being used in urban and other noise sensitive areas.

Battipav are a well-respected and highly regarded Italian manufacturer of quality construction equipment, who have specialised in the production of tile cutting machines and wet saws for the building sector for over forty years. They are also the largest producer of submersible pumps used in the manufacture of wet saws today. Italy is considered by many to be the home of natural stones (granite, marble etc) and Italian equipment manufacturers are highly regarded because of their conversancy and experience cutting hard materials and stones used in construction.

EGO PLUS
MPN 8000J/A
Motor Power 3.0Hp/2.2kW
Voltage 110V Electric
Thermic Protection 160°C
Fuse 16A (1-phase)
Minimum Transformer 3kVA Continuous or 5kVA intermittent*
Blade Capacity 12″/300mm or 14″/350mm
Bore Size 1″/25.4mm
Rotational Speed 2800rpm
Maximum Cutting Depth (90º) 80mm / 110mm (12”/300mm / 14”/350mm diameter blade)
Maximum Cutting Depth (45°) 65mm / 80mm (12”/300mm / 14”/350mm diameter blade)
Maximum Cutting Height (2 passes) 125mm
Maximum Material Height 250mm/10″
Maximum Cutting Length 800mm/31.5″
Dimensions (W x H x L) 630 x 1200 x 1120mm
Table Size (W x L) 500 x 450mm
Water Pump Model Battipav S0
Weight 69kg

*See our transformer guide for more info.

Should you require clarification on a product before ordering or assistance post ordering, please do not hesitate to contact our sales & support team on 0116 260 2601 (+44 116 260 2601 outside the UK) between 8:30AM and 5.00PM Monday to Friday (excluding Bank and Public Holidays), or via email; [email protected]. Alternatively you can fill out the contact form on our contact us page.

If you have question regarding cancellation, returns or damages please refer to our Delivery & Returns page or again contact us to clarify.

If your query is related to the warranty or repair of a product, again please contact us to discuss your issue or refer to our Service & Repair page.
