Husqvarna DMS400 Core Drill Motor with Stand – 110V

Husqvarna DMS400 Core Drill Motor with Stand – 110V

£3,066.00
£2,555.00 Exc. VAT
RRP £4,482.00 Inc. VAT

In stock

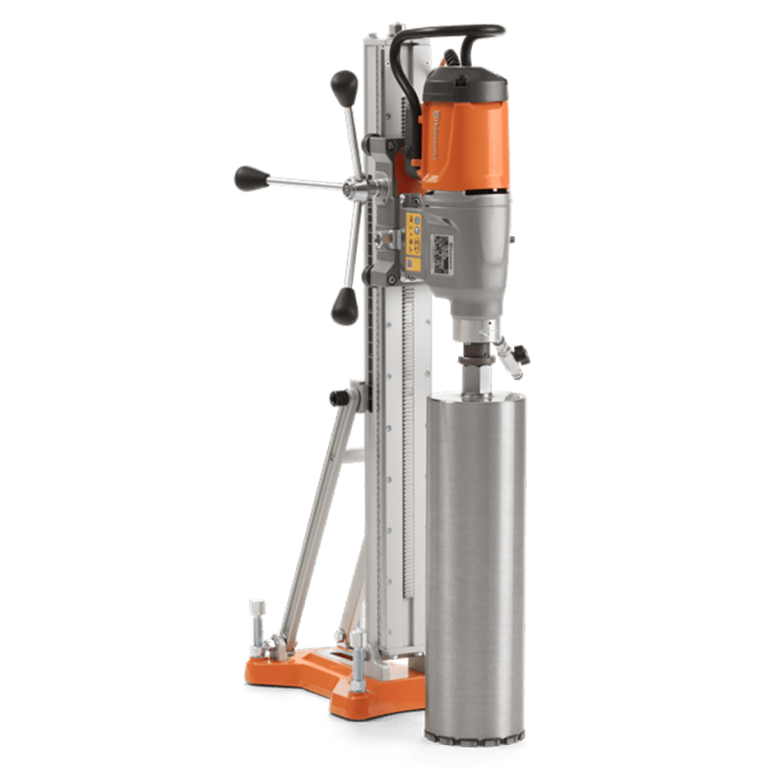

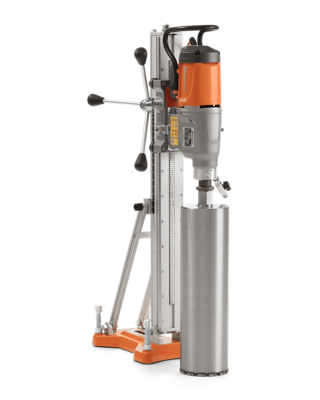

The Husqvarna DMS 400 consists of the robust and powerful (3200W) DM 400 electric core drill motor and DS 500 high performance drill stand. Together these two items combine to produce a professional diamond core drill rig suitable for a multitude of medium to heavy-duty diamond core drilling applications where reliability and high productivity is needed and producing cores from 55 to 350mm diameter.

The DS500 is quick and easy to setup and the DM400 motor simple and easy to affix. As the drill motor and stand motor are separate, this makes them easier to handle, carry and setup (motor 13.5kgs, stand 17.6kgs).

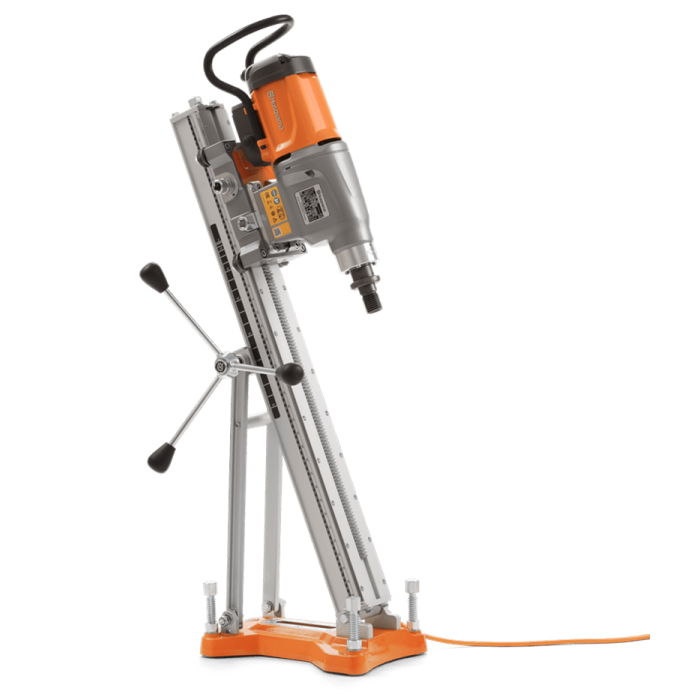

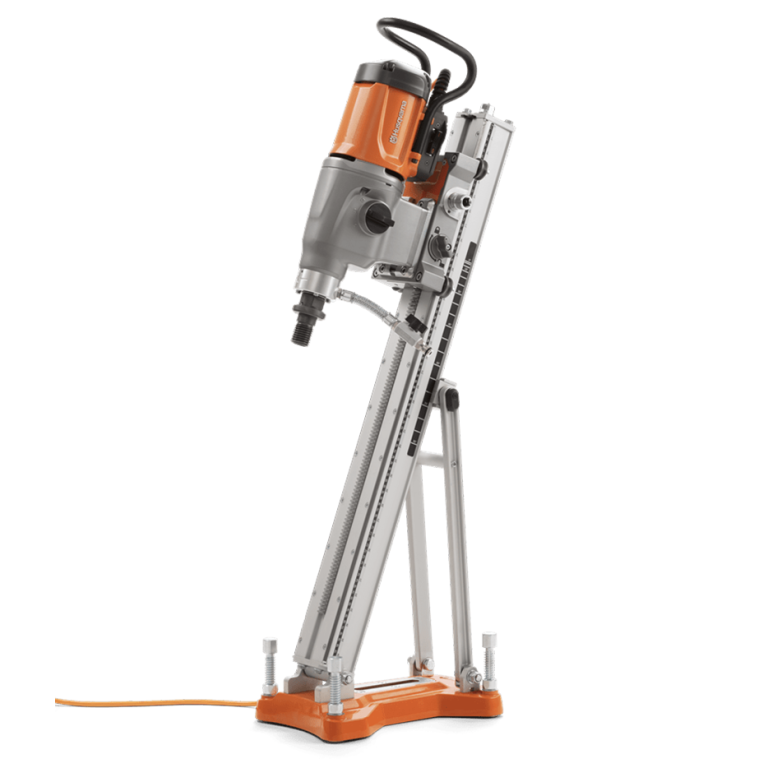

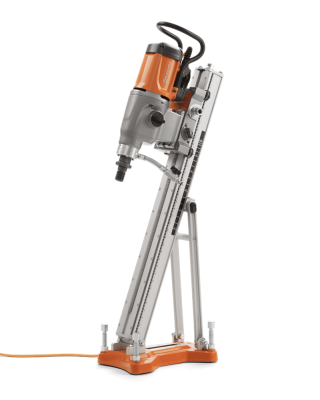

The DS500 is quick and easy to tilt, ideal when angle drilling, whilst the DM400 motor has an 1¼” UNC male fitting.

The DMS400 is available in 110V 1phase only.


DMS400 (110V 1ph) – (3.2kW). Core range: 55-350mm. 3-speed motor – 420/820/1250rpm (unloaded).
Minimum 3kVA continuous or 5kVA intermittent supply.

See our transformer guide for more information.

£3,066.00
£2,555.00 Exc. VAT
RRP £4,482.00 Inc. VAT
£3,066.00
£2,555.00 Exc. VAT
RRP £4,482.00 Inc. VAT
Add Water Tank or Water Pump
Choose Model
Qty:-+
Add Anchoring Kit
Qty:-+
Add Optional Extra's
DS500 - Wheel Kit
£186.00
£155.00 Exc. VAT
RRP £4,482.00 Inc. VAT
Qty:-
+
DS500 - Wheel Kit
Husqvarna vacuum plate for core drilling
Husqvarna Vacuum Plate for Core Drill Stands
£226.80
£189.00 Exc. VAT
RRP £4,482.00 Inc. VAT
Qty:-
+
Husqvarna Vacuum Plate for Core Drill Stands

(Delivery calculated at checkout)

SKU: DMS400
Share:

The DMS400 is a highly versatile, user-friendly and productive diamond drilling system, ideal for medium to heavy-duty and more demanding applications.

This robust, high performance drilling system is easy to use and setup, with optimised RPM’s which enables high drilling performance.LED indicators on the drill motor shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance and the highest productivity levels. The quick-release coupling for the drill motor and easy adjustment of the back support angle allow for easy setup and angle drilling alike. It is suitable for vertical, horizontal and angle drilling applications.

The strong and robust DS500 drill stand column is suitable for professional use. It features a two-speed carriage with single and double gearing which provides the operator with the ability to select the optimum cranking speed to suit each individual application and a removable depth feed/crank handle which when removed doubles up as a tool kit which can be used to adjust the angle of the drill column and base plate level bolts. The base plate is suitable for use with anchor bolts to fix firmly into position, or can alternatively be used together with the optional vacuum plate and connected to a suitable vacuum pump (like the Husqvarna VP200). An optional wheel kit is also available to assist with the movement of the drill stand to and around the job site.

The drill stand column has a clear and easy to read graduated scale affixed to it on either side which allows the operator to clearly and easily identify the depth their current drilling depth. It also has a similar scale on it at the rear which clearly indicates the angle which it is set at, this is particularly beneficial when angle drilling and a spirit bubble to help the operator easily identify if the rig has been setup perpendicular to the work surface. The depth feed/crank handle of the DS500 is simple, quick and easy to remove, and when removed, can be used as the tool kit to adjust the stand angle and base plate level bolts.

The powerful, high performance 3-speed DM400 electric motor is built from precise and well-engineered components throughout, making it ideally suited for professional work and contract use. It has an aluminium housing and a protective handle, which is designed to both protect the motor casing and make carrying easier. It is also equipped with Husqvarna Fleet Services™ which can provide users with information about the motor health by preventing further damage if there is a servicing or repair issue.

  DMS400 110V
MPN 970526401
Voltage 110V Electric
Fuse 32A (1-phase)
Minimum Transformer 3kVA Continuous or 5kVA Intermittent*
Motor Power 3.2kW
Core Range 55-350mm
Connection 1 ¼” UNC
Spindle Speeds (Unloaded) 420/820/1250rpm
Maximum Column Travel 706mm
Column Height 1050mm
Weight 31.1kg
Our Price (Exc.VAT) £2,555.00

*See our transformer guide for more information
