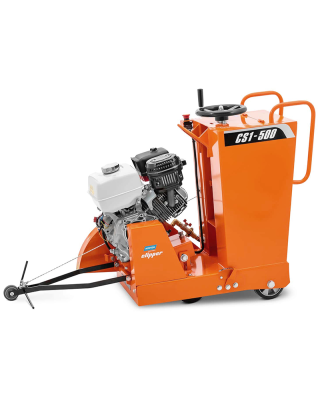

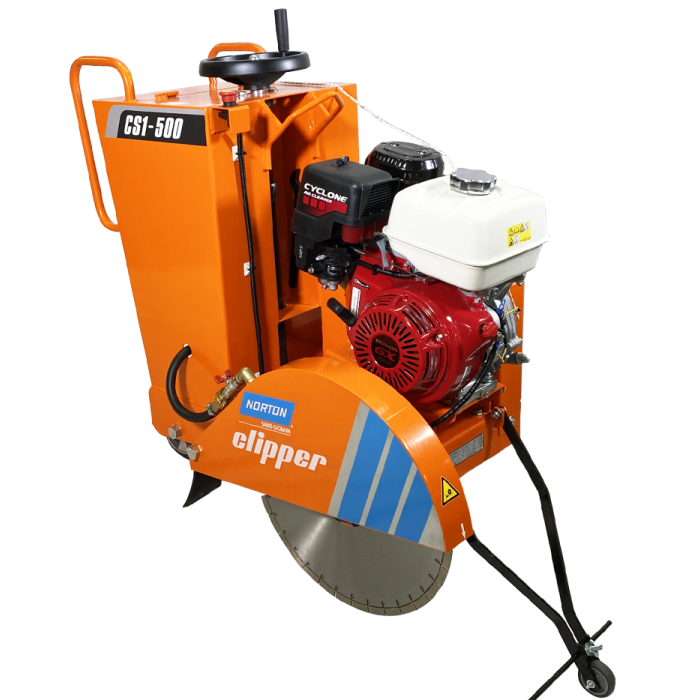

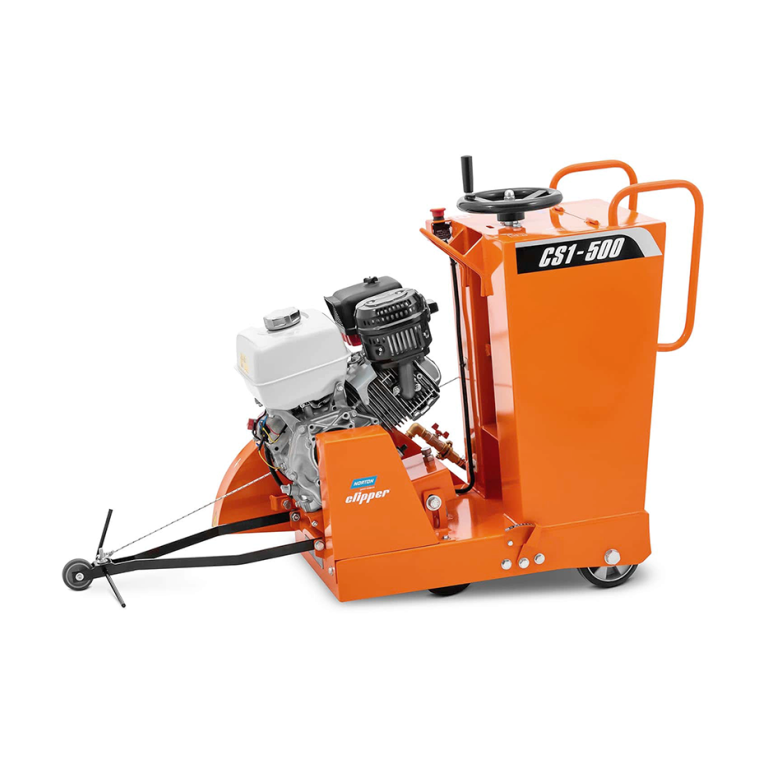

The Clipper CS1 500 is a strong, powerful, precise and reliable floor saw with an impressive 190cm maximum cutting depth and is the ideal saw for a wide variety of cutting applications on both concrete and asphalt surfaces alike.

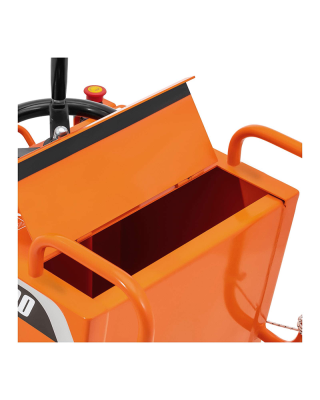

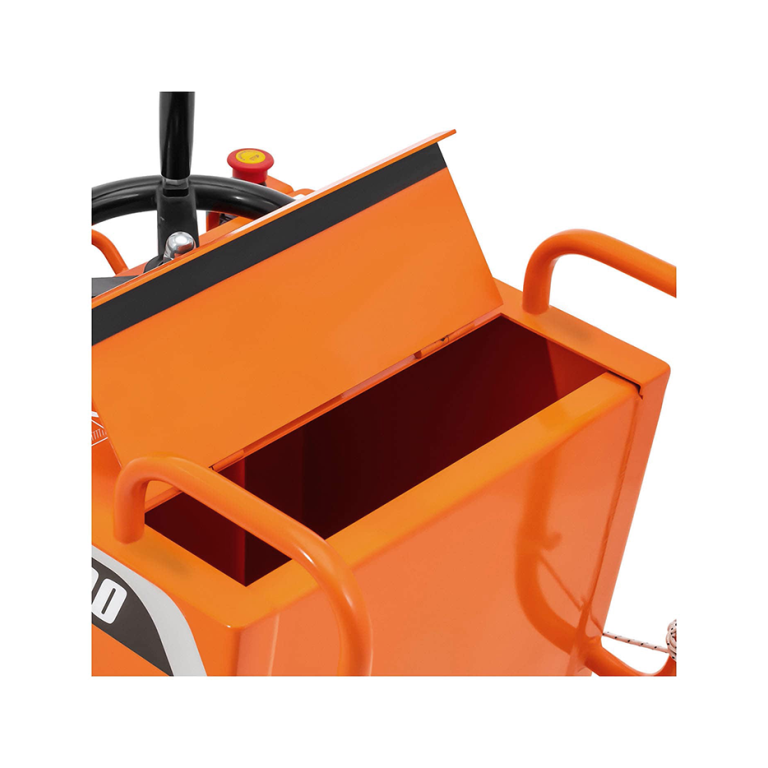

It features a large 70 litre capacity integral metal water tank, making it perfect for longer, more continuous cuts and use in areas with limited or no access to a mains water supply.

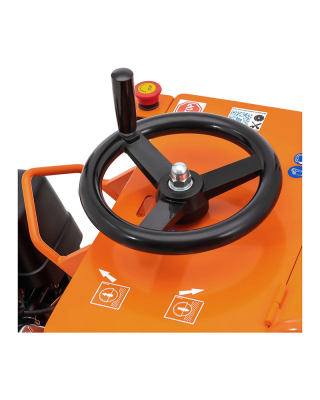

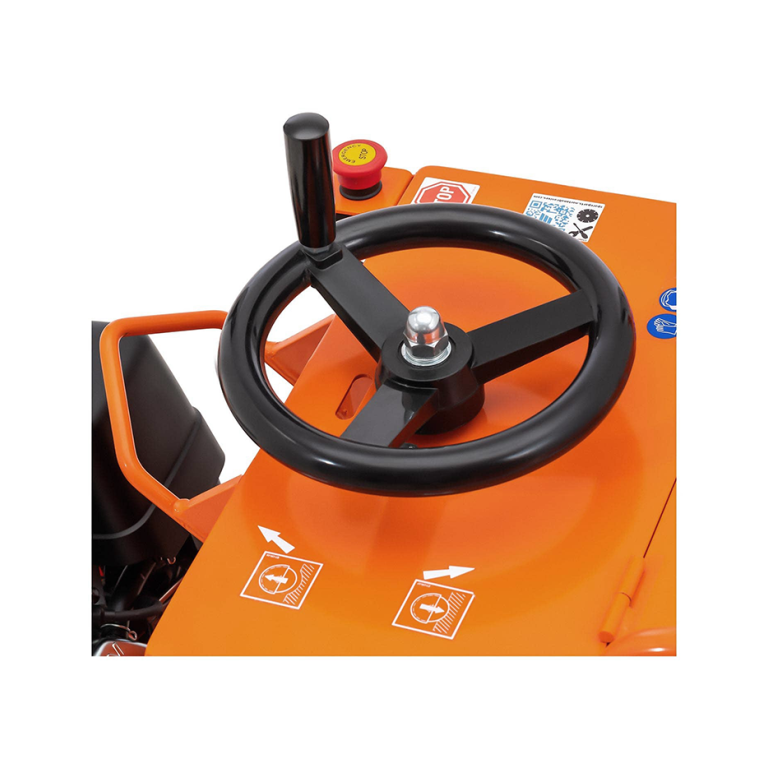

The CS1500 has a high quality, heavy-duty jig welded steel frame, a precision blade shaft with lubricated pillow block bearings, together with a rigid front pointer assembly which in combination ensure a high degree of cutting accuracy. Other product refinements include a cutting depth indicator, handwheel controlled depth adjustment, park brake system, strong lift hook and emergency push stop button.
CS1 500 (Honda petrol) –(13.0Hp/9.7kW). 450/500mm blade capacity. 165/190mm maximum depth of cut. 140kg.
Why not add to your purchase a Clipper 20” Pro Beton diamond blade for the concessionary low price
The Clipper CS1 500 is easy to manoeuvre and use. Cutting depth control is simple, convenient and easy to both set, control and monitor.
The engine of the CS1 is mounted on quality anti-vibration shock mounts.
The water flow system of the saw is robustly made and can allow for quick connection to a mains supply if required.
CS1 500
MPN
70184632006
Engine
Honda GX390 Petrol
Gross Power
13.0Hp/9.7kW
Nett Power
11.7Hp/8.7Hp
Blade Capacity
450mm/18″ – 500mm/20″
Bore Size
25.4mm/1″
Maximum Cutting Depth
165mm – 190mm
Side of Cut
Right hand side only
Vibration Level
4.22m/sec²
Dimensions (W x H x L)
580 x 990 x 1050mm
Water Tank Capacity
70 Litres
Weight
140kg
Our Price (Exc.VAT)
£2,141.00
