Norton Clipper CSB1 D13 18-20” Self-Propelled Floor Saw – Diesel

Norton Clipper CSB1 D13 18-20” Self-Propelled Floor Saw – Diesel

£10,192.80
£8,494.00 Exc. VAT
RRP £16,989.60 Inc. VAT

In stock

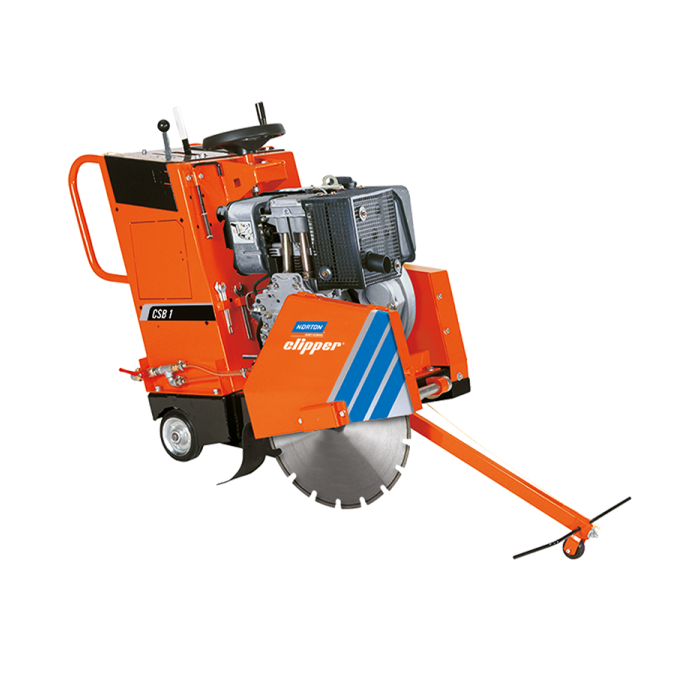

The Clipper CSB1D13 is a heavy-duty self-propelled diesel-powered floor saw which is designed for larger and more demanding floor cutting and road repair jobs in concrete and asphalt surfaces alike.

This strong, dependable and precise cutter has a jig welded steel frame and is euipped with automatic forward propulsion for easier handling and comfort during operation. The manual hydraulic raising/lowering function of the CSB1D13 provides the operator with quick, easy and accurate depth setting with greater control and cutting accuracy, while its sealed high resitance wheels deliver a smooth, straight cut.

The Clipper CSB1 D13 has a 20”/500mm blade capacity and a maximum cutting depth of 190cm. It is powered by a manual start Hatz 1D81Z 9.6kW/13Hp diesel engine and has a generous 40 litre capacity integral water tank that permits wet cutting autonomy in insolated locations. A lifting eye positioned at the centre of gravity on the saw makes it easy to load and transport.


CSB1 D13 (Hatz diesel) – (13Hp/9.6kW). Blade Capacity 450/500mm. Max depth of cut 165/190mm. 255kg.

An optional 600mm blade guard kit is also available for use with the Clipper CSB1D13, transforming it from a 20” self-propelled diesel floor saw, to a 24” self-propelled diesel floor saw.

Add a Concrete Diamond Blade?
Qty:-+
Add a Asphalt Diamond Blade?
Qty:-+
Add a Multi-Material Diamond Blade?
Qty:-+

In stock

(Delivery calculated at checkout)

SKU: CSB1-D13
Share:
CSB1 D13
MPN 70184613925
Engine Hatz 1D81 Z Diesel
Gross Power 13Hp/9.6kW
Starter Type Manual (Crank)
Propulsion Self-Propelled
Blade Capacity 450mm/18″ – 500mm/20″
Bore Size 25.4mm/1″
Maximum Cutting Depth 165mm – 190mm
Side of Cut Right hand side only
Blade Raise & Lower Manual hydraulic
Vibration Level 5.08m/sec²
Dimensions (W x H x L) 600 x 1040 x 1200mm
Sound Power / Pressure Level 114dB(A) / 101dB(A)
Weight 255kg
