Norton Clipper CS451 E 14-18” Floor Saw – 415V

Norton Clipper CS451 E 14-18” Floor Saw – 415V

£3,381.60
£2,818.00 Exc. VAT
RRP £5,804.40 Inc. VAT

In stock

The Clipper CS451 E is a fully electric powered version (415V 3 phase) of this highly popular, low vibration, class leading floor saw.

It is well-balanced, easy to manoeuvre and extremely user-friendly. Being electrically powered, it has a lower operating noise, does not exhaust hazardous fumes like its petrol or diesel powered counterparts and is therefore ideal for use indoors, confined spaces and in noise sensitive areas.

The CS451E is easy to use, control and manoeuvre. Product refinements include an easy to read depth gauge and parking brake.

The CS 451 is available in a choice of two petrol engines (Kohler or Honda), diesel or 3-phase electric.


CS451 E (415V Electric (3 phase)) – (7.5Hp/5.5kW). 350/450mm blade capacity. 125/170mm maximum depth of cut. 105kg.

*Fuse/Generator 16A/14kVA required.

(Delivery calculated at checkout)

SKU: CS451-E
Share:

The CS451 E can be used with 14”/350mm, 16”/400mm and 18”/450mm diameter diamond blades, and used to cut a wide variety of materials, including reinforced concrete, concrete, asphalt over concrete, asphalt etc.

The CS451E has been tested according to the latest European Standard, EN12096/EN13862.

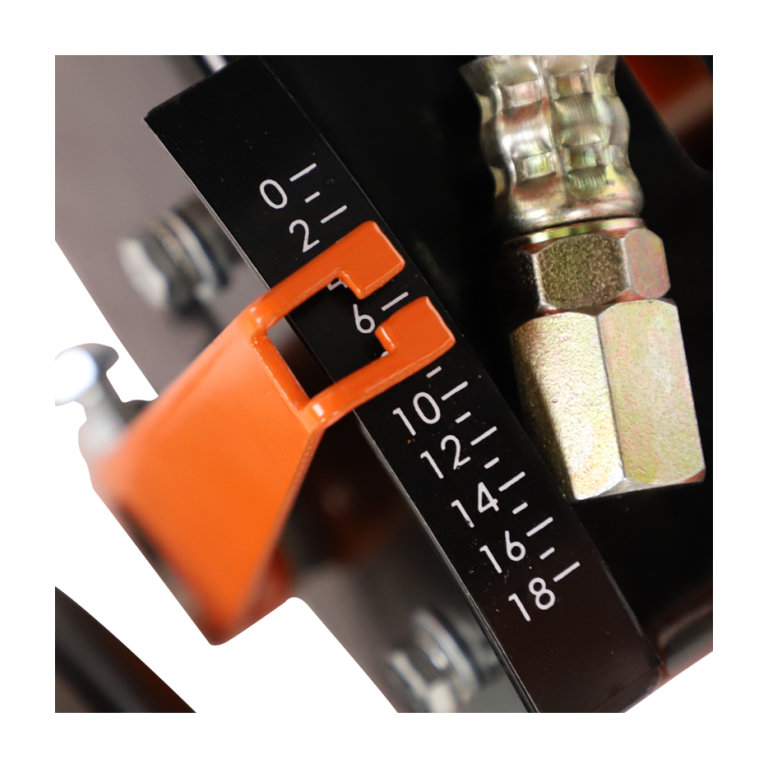

The vibration handlebar can quickly and easily be adjusted to a comfortable working height to suit the individual operator’s personal requirements. Depth control is easy too, thanks to the frame mounted winding handle at the top of the saw, convenient and in close proximity to the operator. This allows fine control of the desired cutting depth, whilst the highly visible and easy to read depth cutting gauge positioned near ground level provides the user with an easily identifiable understanding of the depth that they are cutting at. A locking device can be easily engaged once the desired cutting depth is achieved to prevent the cutting depth exceeding that required.

Three spanners necessary to operate and carry out general maintenance of the saw (change blades etc) are provided and mounted on the dashboard area between the winding handle and main push handle of the saw, for quick and easy access by the operator.

The CS451-E  is supplied with a robust 25 litre high capacity polyurethane water tank permitting wet cutting in remote locations. Alternatively, the water tank can be easily bypassed and a hose connected directly onto the blade guard itself, alleviating the need for constant stops to refill the water tank.

Following the line to be cut with a CS451E is easy too. The saw has an adjustable front pointer cutting guide which projects out from the front of the saw, together with an additional line of sight indicator affixed to the top of the blade guard, either of which the operator can use to ensure that they are cutting along the line of cut which needs to be followed.



CS451 E
MPN 70184601973
Motor 415V Electric (3 phase)
Gross Power 7.5Hp/5.5kW
Fuse/Generator 16A/14kVA
Blade Capacity 350mm/14″ – 450mm/18″
Bore Size 25.4mm/1″
Maximum Cutting Depth 125mm – 170mm
Side of Cut Right hand side only
Vibration Level <2.50m/sec²
Dimensions (W x H x L) 538 x 1040 x 1180mm
Water Tank Capacity 25 Litres
Weight 105kg
