Husqvarna FS7000DL 48-60” Self-Propelled Floor Saw – 74Hp Diesel

Contact For Availability

Husqvarna FS7000DL 48-60” Self-Propelled Floor Saw – 74Hp Diesel

POA
POA

Contact For Availability

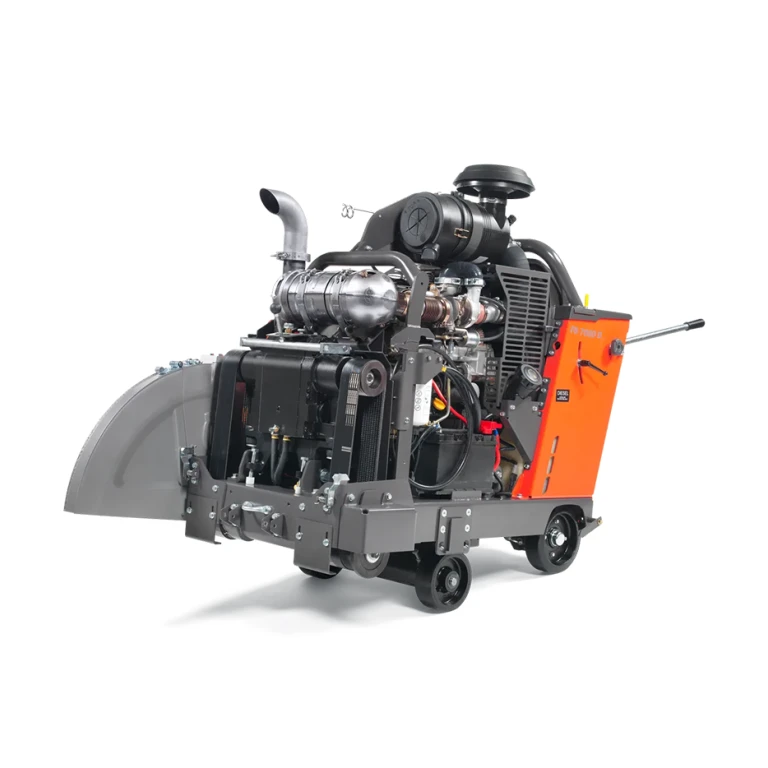

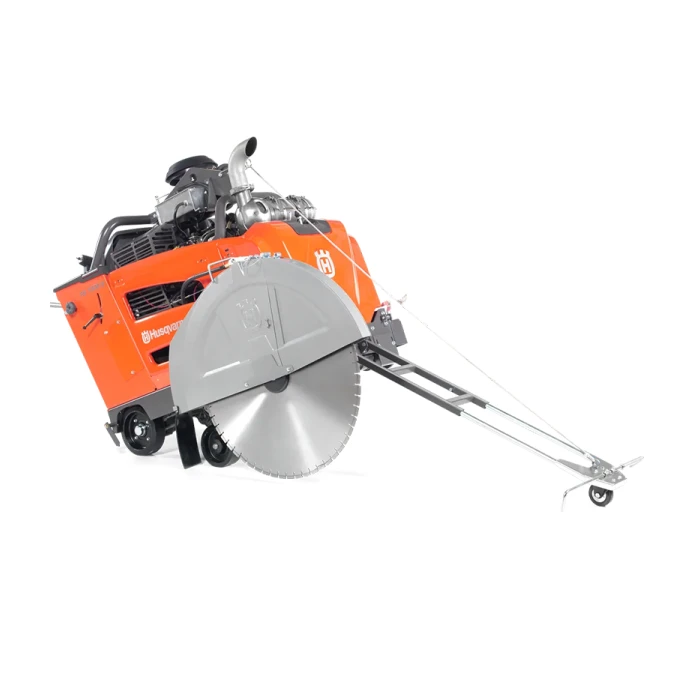

The Husqvarna FS7000DL is a powerful and fully self-propelled professional walk-behind floor saw which is powered by a mighty low-emission 74Hp/50.4kW Deutz turbo diesel engine (compliant with Tier 4 and Stage V regulations). It is designed for deep-sawing applications in the toughest conditions.

This high-production saw is ideal for the more demanding cutting applications, like highway road work and airport runway repairs, as well as other similar sawing jobs that require fast, efficient and deep sawing of concrete and asphalt surfaces, with high-output levels.

It is available with a three speed drive, with the option of a 48”/1200mm or 60”/1500mm interchangeable blade guard.

The Husqvarna FS 7000 DL has a service-friendly design and is equipped with handlebars that are adjustable to suit the operator’s personal preference and developed to be highly-manoeuvrable with low-vibrations to reduce operator fatigue.

It features an intuitive and user-friendly control panel which includes a digital monitor and has all the important functional controls of the saw within fingertip reach. The saw is additionally equipped with an Electronic Tracking Assistance mode, which makes straight cuts easier to make, thereby increasing productivity output without extensive strain on the operator.

The FS7000DL is suitable for both contractor and rental use alike.


FS7000DL (Deutz Diesel)  (74Hp/50.5kW). 1200-1500mm blade capacity. 623mm maximum depth of cut. 1120kg.

Standard model options available: 1200mm 3-Speed and 1500mm 3-Speed.

Optional extras available for the FS7000DL include: interchangeable slip-on blade guards, dual light kit, 5th wheel, weights and a water pump.

Choose a Model
FS7000DL 48"/1200mm - 3 Speed
£0.00
£0.00 Exc. VAT
Qty:-
+
FS7000DL 60"/1500mm - 3 Speed
£0.00
£0.00 Exc. VAT
Qty:-
+

Contact For Availability

SKU: FS7000DL
Share:

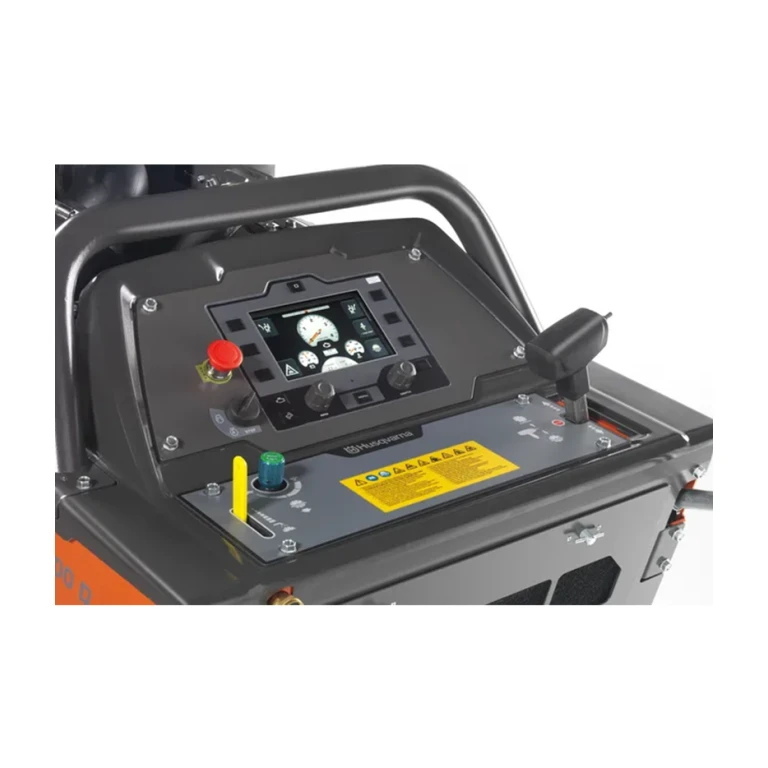

The FS7000DL features an intuitive and ergonomic control panel with all important functions in easy reach of the operator and easy to monitor too, such as blade rpm, forward speed, electronic tracking, depth gauge, pulley ratios, runtime and service minders. The FS7000DL also has a low-maintenance and service-friendly design which includes a IntelliSeal blade shaft system that eliminates the need for daily greasing of the blade shaft bearings.

The electric tracking system of the FS7000DL includes a position indicator on the display which can automatically return to the neutral position and the ability to memorise the last used setting. It is also additionally equipped with a blade clutch as standard that makes it possible to stop the blade when the engine is still running for the safe movement of the saw and others working in close proximity to it. The blade clutch can also be used to disengage the blade when thermal expansion of the concrete causes the blade to pinch in the kerf of the cut too.

This powerful and productive saw has a power system with a right-angle gearbox which transmits high-power to the blade shaft with optimum torque and minimised vibrations.

It is supplied with an adjustable and telescopic pointer what provides the operator with good visibility when cutting and can be folded safely away when in transit.

The interchangeable blade guards have a lockable hinge and are easy to assemble and disassemble using the provided blade wrench.

1200mm 3-Speed 1500mm 3-Speed
MPN 9679592-02 9679592-01
Engine Deutz Diesel Deutz Diesel
Gross Power 74Hp/50.4kW 74Hp/50.4kW
Cylinders 4 4
Engine Cooling Liquid/Air Liquid/Air
Fuel Tank Volume 40 Litres 40 Litres
Blade Guard 48″/1200mm 60″/1500mm
Bore Size 25.4mm/1″ 25.4mm/1″
Maximum Cutting Depth 498mm 623mm
Blade Depth Control Electro Hydraulic Electro Hydraulic
Side of Cut Right and Left Right and Left
Weight 1120kg 1360kg
