Norton Clipper CM1000 Jumbo 36-40″ Block Saw – 415V

Norton Clipper CM1000 Jumbo 36-40″ Block Saw – 415V

£6,544.80
£5,454.00 Exc. VAT
RRP £11,790.00 Inc. VAT

In stock

The Clipper CM 1000 Jumbo is a powerful, heavy-duty block saw designed for cutting large building blocks, concrete, refractories and natural stones.

It conveniently allows the use of both 900mm and 1000mm diameter blades and has the capacity to materials up to 440mm high, 720mm long and which weigh up to an enormous 350kgs. It has a maximum cutting depth of 370/420mm (900/1000mm blade), making it the saw of choice when cutting large blocks.

The CM1000 is the most robust, highest capacity and most durable saw in the Clipper Jumbo range. Despite its heavyweight cutting credentials and capabilities it is still highly portable to and around site, easy to manoeuvre and ease use. Its incorporated ‘plug and play’ water pump connection also makes it easy to maintain and suitable for wet cutting applications.

The CM1000 is available in 415V 3ph electric only. 32A 3-phase supply.


CM 1000 Jumbo (415V 3ph) – (10hp/7.5kW) Max cutting length 720mm. Maximum cutting depth 370/420mm. 420kg.

Add a Norton Clipper Diamond Blade?
Qty:-+

In stock

(Delivery calculated at checkout)

SKU: cm1000e
Share:

The CM 1000 has a large 720 x 800mm work surface which is reinforced and considerably stronger than other saws in the Clipper Jumbo family. This enables it to withstand loads of up to 350kgs, compared to the 60-100kgs maximum payloads with other Jumbo models. It is also designed for use with 900 and 1000mm diameter blades for maximum cutting versatility.

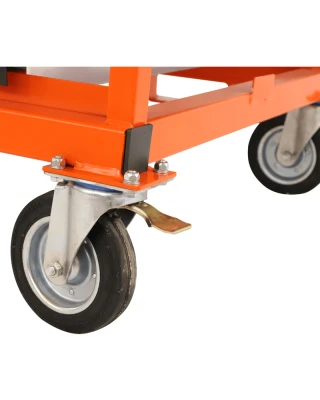

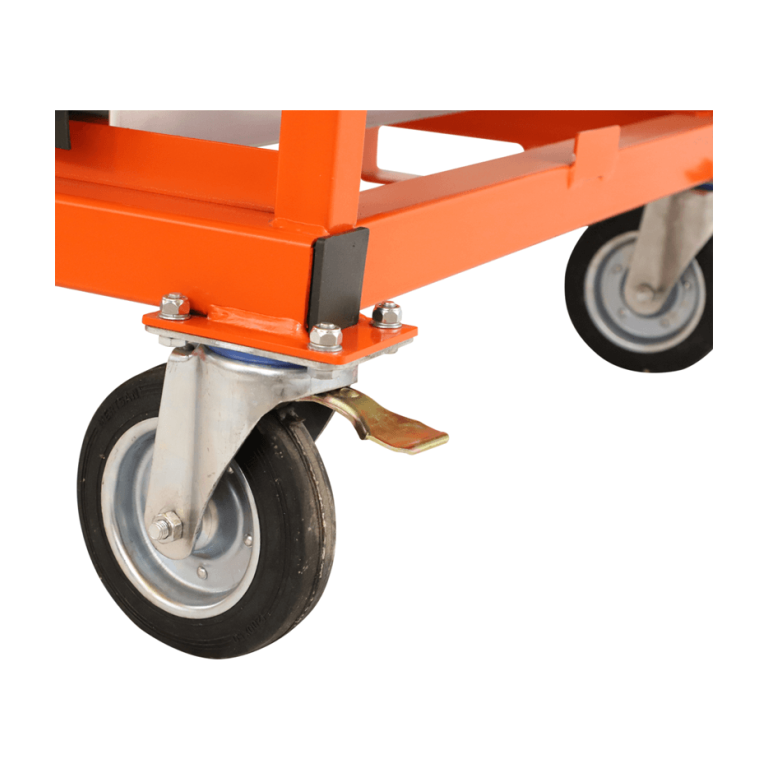

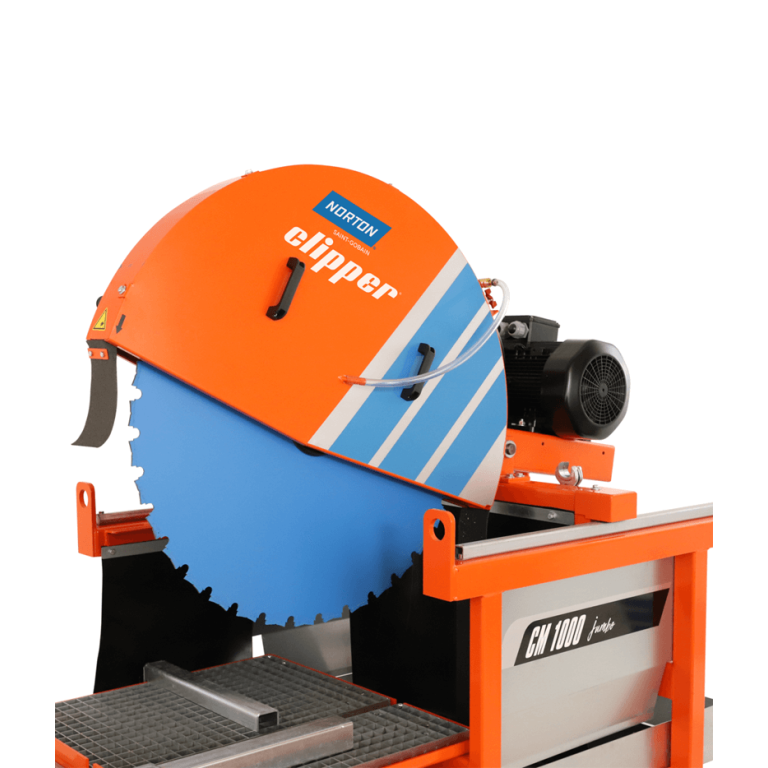

The saw designed for industrial static use, continuous cutting operations as well as site use. Its side mounted handwheel operation makes it both very safe and easy to use. Despite its size, it is surprisingly easy to manoeuvre and transport, with four mounted transport wheels (two of which are lockable), fork lift eyes and multiple lift points. It is also very easy to clean and easy to maintain. Blade changes are also quick, simple and easy to do thanks in part to the easy to access designed blade guard.

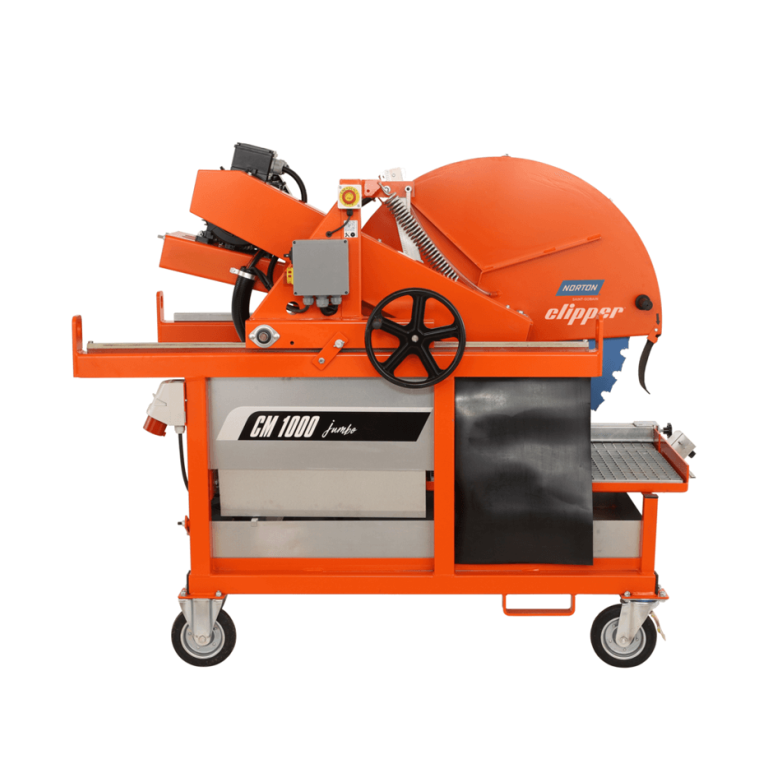

The saw cutting head is controlled by the operator from the side of the machine by a large handwheel. This design allows the cutting head of the saw to be wound clear of the table without causing any obstruction, allowing larger and heavier materials to be safely loaded and/or loaded from overhead if required. The cutting head of the saw is spring loaded, easy to adjust (cutting height) and lock into the desired position of choice. This is particularly beneficial when step cutting larger and dense materials.

The saw has an integral electric water pump and large water tank for recirculating water for wet cutting applications. Access to the water pan for drainage and cleaning is also easy, as is other general routine maintenance. A pull out splash guard located at the front of the saw underneath its table can be easily employed to reduce the amount of splash made when the machine is in use.

  CM 1000 Jumbo
MPN 70184607570
Voltage 415V Electric
Fuse 32A (3-phase)
Motor Power 10.0Hp/7.5kW
Maximum Cutting Length 720mm
Blade Capacity 1000mm
Maximum Cutting Depth 420mm
Maximum Material Height 440mm
Maximum Material Weight 350kg
Bore Size 60mm/2.3″
Table Size 720 x 800mm
Overall Dimensions (L x W x H) 2000 x 1080 x 1700mm
Weight 420kg
HAV Rating <2.5m/s²
Our Price (Exc.VAT) £5,454.00
