Norton Clipper CM501 Major 18-20″ Masonry Saw – Petrol

Norton Clipper CM501 Major 18-20″ Masonry Saw – Petrol

£3,369.60
£2,808.00 Exc. VAT
RRP £6535.20 Inc. VAT

In stock

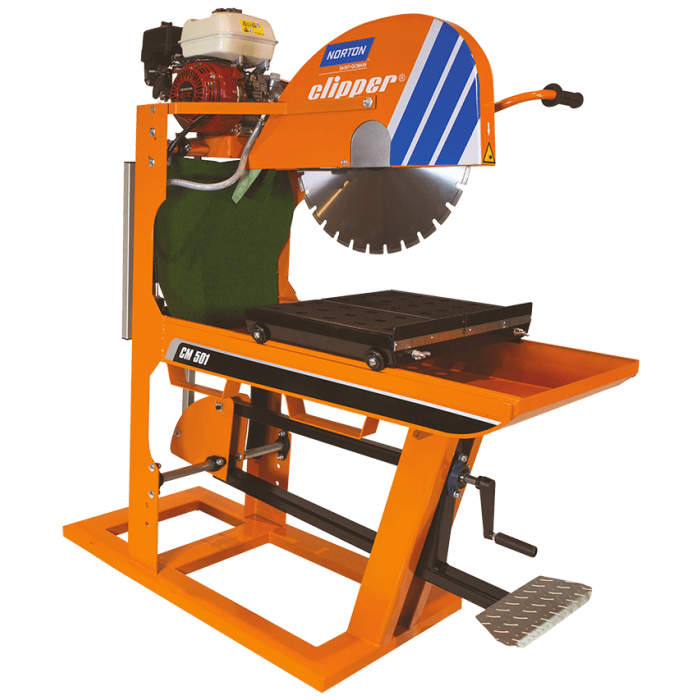

The Clipper CM501 masonry saw has been the original site workhorse since 1937. Not only does it lead its class, it is universally recognised as the industry benchmark for masonry and stone cutting saws, dominating building sites, educational institutions and industrial facilities alike around the world. When people think of brick saw, they invariably not only automatically think ‘Clipper’, they think ‘the Clipper CM501 Major’.

This high-performance masonry and brick cutting saw is ideally suited for cutting a wide range of smaller and medium sized masonry materials, it is also perfect for cutting concrete products, building blocks, natural stones, roof tiles and refractories.

It features both winding handle and foot pedal depth cutting control, which provides the operator with the flexibility of either fixed or step cutting materials, together with a stay level blade guard which provides excellent versatility of the work piece, whatever the elevation of the cutting head for improved operator safety. It is also conveniently equipped with a recirculating mechanical water pump, or can be alternatively direct to a mains water supply, providing users with the option of wet or dry cutting capability as required.

The CM501 3.60.P is powered by a 6.5Hp Honda GX200 petrol engine which makes it fully self-contained and therefore ideally suited for use on virgin sites and in remote locations with no access to a suitable electrical power supply, as well as other well-ventilated areas. The CM501 is also available with a choice of 110V, 230V or 415V electric motor too.


CM501 3.60.P (Honda Petrol) – (6.5Hp/4.8kW). Blade capacity 450/500mm. Max depth of cut 165/195mm. 165kg.

Supplied with a complimentary 20”/500mm dia. Clipper Pro Beton concrete diamond blade (RRP: £632.00 +VAT).

£3,369.60
£2,808.00 Exc. VAT
RRP £6535.20 Inc. VAT
Add a Granite/Hard Material Diamond Blade?
Add a Multi-Material Diamond Blade?
Add Tilting Table?
Add Safety Gripper?
Qty:-+

In stock

(Delivery calculated at checkout)

SKU: CM501-Petrol
Share:

The Clipper CM501 Major is the successor to the highly popular Clipper EDW Major masonry saw, which achieved an iconic status in the construction industry for over 30 years. The Clipper CM 501 still retains many of the self-same features as its predecessor, but with a refreshed and more updated, aesthetically pleasing design.

The CM501 with its more flowing contours and cutting-edge design is however still as equally responsive, quick and easy to use as the Clipper EDW Major; and still as popular and market dominant. Such is the flexibility of the CM501 it is used for an incredibly diverse range of cutting applications, from general site use, cutting refractory products in industrial environments, cutting rock core samples in the some of the most remote and inhospitable locations in the world, to training the next generation of construction workers in educational facilities. It is also the staple of most rental companies too.

It can be used for wet and dry cutting applications alike and is supplied with an integrated recirculating mechanical water pump for wet cutting, or alternatively connected to a suitable dustraction unit (like the optional Clipper CM501 dust hood, extractor and bag) for dry cutting materials. Other optional accessories available for the Clipper CM501 include the SG Safety Gripper, side table extension, an electric hourmeter (for electric models) and tilting table for angle/mitre cutting.

This highly-popular and versatile brick cutting bench saw is additionally equipped with fork lift eyes for ease of movement and transportation.

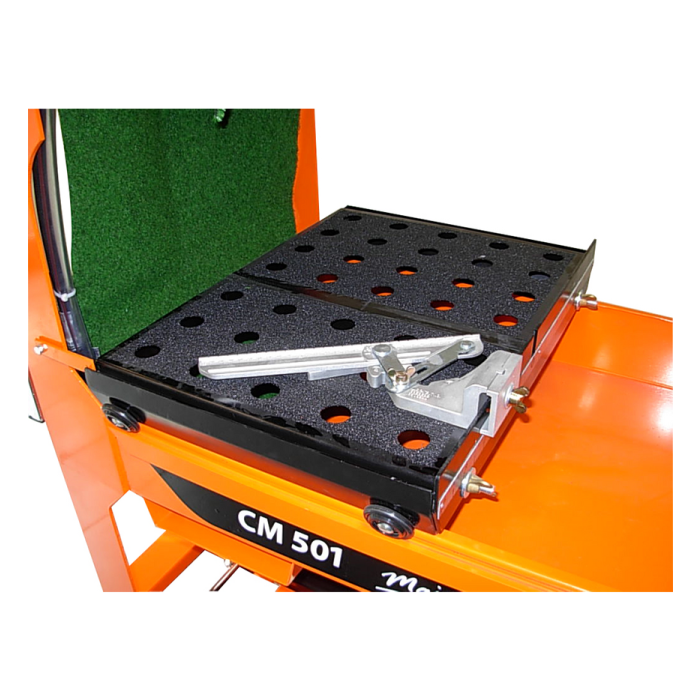

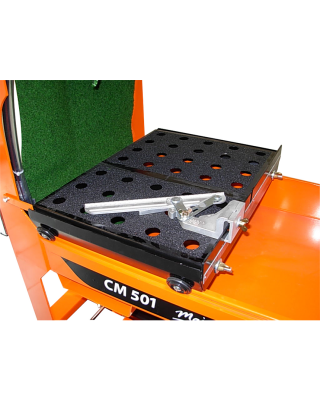

When using a Clipper CM501, the reason for its popularity, success and market dominance for so very long is apparent and clear; the simplicity of its operation combined with the fluid free-flowing movement of its conveyor cart, versatility and accuracy of cut.



CM501 3.60.P
MPN 70184627020
Engine Honda GX200 Petrol
Engine Gross Power 6.5Hp/4.8kW
Blade Capacity 450mm/18″ / 500mm/20″
Maximum Cutting Depth 165mm / 195mm
Maximum Material Height
355mm
Maximum Cutting Length 500mm
Table Size (W x L) 580 x 420mm
Dimensions 610 x 1700 x 1480mm
HAV Rating <2.5m/s²
Dimensions (W x H x L) 610 x 1700 x 1480mm
Weight 165kg
