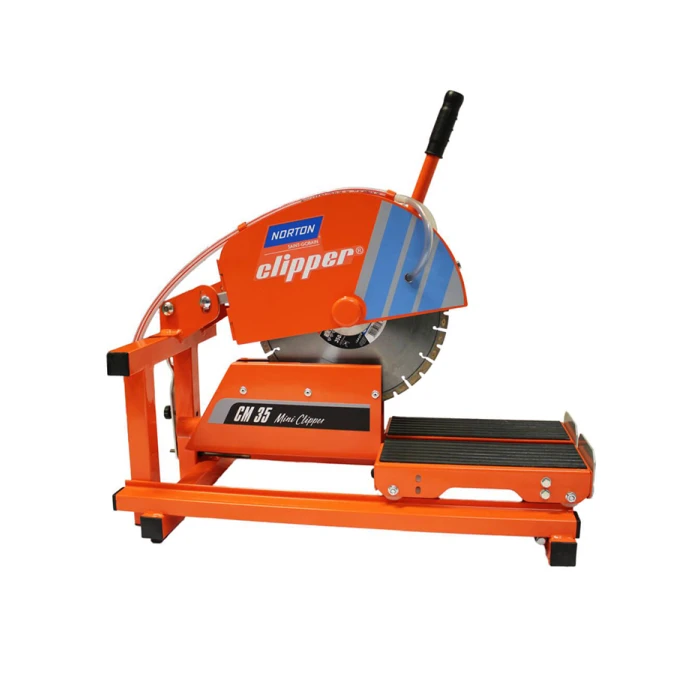

Norton Clipper CM35 14” Mini Clipper - 110V
The CM35 is a compact, highly portable and robust mini masonry saw specifically designed to quickly and efficiently cutting of paving blocks, bricks, roof tiles etc.
In 2004 Norton Clipper launched the Mini Clipper block paviour saw, the first saw of its type specifically designed to cut block pavers. Production ceased in 2011, but due to popular demand, the Mini Clipper is back, in the guise of the new and improved Clipper CM35.
The primary design of the CM 35 is that it is used at ground level where blocks are being, so that the user does not need to change their working position. It can alternatively be bench or work top mounted. Its compact size and lightweight (40kgs) allows it to be easily transported around any job site and used in areas often off-limits to larger saws, like scaffolding. Ideal for intermittent use.
CM35 Mini Clipper (110V 1ph) - (3.0Hp/2.2kW). Max cutting length 340mm. Max depth of cut 125mm. 40kg.
Minimum 32A, 5kVA continuous supply. See our transformer guide for more info.
£1,186.80
£989.00
In stock
SKU
CM35
RRP from £2,096.40 Inc. VAT
Specification
CM35 Mini Clipper | |
MPN | 70184607578 |
Motor Power | 3.0Hp/2.2kW |
Voltage | 110V Electric |
Fuse | 32A (1-phase) |
Minimum Transformer |
5kVA Continuous* |
Blade Capacity | 350mm/14" |
Bore Size | 25.4mm/1" |
Maximum Cutting Depth | 125mm |
Maximum Material Height | 180mm |
Maximum Cutting Length | 340mm |
Table Size (W x L) | 280 x 345mm |
Dimensions (W x H x L) | 286 x 282 x 730mm |
Dust Port Diameter | 40mm |
Weight | 40kg |
HAV Rating | <2.5m/s² |
Our Price (Exc.VAT) | £989.00 |
*See our transformer guide for more info.
Unlike physically larger masonry saws, the Norton CM35 Mini Clipper is designed specifically for its intended use and is purposely compact in size, lighter in weight (only 40kgs), easier to move around the job site, transport, handle and store. It’s design also favours it’s use at ground level, rather than the elevated/standing position often required to use larger saws. It features and integrated dust extractor port which allows easy connection to a suitable dust extractor when dry cutting. Alternatively, the saw can be connected to a suitable water supply and used for wet cutting (please note that the CM35 is not supplied with a water tray or water pump).
The CM35 has a 14”/350mm blade capacity and a generous 5”/125mm depth of cut.
Sturdy and compact
The CM35 is engineered and constructed to the same quality and standards that you would expect from a larger Clipper saw. It’s compact design not only makes it easy to transport and store, it also enables it to be used in smaller, more confined spaces too. Although weighing only 40kgs, its strength of construction has not been compromised.
Pendular cutting head
Maximised blade life and efficient step cutting from the adjustable head gives you an excellent cutting experience.
Wet & dry cutting
Connect the attached water feed to a suitable water supply and wet cut or alternatively simple dry cut. Please note that the CM35 is not supplied with a water tray or water pump. If dry cutting, the CM35 has a 40mm dia. dust port for easy connection to a suitable compatible dust extractor.
Upgradable for your comfort
An optional wheel and kit is available, which allows the saw to be easily dragged and pushed into position next to you whilst you work and move around the job, without the need to keep getting up in an upright position.
The intention is that when laying block paving, the Mini Clipper will be positioned on the floor, next to the block pavers, allowing a more conducive, more productive, more ergonomic, less strenuous means of working and cutting. Alternatively, the saw can simply be worktop or bench mounted, whichever your personal preference.
Choose the right blade
The CM35 does not include a blade, unless you choose it from the additional drop-down menu. We recommend a 14" / 350mm blade Norton Clipper's Universal range. The Pro Universal Laser is an excellent balance of value for money and performance, whilst the Extreme Universal Laser would last longer due to its optimised configuration of diamond segments. If you are working in noise-sensitive environments, then we would highly recommend the Clipper Extreme Universal Silencio, which is engineered to significantly reduce operating noise levels when cutting.
