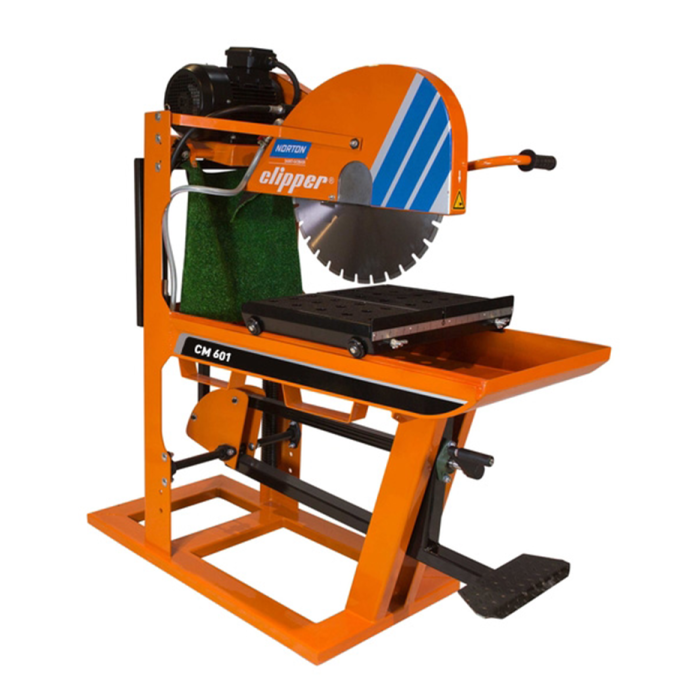

Norton Clipper CM601 Major 20-24″ Masonry Saw – 415V

Norton Clipper CM601 Major 20-24″ Masonry Saw – 415V

£3,454.00 Exc. VAT
RRP £7,101.60 Inc. VAT

In stock

The Clipper CM601 masonry saw has all the same features, characteristics and benefits of the market leading Clipper CM501 Major masonry saw (18/20”), but with an enlarged blade capacity (20/24”) and increased maximum cutting depth (up to 10”/245mm).

It is designed for the intermittent and occasional cutting of larger, yet still manageable and lightweight masonry materials, concrete products etc; including building blocks, terracotta blocks, air bricks, selected refractories etc. It is not designed or suitable for continuous cutting operations, production use or for cutting larger, heavier and more dense materials.

The CM601 features both winding handle and foot pedal depth cutting control, which provides the operator with the flexibility of either fixed or step cutting materials, together with a stay level blade guard which provides excellent versatility of the work piece, whatever the elevation of the cutting head for improved operator safety. It is also conveniently equipped with a recirculating electric water pump, or can be alternatively direct to a mains water supply, providing users with the option of wet or dry cutting capability as required.

It is available in 415V electric only and is ideally suited for use in commercial operations, indoors, as well as use in more noise-sensitive and poorly ventilated areas.

CM601 5.55.3 (415V 3ph) – (5.5Hp/4.0Kw). Blade capacity 500/600mm. Max depth of cut 195/245mm. 168kg. 16A 3-phase supply.

Why not add to your purchase a Clipper 20” Pro Beton diamond blade (RRP: £632.00 +VAT) for just £125.00 + VAT?

£3,454.00 Exc. VAT
RRP £7,101.60 Inc. VAT
Add a Granite/Hard Material Diamond Blade?
Add a Multi-Material Diamond Blade?
Add Tilting Table?
Add Safety Gripper?

In stock

(Delivery calculated at checkout)

SKU: CM601

The Clipper CM601 Major is the same as the CM501 in design, but is equipped with an enlarged blade guard which makes it possible to use with 20 and 24” diameter diamond blades (CM501 maximum blade capacity 20”).

The CM601 with its more flowing contours and cutting-edge design is however still as equally responsive, quick and easy to use as the Clipper EDW Major and the Clipper CM501. Given that it is only available in 415V (3 phase) electric, it is most commonly used and found in industrial operations in a fixed and static position.

It can be used for wet and dry cutting applications alike and is supplied with an integrated recirculating electric water pump for wet cutting, or alternatively connected to a suitable dustraction unit (like the optional Clipper CM601 dust hood, extractor and bag) for dry cutting materials. Other optional accessories available for the Clipper CM601 include the SG Safety Gripper, side table extension, an electric hourmeter (for electric models) and tilting table for angle/mitre cutting.

This highly-popular and versatile brick cutting bench saw is additionally equipped with fork lift eyes for ease of movement and transportation.

When using a Clipper CM601, the reason for its popularity, success and market dominance for so very long is apparent and clear; the simplicity of its operation combined with the fluid free-flowing movement of its conveyor cart, versatility and accuracy of cut.

  • Winding handle and foot pedal head adjustment
  • Stay level blade guard
  • Fork lift eyes for ease of movement
  • Built in recirculating water pump for wet cutting applications
  • Friction resistant tilted conveyor wheels for increased cutting accuracy
CM501 5.55.3
MPN 70184607577
Motor Power 5.5Hp/4.0kW
Voltage 415V Electric
Fuse 16A (3-phase)
Blade Capacity 500mm/20″ / 600mm/24″
Maximum Cutting Depth 195mm / 245mm
Maximum Material Height 355mm
Maximum Cutting Length 500mm
Table Size (W x L) 580 x 420mm
Dimensions (W x H x L) 610 x 1580 x 1480mm
HAV rating <2.5m/s²
Weight 165kg
