Husqvarna TS400F 14-16″ Masonry Saw – 110V

Husqvarna TS400F 14-16″ Masonry Saw – 110V

£1,296.00
£1,080.00 Exc. VAT
RRP £1,846.80 Inc. VAT

In stock

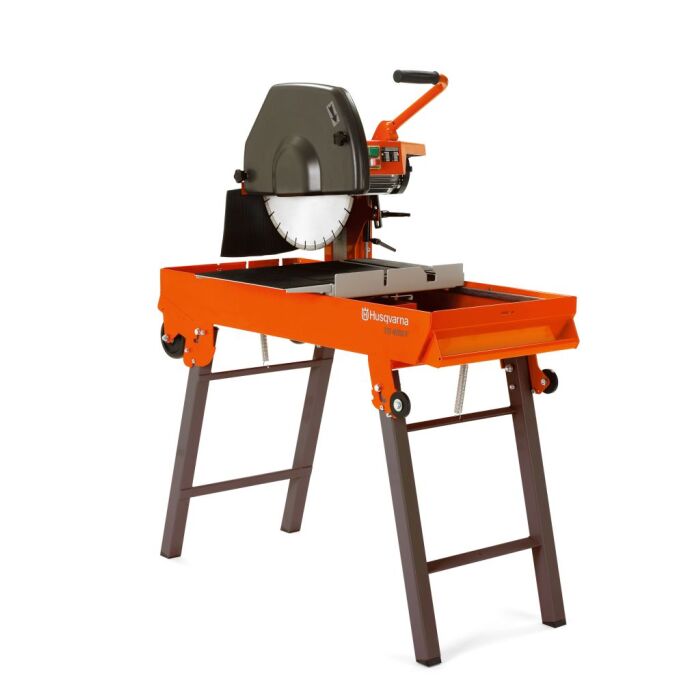

The Husqvarna TS 400 F is a sturdy, simple and efficient, highly portable and highly versatile universal masonry saw with a high cutting capacity.

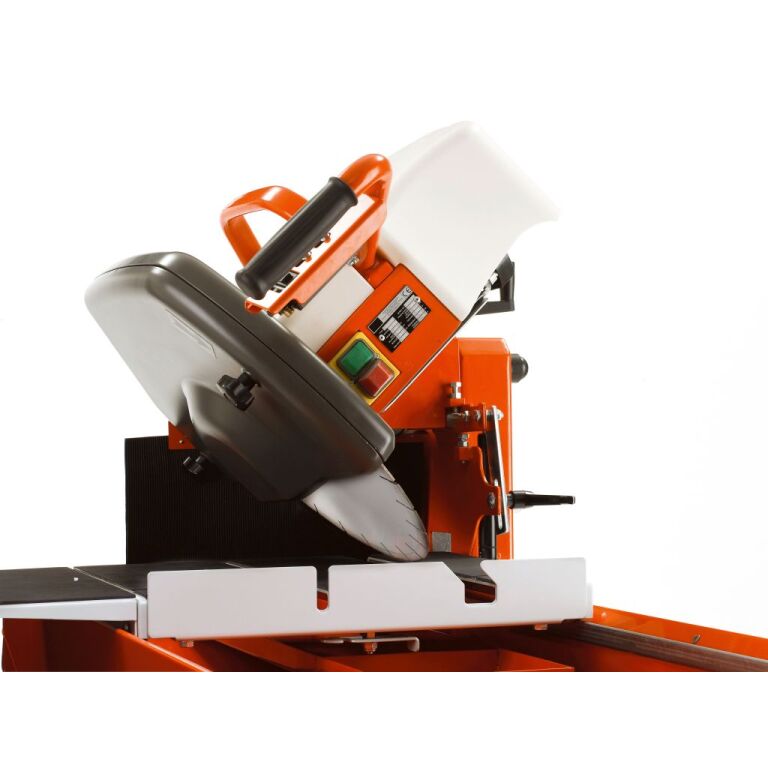

It is equipped with a cutting head which can either be used in a fixed 90° position to produce straight cuts, or simply angled to produce bevel cuts up to 45° with simplicity and ease.

The TS400 is suitable for cutting a wide variety of bricks and blocks used in construction, together with other similar smaller masonry materials and concrete products too.

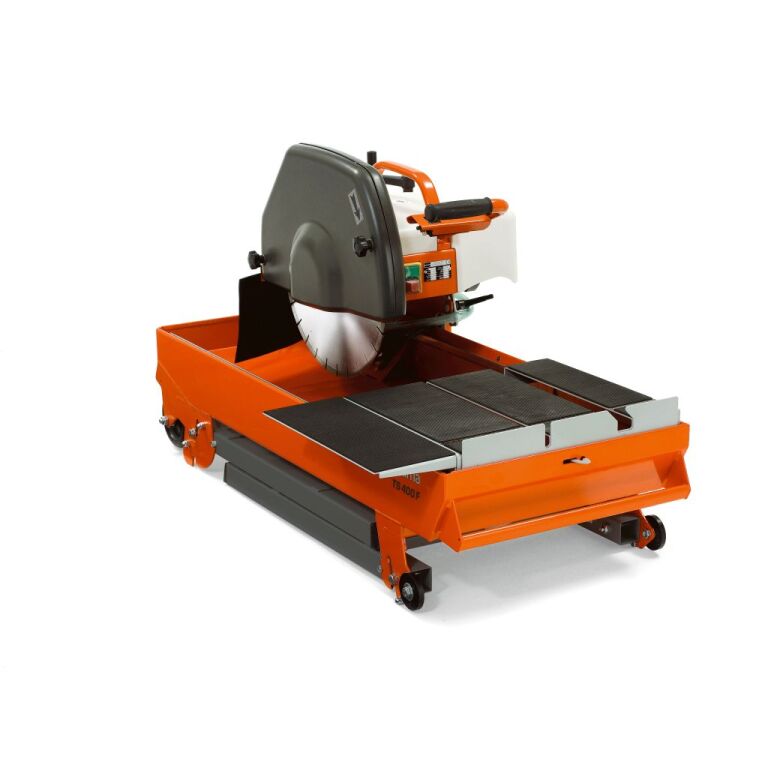

It has a one-piece, sturdy metal frame and semi-automatic legs and innovative design which enables just one man to move and setup the saw. Carry handles positioned at the front and rear of the saw enable it to be carried if required, whilst its large rear wheels easy to wheel into position and two smaller front wheels slide in/out of a vehicle.


TS400F (110V 1ph) – (2.0Hp/1.5kW) Max cutting length 700mm. Max depth of cut 125mm.

Minimum 32A, 3kVA continuous or 5kVA intermittent supplySee our transformer guide for more info.

The TS400F is supplied with a 16”/400mm dia. Husqvarna Elite Cut GS50S general purpose diamond blade.

(Delivery calculated at checkout)

SKU: TS400F
Share:

The TS400 is equipped with a high quality integral recirculating electric water pump for wet cutting applications.

A number of factors are key to accurate cutting. The 16” Husqvarna Elite Cut GS50S blade supplied with the TS400 is a premium grade general purpose blade which is designed to cut a wide range of medium-hard materials, like bricks, concrete etc. The blade also unusually has a special steel core which reduces operating noise levels by 50% compared to regular blades, making it ideal for use in urban and other noise sensitive areas. The machine itself has a sturdy and robust one-piece frame, which provides a stable working platform.

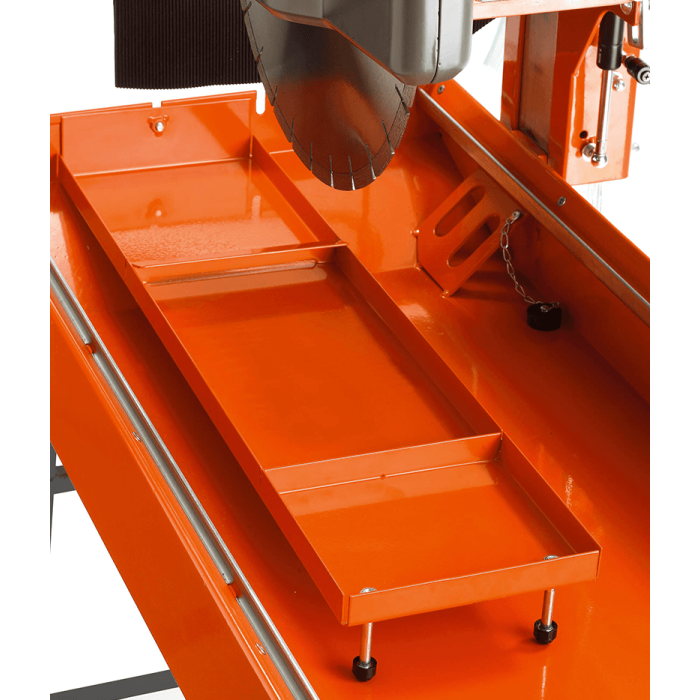

The conveyor cart/trolley runs on metal rails within the bed/tray of the saw. This provides extra rigidity to the overall saw, but also protects the rail from external impact and damage, and thus helps extend the product life. The motor is sturdy and reliable too and designed to provide a long service life. The bed/tray is also fitted with a removable sediment collection tray which enables efficient slurry handling and helps extend the life of the integral. It can also be quickly and easily removed for cleaning purposes.

TS 400 F
MPN 965 14 81-07
Motor power 2.0Hp/1.5kW
Voltage 110V Electric
Fuse 32A (1-phase)
Minimum Transformer 3kVA Continuous or 5kVA intermittent*
Blade Capacity 350mm/14″ / 400mm/16″
Bore Size 25.4mm/1”
Maximum Cutting Depth (90°) 100mm / 125mm
Maximum Cutting Height (45°) 50mm / 65mm
Maximum Cutting Length 700mm
Dimensions (W x H x L) 600 x 1330 x 1120mm
Table Size (W x L) 600 x 400mm
Weight 96kg

*See our transformer guide for more info.
