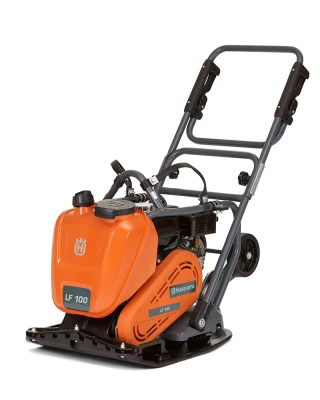

Husqvarna 20” LF 100 LAT Plate Compactor (17kN) – Petrol

Contact For Availability

Husqvarna 20” LF 100 LAT Plate Compactor (17kN) – Petrol

£1,383.00 Exc. VAT
RRP £2,388.00 Inc. VAT

Contact For Availability

The Husqvarna LF 100 LAT is a powerful, fast-operating heavyweight professional plate compactor with optimised travel speeds and high compaction force designed for the efficient compaction of granular soils and asphalt.

This high-performance general purpose compaction plate is designed to get jobs done fast and is ideally suited for a wide variety of compaction tasks associated with both new construction and maintenance repair works alike.

It is supplied with a patented low-vibration handle, a removable water tank with an oversized cap for easy filling, a transport wheel kit for easy movement to and around the jobsite, together with an exclusive cast convex baseplate which makes it both easy to manoeuvre and not leave marks on hot asphalt.

LF100LAT (Honda Petrol) – (4.8Hp/3.6kW). 500mm wide. 17kN centrifugal force. 25m/min travel speed. 109kg.

Why not add an optional paving pad to your purchase for maximum versatility and product utilisation?

Add Paving Pad

Contact For Availability

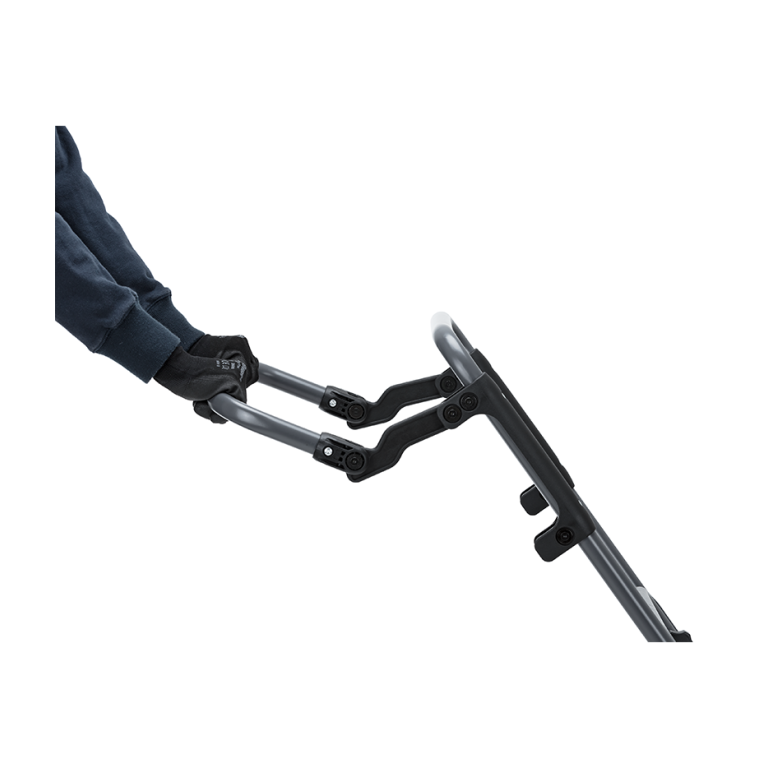

The Husqvarna LF 100 LAT is equipped with a Honda petrol engine with a strong protective tubular frame, a cast iron convex baseplate which provides high manoeuvrability and optimal water distribution, an oil-filled and sealed excitor unit, maintenance free bearings, together with a vented belt guard and flights on pulley ends to generate airflow to both cool and extend belt life, a durable plastic water tank with a large opening for easy filling, a smart water distribution system which requires less frequent refilling and more continuous and uninterpreted production, a convenient transport wheel kit to aid movement to and around the jobsite and a patented low-vib handle (set within the standard handle with a clip in, clip out design) which when engaged lowers HAV levels to below 2m/s2 thus greatly improving safe usage times and with that, the possibility of increasing productivity levels too. The low-vib handle is also supported by a lifetime guarantee. Alternatively, users can simply use the standard handle provided. The handle can also be completely folded, making it easier to both transport and store. It is also additionally equipped with a central lift point.

An optional and easy to attach blocking paving kit is also available for the LF 100 LAT which is designed to protect paving blocks from scratches and cracking, by providing a cushioned layer between the bottom surface of the plate and the laid block surface. It is also simple, quick and easy to fit and remove.

MPN 9678551-02
Engine Honda GX160 Petrol
Nett Power 4.8Hp/3.6kW
Plate Size 500 x 595mm (W x L)
Dimensions 960 x 500 x 995mm (L x W x H)
Frequency 95Hz
Centrifugal Force 17kN
Travel Speed 25m/min
Vibration Level – standard handle 6.0m/sec²
Vibration Level – low-vib handle 1.3m/sec²
Weight 109kg
