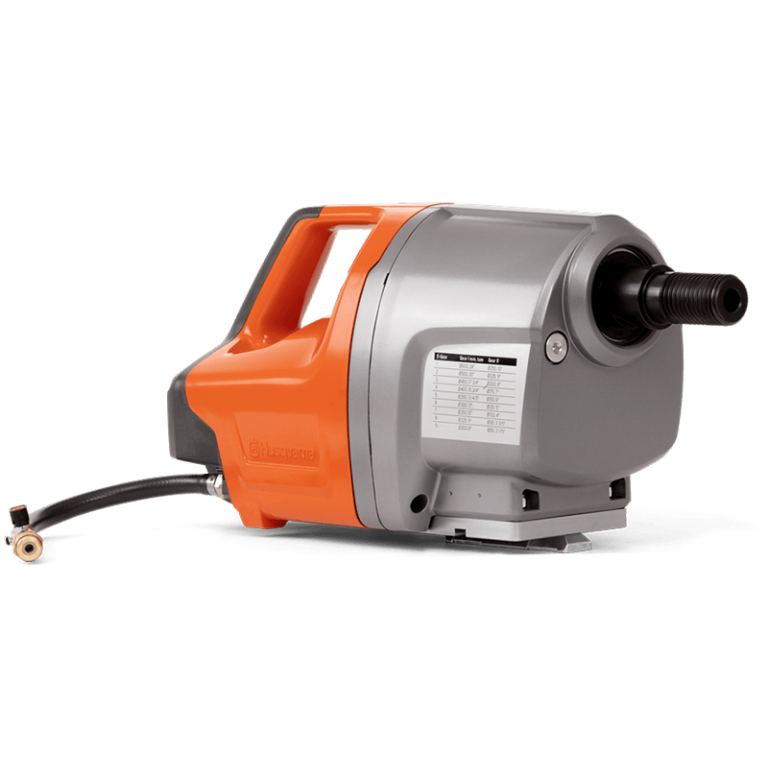

Husqvarna DM700 Core Drill Motor – High Frequency (415V)

Husqvarna DM700 Core Drill Motor – High Frequency (415V)

£3,879.60
£3,233.00 Exc. VAT
RRP £5,419.20 Inc. VAT

In stock

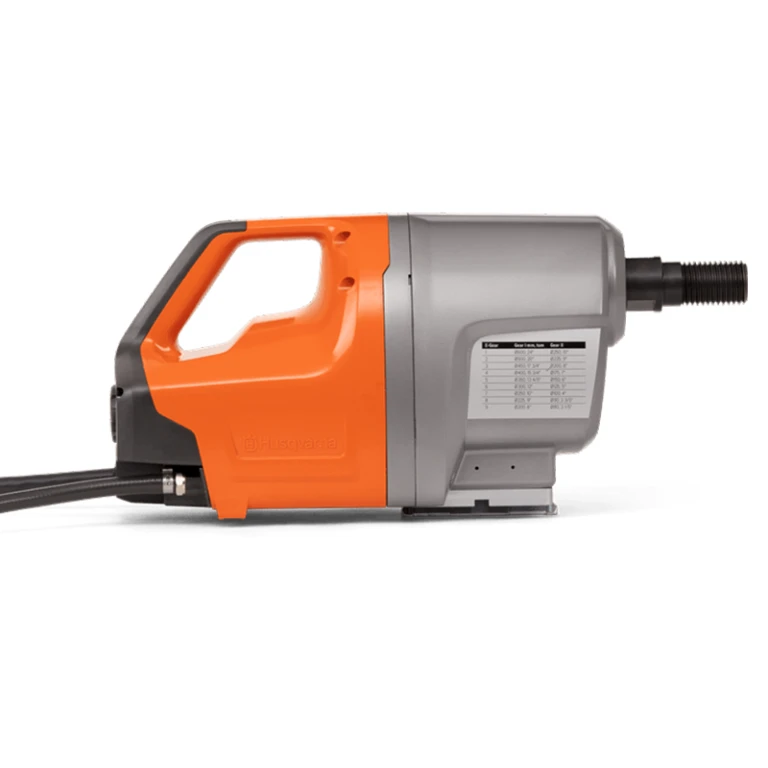

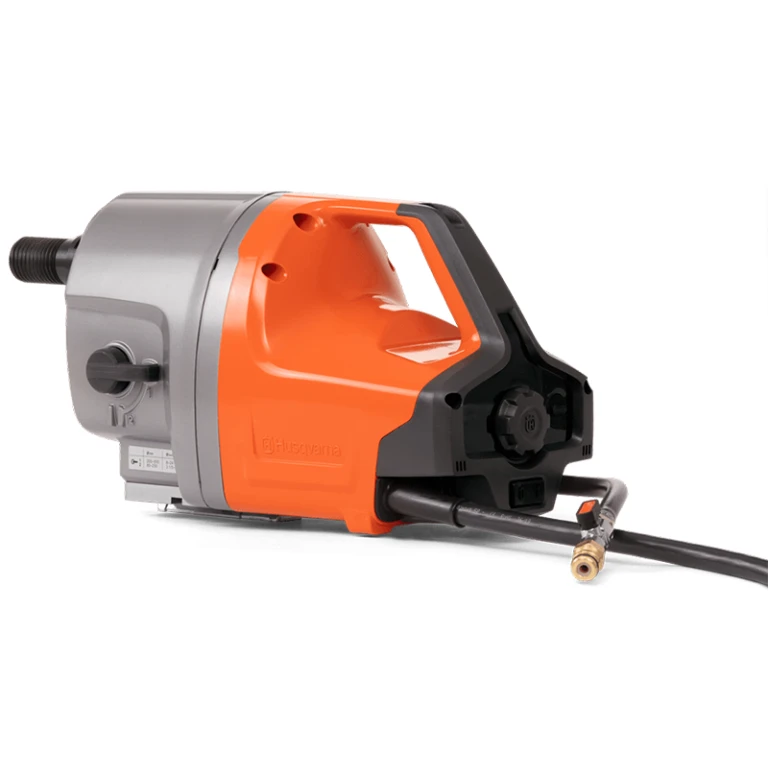

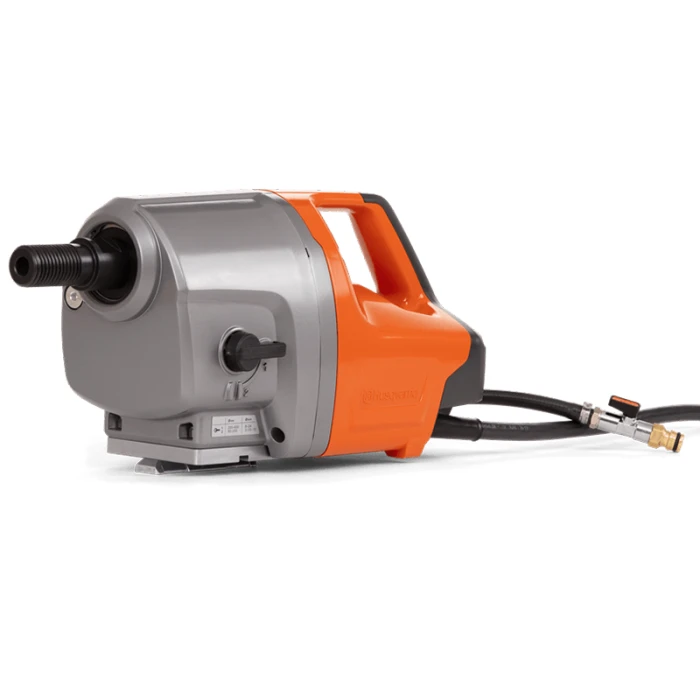

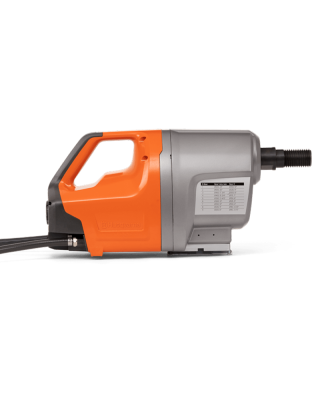

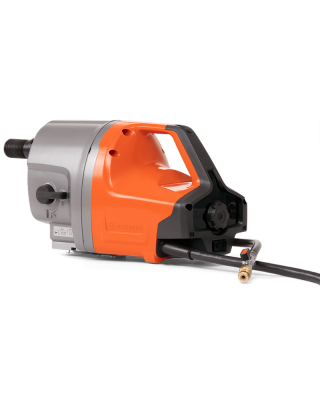

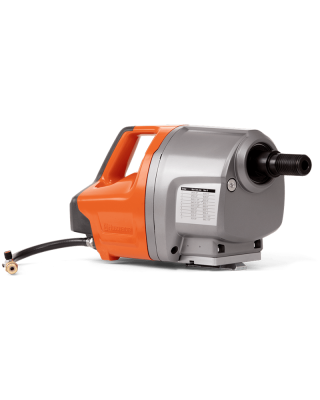

The Husqvarna DM700 is a highly powerful and versatile electric diamond core drill motor, suitable for a wide variety of drilling duties as well as more demanding, heavy-duty applications and producing holes from 80 to 600mm diameter. This low weight, user-friendly, high power drill motor is equipped with the latest Husqvarna high frequency PRIME™ technology. It is ideal for drilling hard concrete with rebar, where multiple deep and larger diameter holes are needed. It is designed to be used rig/stand mounted and for wet drilling.

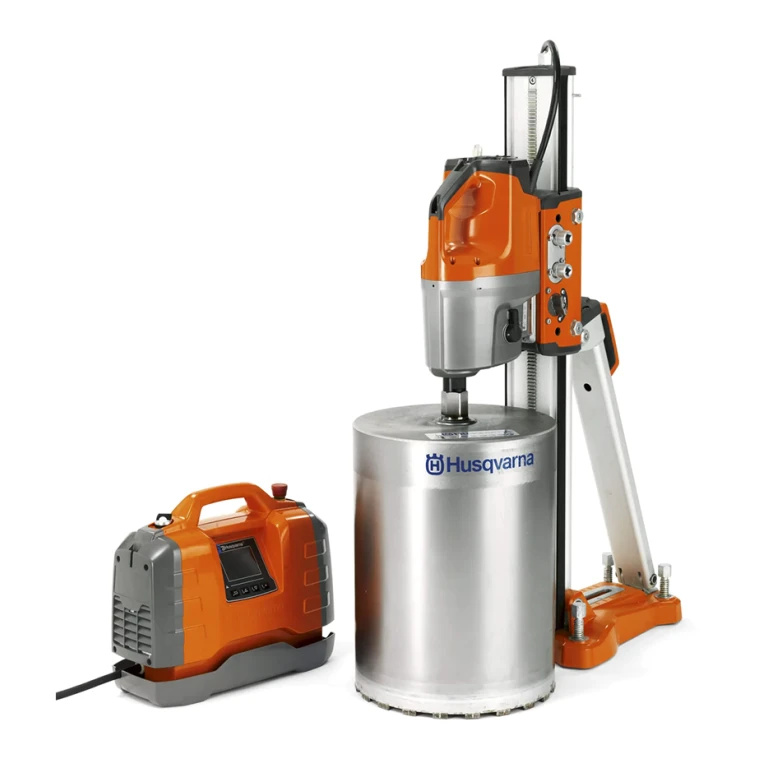

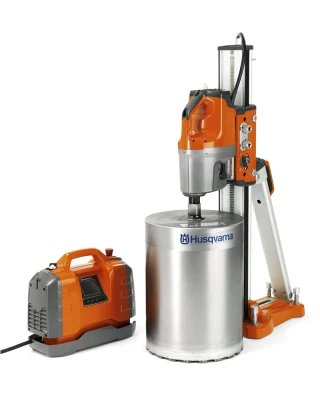

It is recommended for use with the Husqvarna DS 900 drill stand and the Husqvarna PP70 PRIME™ high frequency power pack.

The DM700 has a 1¼” UNC male fitting.


Recommended for use with the Husqvarna DS900 core drill stand.

DM700 HF (415V 3ph) – (6.0kW). Core range: 80-600mm. 18-speed (2 mechanical, 9 electrical) – Speed 1: 125-310rpm*, Speed 2: 270-675rpm* (unloaded).

*9 electronic gears

£3,879.60
£3,233.00 Exc. VAT
RRP £5,419.20 Inc. VAT
Add Water Tank or Water Pump
Qty:-+
Add Optional Extra's
Husqvarna DS900 Drill Stand | Red Band UK
DS900 Core Drill Stand
£3,294.00
£2,745.00 Exc. VAT
RRP £5,419.20 Inc. VAT
Qty:-
+
DS900 Core Drill Stand
Husqvarna vacuum plate for core drilling
Husqvarna Vacuum Plate for Core Drill Stands
£226.80
£189.00 Exc. VAT
RRP £5,419.20 Inc. VAT
Qty:-
+
Husqvarna Vacuum Plate for Core Drill Stands
DS500 - Wheel Kit
£186.00
£155.00 Exc. VAT
RRP £5,419.20 Inc. VAT
Qty:-
+
DS500 - Wheel Kit
Husqvarna PP70 Power Pack - High Frequency (120-480V)
£3,308.40
£2,757.00 Exc. VAT
RRP £5,419.20 Inc. VAT
Qty:-
+
Husqvarna PP70 Power Pack - High Frequency (120-480V)
Add Anchor Kit
For Drill Stand
Qty:-+
Add 100mm Drill Spacer
(for drilling up to 600mm dia.)
Husqvarna 100mm Quick Mounting Drill Spacer
£527.32
£439.43 Exc. VAT
RRP £5,419.20 Inc. VAT
Qty:-
+

(Delivery calculated at checkout)

SKU: DM700
Share:

The DM700 is a hugely powerful and highly versatile motor which delivers a massive 6kW on the output spindle. Its 18-step adjustable rpm range ensures optimal speed for all drill bit dimensions (length and diameter (up to 600mm). The motor is dust and water proof, as well as water-cooled, minimising service needs. This is an incredibly versatile motor, suitable for quite literally all drilling applications from 100 to 600mm diameter.

Whilst the DM700 may be a heavyweight contender in terms of performance, it is far from heavy in weight, weighing just 14kgs. Its low weight makes the motor easy to both carry and setup, it even has a carry handle incorporated to aid transportation to and around the job site. Despite its low weight, it is suitable for the most demanding and heavy-duty drilling applications in a wide range of reinforced concrete, brick, masonry and stone. The motor features torque boost which reduces speed to increase torque when drilling through rebar and hard aggregates, which also improves efficiency and productivity.

The motor housing features a LED indicator which clearly allows the operator to always drill at maximum pressure for optimum performance levels. The embedded Elgard™ uses pulsation to warn the operator of approaching overload, which again aids productivity and performance.

DM700
MPN 9704494-01
Output Power 6.0kW
Rated Input Power 6.0kW
Rated Current 16A (3-phase)
Voltage 415V High Frequency
Gears 2 mechanical and 9 electronic
Spindle Speeds (Unloaded) Speed 1 (125-310rpm), Speed 2 (270-675rpm)
Core Range 80-500mm (600mm with 2 x 50mm spacers added)
Connection 1¼” UNC M
Product Dimensions (W x H x L) 164 x 215 x 452mm
Weight (Machine Only) 14kg
Sound pressure level at operators ear 98dB(A)
