Husqvarna DS900 Core Drill Stand

Stand only. Machine and core bit not included

Husqvarna DS900 Core Drill Stand

£3,294.00
£2,745.00 Exc. VAT
RRP £4,724.40 Inc. VAT

In stock

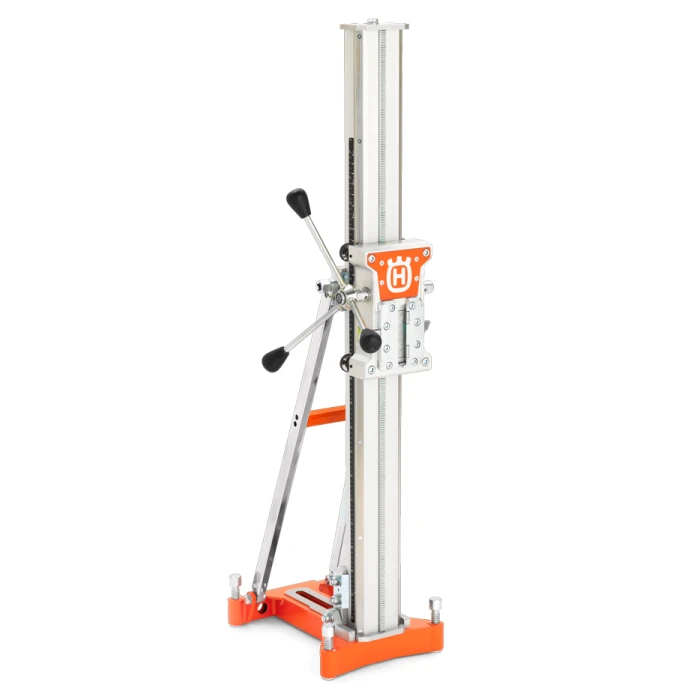

The Husqvarna DS900 is a robust core drill stand and the choice of stand for large core bits up to 900mm diameter, heavy-duty drilling applications and the toughest site conditions.

Its excellent power-to-weight ratio and user-friendly setup together with the high stability and robustness of the stand means that it is not only limited to diamond drilling applications, but can also be used with the Husqvarna WS 400 wall saw product for maximum versatility and return on investment. An optional wheel kit and vacuum plate are available as optional extras.

The robust and rigid DS 900 with its high stability makes it perfect for the precision drilling of deep holes and holes with big diameters. The drill column is easy to adjust for angle drilling (0 to 60°).


Recommended for use with the Husqvarna DM406H and DM700 core drill motors.

DS900 – (24kgs). Maximum core bit diameter: 900mm.

Add Optional Extra's
DS900 - Wheel Kit
£438.00
£365.00 Exc. VAT
RRP £4,724.40 Inc. VAT
Qty:-
+
DS900 - Wheel Kit
Husqvarna vacuum plate for core drilling
Husqvarna Vacuum Plate for Core Drill Stands
£226.80
£189.00 Exc. VAT
RRP £4,724.40 Inc. VAT
Qty:-
+
Husqvarna Vacuum Plate for Core Drill Stands

(Delivery calculated at checkout)

SKU: DS900
Share:

The DS900 is equipped with a carrying handle on the back support to aid its portability to and around the job site. An optional wheel kit is available to aid movement and transportation further if required. It has a robust, steel-reinforced die cast magnesium base plate which not only lowers the operating weight, it also permits rigid anchoring.

The drill column has graduated scales which clearly illustrate to the operator both drilling depth and working angle. The winding handle/crack can be easily removed, used on either side of the column and used to set level bolt heights or adjust the angle of the column – no more tools required.

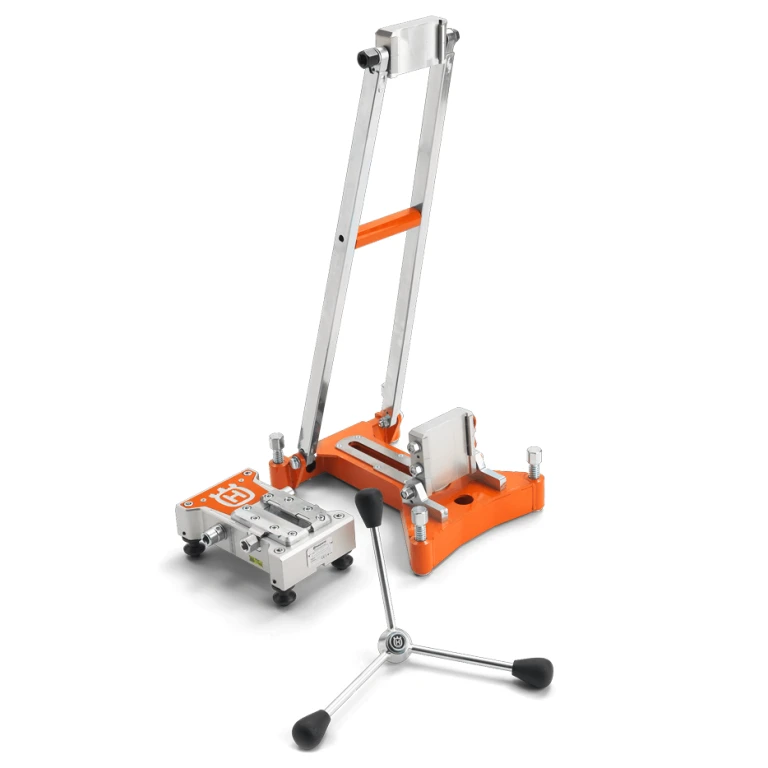

The design of its steel-reinforced extruded aluminium column is optimised for high precision and drilling performance, even down to its hinges which have a zero-ply design to enable stability over time. Its slim-design carriage has optimised gear ratios and can be removed during setup or transportation if required.

DS900
MPN 967301602
Maximum Core Bit Capacity 900mm
Maximum Column Travel 950mm
Angle range 0-60º
Weight 24kg
