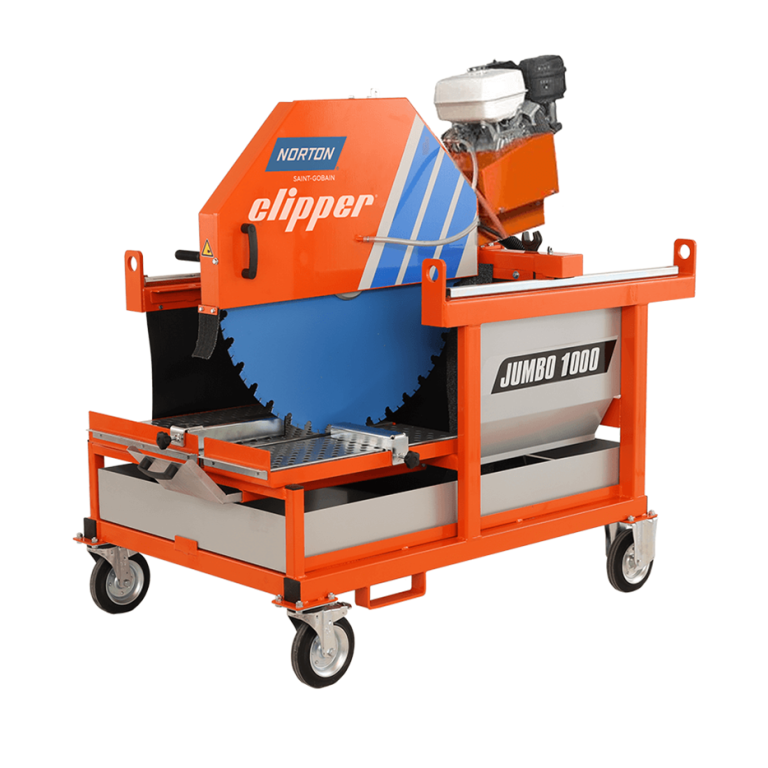

Norton Clipper Jumbo 1000 40” Block Saw
The Clipper Jumbo 1000 is the market’s reference for large masonry block saws and the largest capacity saw in the Norton Clipper range.
With its superior 420mm maximum cutting depth, the Jumbo 1000 is the go to cutting solution when cutting large, manageable pieces of masonry, natural stone, refractories and concrete products (up to 440m in height, 720mm long and 60kgs in weight).
The Jumbo 1000 is simple, safe and easy to use. A handwheel mounted on the side of the saw allows the operator to remotely traverse the cutting head, whilst safely distanced from the blade. The saw is also surprisingly agile and easy to move, transport and store. This powerful and highly versatile block saw features an integral electric water pump and large water tank for wet cutting.
The 415V 3ph electric model is ideal for static, industrial and continuous use, whilst the petrol powered model perfect for mobile, site use and on virgin sites/remote locations with no access to power. For ease of movement the Jumbo 1000 is equipped with 4 transport wheels, multiple lifting points and fork lift eyes.
The Jumbo 1000 is available with a choice of a drive units, a 415V 3ph electric motor (32A 3-phase supply), or petrol engine.
Jumbo 1000 100-3-400V (415V 3ph) - (10hp/7.5kW). Max cutting length 720mm. Max cutting depth 420mm. 370kg.
Jumbo 1000 P13 - (13hp/9.6kW). Max cutting length 720mm. Max cutting depth 420mm. 360kg.
RRP from £9,542.40 Inc. VAT
|Jumbo 1000 100.3.400V||Jumbo 1000 P13
|Maximum Cutting Length||720mm||720mm|
|Maximum Cutting Depth||420mm||420mm|
|Maximum Material Height||440mm||440mm|
|Maximum Material Weight||100kg||100kg|
|Table Size||720 x 800mm||720 x 800mm|
|Overall Dimensions (L x W x H)||2000 x 1080 x 1700mm||2000 x 1080 x 1700mm|
|Our Price (Exc.VAT)||£4,808.00||£6,995.00|
The Jumbo 1000 has a heavy-duty construction and a large work surface (720 x 800mm) for permits easy loading. It is designed for continuous cutting operations on the job site or static industrial use. It is a very safe and easy saw to use and maintain.
For ease of loading and improved operator safety, the saw is designed such that the cutting head is manually traversed by the operator via a handwheel mounted on the side of the machine, so that cutting head and blade are clear of the work surface. This allows material to be safely loaded and positioned without impediment. This design also allows materials to be safely loaded from overhead if required. A graduated scale on an angle provides the user with greater visibility of the cutting guide position.
The saw has an integral electric water pump and large water tank for recirculating water for wet cutting applications. Access to the water pan for drainage and cleaning is also easy, as is other general routine maintenance. A pull out splash guard located at the front of the saw underneath its table can be easily employed to reduce the amount of splash made when the machine is in use.
The cutting head of the saw is spring loaded, easy to adjust (cutting height) and lock into the desired position of choice. This is particularly beneficial when step cutting dense materials. Blade exchange is made easy thanks to the concertina opening blade guard which allows the user simple and easy access to the blade shaft area. Not only does this provide simple and easy access, it also greatly reduces the machine downtime when the blade is being replaced.
