Altrad Belle BGA Power Drive Unit

Altrad Belle BGA Power Unit - Honda
Altrad Belle BGA Power Unit - Hatz
Belle BGA Pokers
Altrad Belle BGA Power Unit & Pump

Altrad Belle BGA Power Drive Unit

From £516.00
From £430.00 Exc. VAT
RRP From £1,338.00 Inc. VAT

In stock

The Belle BGA is a robust, compact, highly portable and fully self-contained Power Drive Unit (PDU) with an industry standard Two-Dog (bow tie/claw) coupling within a 60mm round PTO.

It can be used to drive the Belle BGA submersible water pump, Belle BGA range of vibrating pokers and a wide variety of other flexible mechanical pendulum poker shaft assemblies and submersible water pumps with the same industry standard Two-Dog coupling.

The Two-Dog style drive coupling ensures maximum compatability, versatility, product utilisation and return on investment.


It is available with a choice of two petrol engines (Honda or Loncin) and one diesel to suit individual needs and budget.

165.9.090 (Loncin petrol) – (3.5Hp/2.6kW). Loncin H135 engine. 24kg.

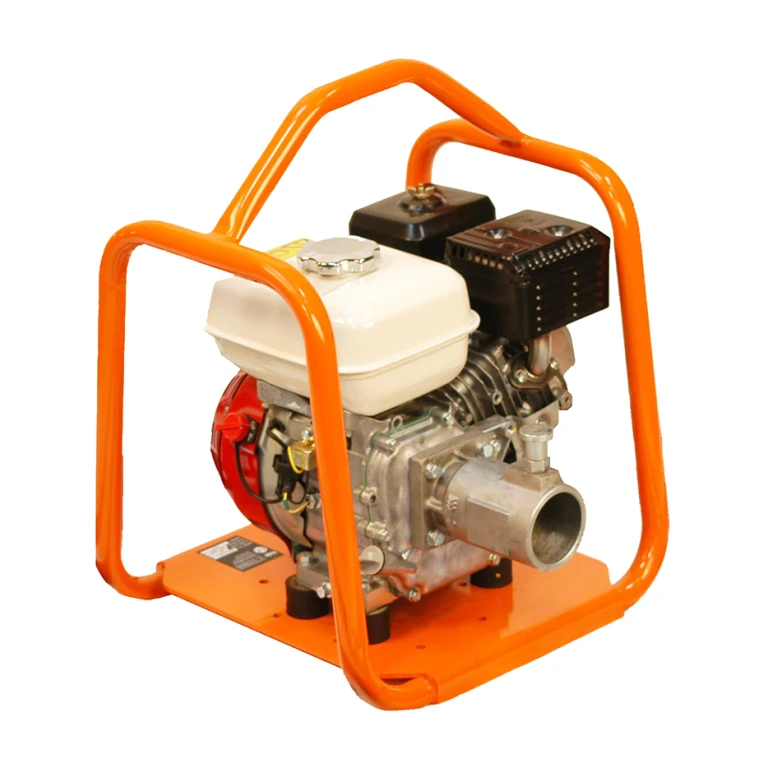

165.9.038 (Honda petrol) – (5.5Hp/4.0kW). Honda GX160 engine. 26kg.

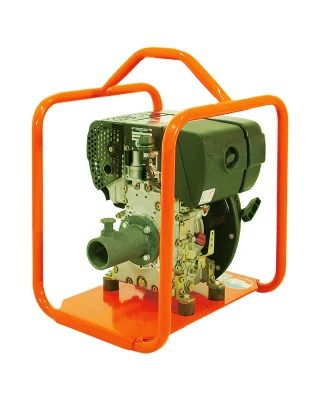

165.9.034 (Hatz diesel) – (5.4Hp/4.0kW). Hatz IB20 engine. 43kg.

Pick Your Model
Altrad Belle BGA Power Unit - Loncin
Altrad Belle BGA - Loncin
£516.00
£430.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
Altrad Belle BGA - Loncin
Altrad Belle BGA Power Unit - Honda
Altrad Belle BGA - Honda
£583.20
£486.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
Altrad Belle BGA - Honda
Altrad Belle BGA Power Unit - Hatz
Altrad Belle BGA - Hatz
£1,396.80
£1,164.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
Altrad Belle BGA - Hatz
Add Poker Shaft Assembly?
BGA 25mm Head & 6m Flex
£348.00
£290.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
BGA 35mm Head & 6m Flex
£361.20
£301.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
BGA 45mm Head & 6m Flex
£378.00
£315.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
BGA 55mm Head & 6m Flex
£392.40
£327.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
BGA 68mm Head & 6m Flex
£438.00
£365.00 Exc. VAT
RRP From £1,338.00 Inc. VAT
Qty:-
+
Add a Submersible Water Pump?

(Delivery calculated at checkout)

SKU: BGA
Share:

The Belle BGA range of pendulum pokers feature an industry standard Two-Dog (bow tie) coupling and a 6m flexible shaft. They are available in a choice of 5 head diameters (25, 35, 45, 55 & 68mm), which is more than sufficient to suit most site needs for effectively removing air from freshly poured concrete.

Alternatively, the addition of the BGA submersible water pump will transform the BGA drive system into a high capacity, heavy duty submersible water pump suitable for the removal of dirtiest water (even when containing solids) from trenches and building sites, providing the ability to lift high heads of water with excellent flow rates. This makes it ideally suited for use on virgin sites and in remote locations with limited or no access to electric.

Although compact, highly portable and easy to use, the Belle BGA drive unit has been designed and engineered to withstand the rigours of heavy site and rental use.

It is fitted with speed limitation to prevent over-revving of the engine and poker burn out.

Belle BGA Power Drive Unit

MPN 165.9.090 165.9.038 165.9.034
Engine Loncin H135 Petrol Honda GX160 Petrol Hatz IB20 Diesel
Gross Power 3.5Hp/2.6kW 5.5Hp/4.0kW 5.4Hp/4.0kW
Dimensions (W x H x L) 420 x 520 x 445mm 420 x 520 x 445mm 440 x 630 x 500mm
Weight 24kg 26kg 43kg



Belle BGA Poker Flexible Shaft Assemblies

MPN 165.9.080 165.9.081 165.9.082 165.9.083 165.9.084
Head Diameter 25mm/1″ 35mm/1 3/8″ 45mm/1 3/4″ 55mm/2 3/16″ 68mm/2 11/16″
Head Length 295mm 330mm 375mm 390mm 410mm
Shaft Length 6m 6m 6m 6m 6m
Weight 13.1kg 15.1kg 19.6kg 20.6kg 24.6kg

Submersible Water Pumps

Manufacturer ENAR Altrad Belle
MPN 251000 165.9.047
Maximum Flow Rate 900 Litre/min 25,000 Litre/hour
Shaft Length 6m 5m
Outlet Size 75mm/3″ 75mm/3″
Pump Weight 5kg 6kg
