Altrad Belle DUX E+ Poker Drive Unit – Battery

Altrad Belle DUX E+ Poker Drive Unit – Battery

Coming Soon

Coming Soon

The Altrad Belle DUX E+ is a compact, robust and reliable battery-powered Poker Drive Unit (PDU) which is designed to drive a wide variety of mechanical pokers for effective air removal from newly poured wet concrete. It is suitable for heavy site and rental use alike.

This efficient, highly-portable, low-noise, zero direct emission, low-maintenance, easy to use and fully self-contained battery poker drive features an industry standard Two-Dog (bow tie/claw) coupling within a 60mm round PTO for added convenience and maximum versatility.

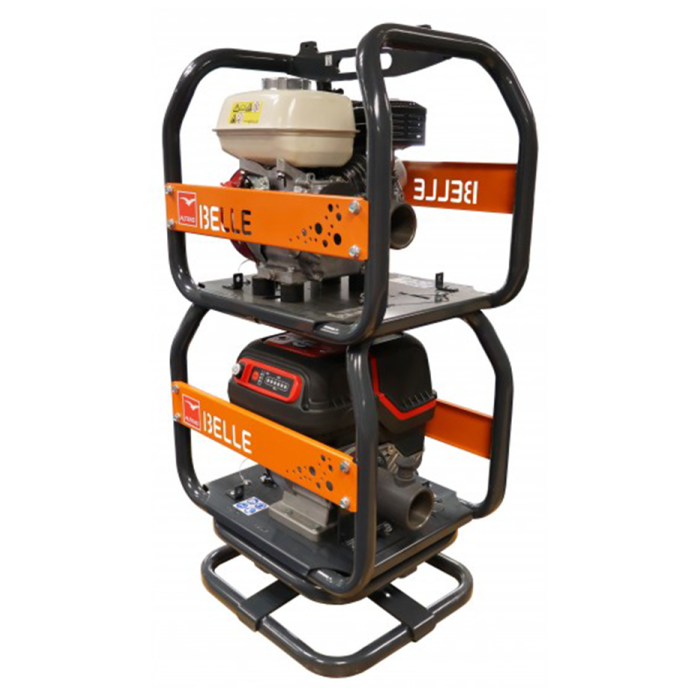

The stackable rigid tubular frame of the DUX E+ provides to the 82V, powerful 2.9kW digital brushless motor which sits within it. It is also equipped with single point lifting, together with a securing pin for added safety when stacked.

The quiet operation of the DUX E+ makes it ideal for use in noise and environmentally sensitive areas, whilst its zero direct emissions, enables it to be safely in a wide variety of confined and poorly ventilated areas, such as indoors, basements, tunnels etc. Being fully self-contained it is ideal for use on virgin sites too.


DUX E+ – 82V Li-ion battery. 2.9kW digital brushless motor. 60mm Round PTO. 26kg*.

The same 8Ah 82V battery-system developed to power the DUX E+ can also be used to power the Belle MiniMix 150E+ 4/3 cement mixer, DC300E+ 12” disc cutter, the PCLX32E+ 13” plate compactor and the 16” PCLX40E+ plate compactor too, for maximum convenience, versatility, utilisation and return on investment.

Designed for use with Altrad Belle 8Ah 82V Li-ion batteries.

An optional swivel base is also available for added convenience on site.

Add Poker Flex
Qty:-+
Add Optional Extra's
Altrad Belle 82V 8Ah Battery
£480.00
£400.00 Exc. VAT
Qty:-
+
Altrad Belle 82V 5Ah Battery
£306.00
£255.00 Exc. VAT
Qty:-
+
Altrad Belle 82V Battey & Charger Storage Box
£150.30
£125.25 Exc. VAT
Qty:-
+
Altrad Belle 82V Dual Battery Charger
£144.00
£120.00 Exc. VAT
Qty:-
+
Add Swivel Base
Placeholder
Altrad Belle Poker Swivel Base
£0.00
£0.00 Exc. VAT

Coming Soon

(Delivery calculated at checkout)

To use Payl8r, please spend more than £50

SKU: Belle DUX E+
Share:

The Belle battery-powered Poker Drive Unit (PDU) is part of the Altrad Belle family of 82V Lithium-Ion machines which use the same and fully interchangeable battery platform. This provides users with the added convenience of simply swapping the same batteries from product to product to power them. The range consists of the Belle DUXE+ poker drive unit, Belle DC300E+ 12” disc cutter, the Belle MiniMix 150E+ cement mixer, together with the Belle PCLX32E+ 13” plate compactor and the larger and Belle 16” PCLX40E+ plate compactor.

All Altrad Belle 82V benefit from the same advantages of ownership, which include low maintenance and running costs, together with its obvious environmental credentials of being direct emission free and therefore suitable for use indoors and in poorly ventilated areas such as basements, tunnels, confined spaces,  as well in other noise sensitive like green spaces, residential areas etc.

Simplicity, cost and ease of ownership are all key with the Belle DUXE+ poker drive unit. With its easy and reliable pushbutton start, there is no pullcord, or engine priming required, no fuel to mix, filters to maintain etc – just immediate power on demand when you need it. For added convenience, batteries are equipped with a digital power level display, so users know exactly how much ‘gas is left in the tank’ at all times!

DUX E+ – PDU Only
MPN 165.9.093
Motor Type Digital Brushless
Battery Type Lithium Ion
Battery Voltage 82V
Battery & Charger Included? No
IP Rating IP44
Dimensions (W x L x H) 556 x 474 x 412mm
Weight 26kg*

*Drive unit only. Excludes weight of battery and poker shaft assembly.

Battery Specification

  5Ah Battery 8Ah Battery
MPN OPM/13/FIO OPM/14/FIO
Battery Type Lithium Ion Lithium Ion
Dimensions (W x H x L) 90 x 214 x 120mm 90 x 240 x 120mm
Maximum Voltage 82V 82V
Nominal Voltage 72V 72V
Energy Rating 360Wh 580Wh
Energy Capacity 5.0Ah 8.0Ah
80% Charge Time 28 mins +/- 48 mins +/-
100% Charge Time 39 mins +/- 65 mins +/-
Weight 2.8kg 3.9kg

OPM/15/FIO Battery & Charger Storage Box holds 2 x 82V Belle batteries and 1 x 82V Belle dual battery charger.
