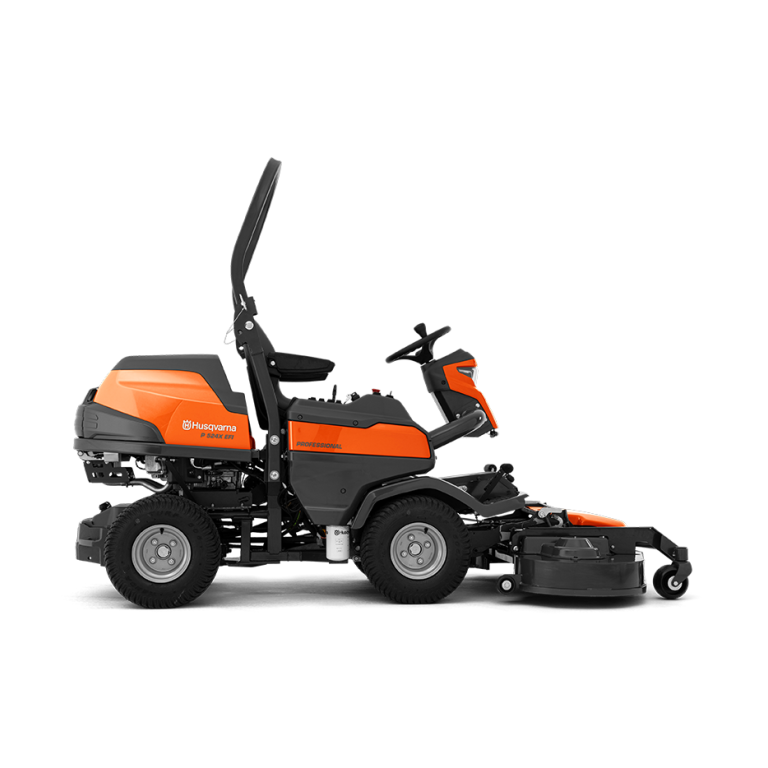

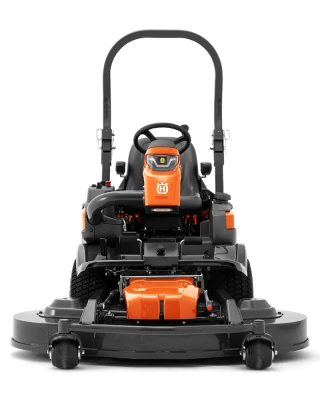

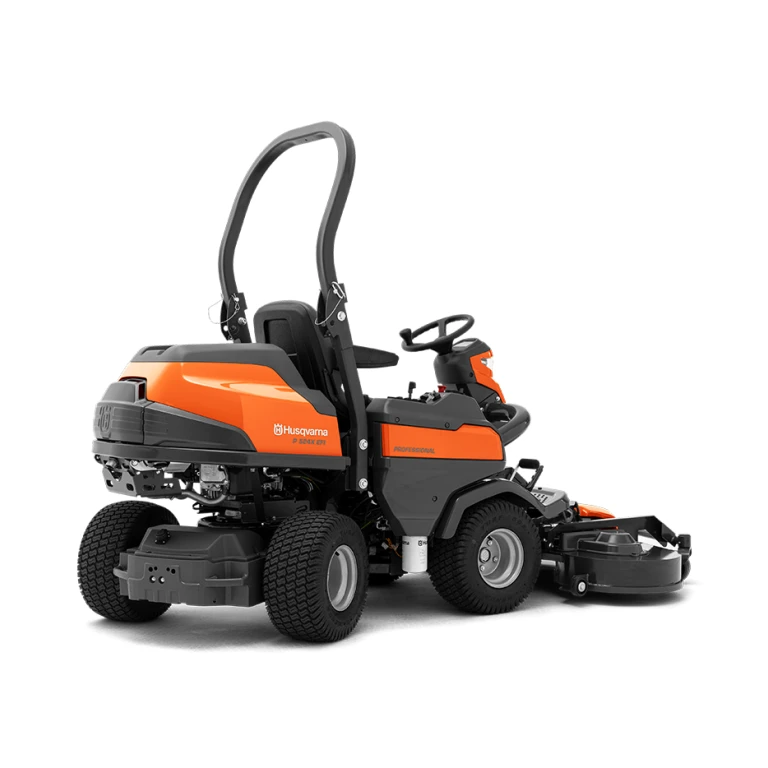

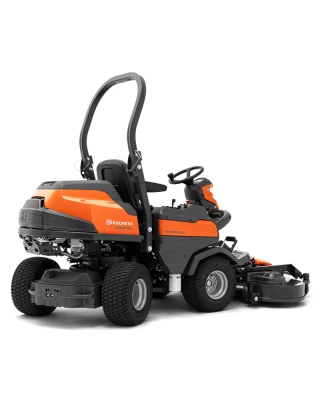

Husqvarna P 524X Front Mower - Petrol

The Husqvarna P 524X is a commercial grade front-mounted ride-on mower which is designed for full-time domestic and commercial use alike.

This compact and highly-versatile mower is equipped with articulated steering, AWD (All-Wheel-Drive), a powerful Kawasaki V-Twin engine and an electric attachment lift which enables efficient and comfortable work.

It is ideal for facility management companies, sports clubs, landowners and home owners who want a manoeuvrable ride-on solution for year-round duties and use in complex areas. It is also suitable for maintaining domestic properties with large expanses of grass.

This compact, productive, highly versatile and highly manoeuvrable mower features a unique articulated hydraulic power steering, AWD and is equipped with a powerful and efficient Kawasaki V-Twin petrol engine as well as a belt-driven Power-Take-Off (PTO). The efficient four-wheel system of the P 524X means that it is suitable for use on all types of terrain and a variety of all-year-round duties.

A choice of 112 or 122cm Combi cutting decks with mulch and rear discharge capability are available for use with the P 524X. Decks can be put into a convenient service position for easy cleaning and maintenance.

A comprehensive range of Husqvarna custom all-year-round powered and non-powered labour-saving accessories are available as optional extras.

P 524X - Kawasaki FX Series V-Twin (726cm3/13.9kW). 112 or 122cm Deck. Weight 433kg (exc deck).

Husqvarna Dealer | Red Band UK

£12,598.80 £10,499.00
In stock
RRP from £14,998.80 Inc. VAT


MPN 970601501
Engine Kawasaki FX Series V-Twin
Engine Power 726cm³/13.9kW
Cylinders 2 (V-Twin)
Engine Type Petrol (4-Stroke)
Engine Cooling Air
Engine Lubrication Type Full pressire with oil filter
Transmission Hydrostatic AWD
Deck Size 112 or 122cm
Cutting Height 25-75mm
Uncut Circle 50cm
Drive Method Dual pedal-operation
PTO (Power Take Off) Belt-driven
Blade Engagement Electric clutch
Max Speed (Fwd / Rev) 13km/h / 9km/h
Seat Type Professional
Hour Meter Type Digital
Base Machine Dimensions (L x W x H) 206 x 98 x 122cm
Wheelbase 100cm
Ground Clearance 130mm
Weight (exc deck) 433kg
Our Price (Exc. VAT) £10,499.00*

*Price excludes the supply of a cutting deck or accessories which are available to buy as optional extras to suit individual requirements.

The Husqvarna P 524X features a unique articulated steering that allows the rear pair of wheels to swing underneath the mower, the result being superior manoeuvrability with a minimum turning radius at full lock and a turning circle of just 50cm. The heavy-duty hydraulic-cylinder power steering also makes driving less strenuous too.

Its low centre of gravity in combination with its high-performing AWD (All-Wheel-Drive) system gives excellent slope and hillside stability.

The compact size of the mower together with its unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky. The front mounted position of the cutting deck also provides users with excellent visibility, enabling precise, close-up trimming. It is suitable for use with a choice of 112 or 122cm Husqvarna Combi decks which are designed to deliver a top-class cutting result and which offer two cutting methods in one deck; mulching or rear discharge (mulch plug removed). The deck themselves are stamped from a single piece of steel plate in a flow-optimised design to deliver the best-in-class mulch result. The low-profile front-mounted cutting deck position also gives unbeatable accessibility under fences, bushes, under obstacles like garden furniture, benches etc. For easy maintenance and extended product lifetime mandrels are greaseable. The service position facilitates easy cleaning and servicing of decks as required.

The mower has a strong heavy-duty steel ladder frame with reinforcements and an open design for excellent serviceability.  The completer rear wagon is in one-piece ductile cast iron for improved durability. It is also equipped with a commercial grade transmission with high-specified variable piston pumps with separate gearboxes for the front and rear axle.

The P 524X is equipped with a powerful Kawasaki V-Twin OHV engine with overhead 90o valves, a high-performance lubrication system, cast iron cylinder liners and a dual stage canister air filter, which combine to produce exceptional power and torque with fuel efficiency and reduced emissions.

A raised control panel with all the operator controls ergonomically positioned provide both easy access and comfortable operation even during long working hours. The most frequently positioned controls are positioned at the front while controls used less often are positioned further back.

The P 524 is additionally equipped with a wealth of other design, user and performance enhancing features which include an adjustable steering wheel, dual LED lights, a unique quick coupling which allows attachments to be changed quickly and efficiently without tools, four large 16” wheels for optimal ride comfort and less risk of damage of delicate surfaces, a parking brake with electric engagement, ROPS (Roll-Over-Protective-Structure) and seat belts certified to 5 international standards (including OSHA and SAE requirements) and a comprehensive range of custom Husqvarna all-year-round use powered and non-powered labour saving attachments.

The Husqvarna X-500 Series range of commercial grade outfront ride-on mowers have a number of upgrades new to Husqvarna 500 Series, which include a more reliable and upgraded PTO belt system, a hardwearing footplate made of corrugated steel sheet and a more compliant and robust pedal syste. For greater rigidity and reliability, the position for the cutting height adjustment has also been moved to the cutting deck.
