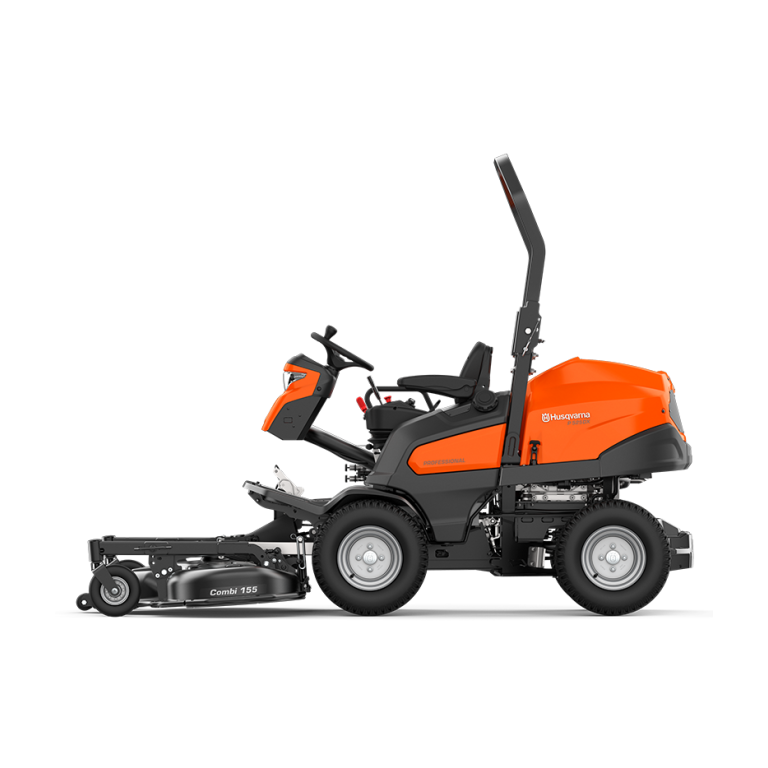

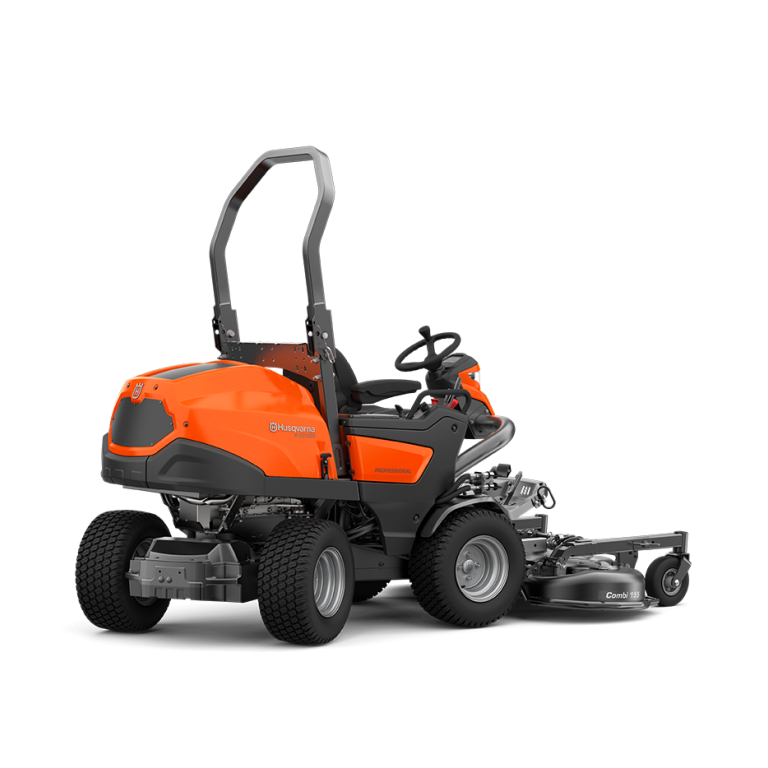

The Husqvarna P 525DX features a unique articulated steering that allows the rear pair of wheels to swing underneath the mower, the result being superior manoeuvrability with a minimum turning radius at full lock and a turning circle of just 58cm. The heavy-duty hydraulic-cylinder power steering also makes driving less strenuous too.
Its low centre of gravity in combination with its high-performing AWD (All-Wheel-Drive) system gives excellent slope and hillside stability.
The compact size of the mower together with its unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky. The front mounted position of the cutting deck also provides users with excellent visibility, enabling precise, close-up trimming. It is suitable for use with a choice of 132 or 155cm Husqvarna Combi decks which are designed to deliver a top-class cutting result and which offer two cutting methods in one deck; mulching or rear discharge (mulch plug removed). The machine can also be used with 132 or 155cm X-Series decks with hydraulic height adjustment, adjustable from the operator’s seat.
The deck themselves are stamped from a single piece of steel plate in a flow-optimised design to deliver the best-in-class mulch result. The low-profile front-mounted cutting deck position also gives unbeatable accessibility under fences, bushes, under obstacles like garden furniture, benches etc. the off-set deck design permits easy handling of corners and close-up trimming against walls and fences. For easy maintenance and extended product lifetime mandrels are greaseable. The service position facilitates easy cleaning and servicing of decks as required.
The mower has a strong, heavy-duty square tube steel ladder frame (4-10mm) with an open design for excellent serviceability. The completer rear wagon is in one-piece ductile cast iron for improved durability. It is also equipped with a commercial grade transmission with high-specified variable piston pumps with separate gearboxes for the front and rear axle. The use of commercial -grade components throughout means uncompromised durability and maximum uptime.
The P 525DX is equipped with a powerful Kubota D1105 3-cylinder diesel engine with full pressure lubrication, which produces exceptional power and torque with fuel efficiency and reduced emissions.
A raised control panel with all the operator controls ergonomically positioned provide both easy access and comfortable operation even during long working hours. The most frequently positioned controls are positioned at the front while controls used less often are positioned further back.
The P 525DX is additionally equipped with a wealth of other design, user and performance enhancing features which include an adjustable steering wheel, dual LED lights, a unique quick coupling which allows attachments to be changed quickly and efficiently without tools, four large 16” wheels for optimal ride comfort and less risk of damage of delicate surfaces, a parking brake with electric engagement, ROPS (Roll-Over-Protective-Structure) and seat belts certified to 5 international standards (including OSHA and SAE requirements) and a comprehensive range of custom Husqvarna all-year-round use powered and non-powered labour saving attachments.
