Husqvarna FS5000D 30″ Road Saw – 48Hp Yanmar Diesel

Contact For Availability

Husqvarna FS5000D 30″ Road Saw – 48Hp Yanmar Diesel


Contact For Availability

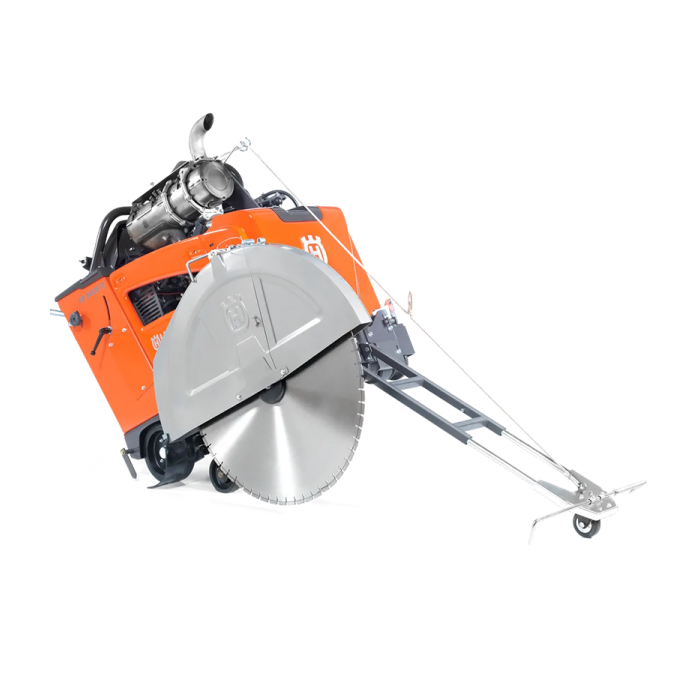

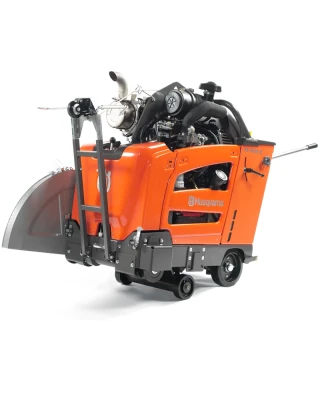

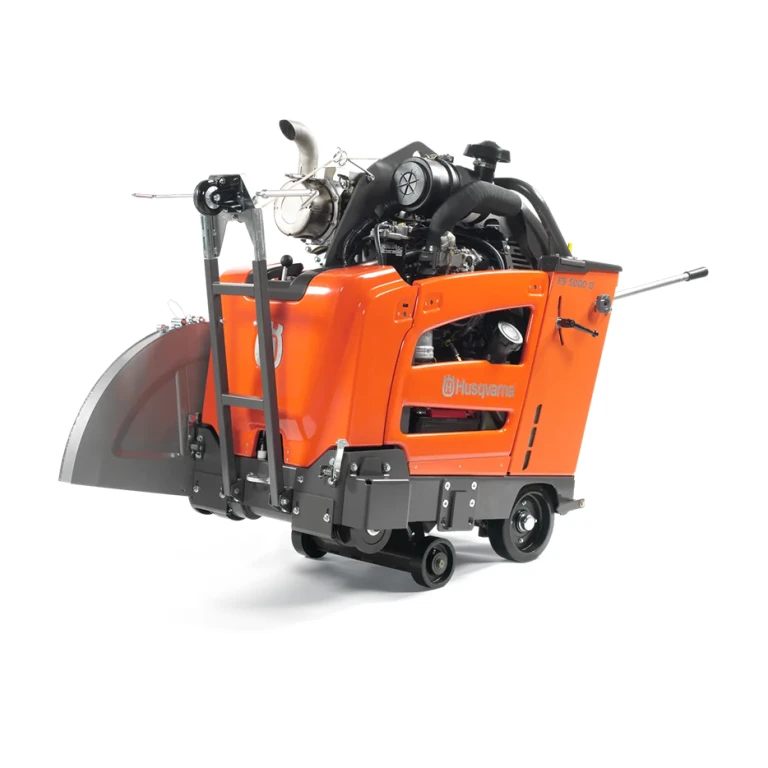

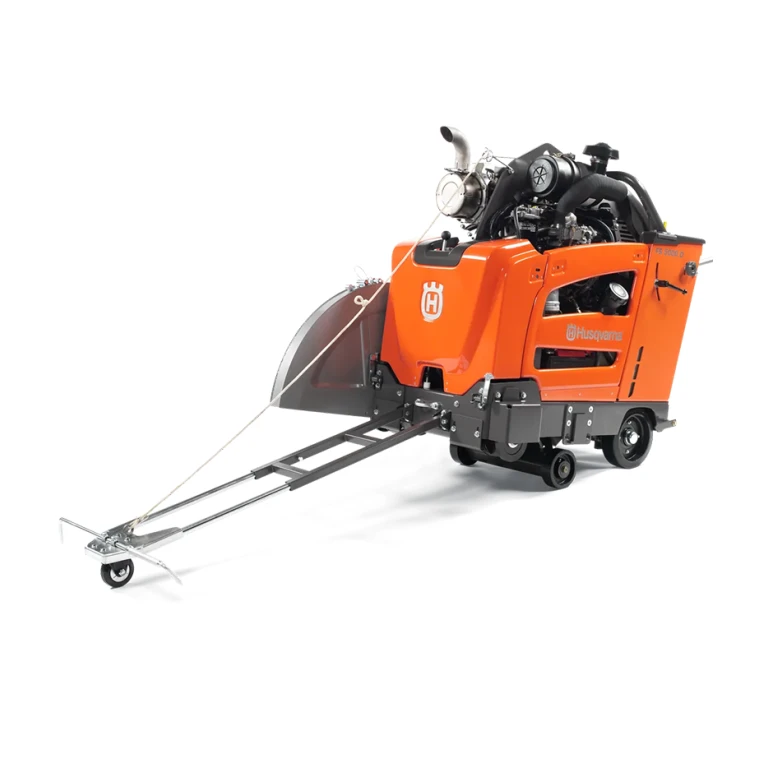

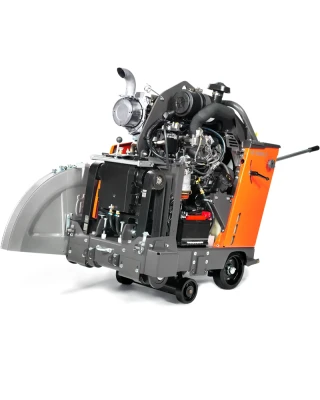

The Husqvarna FS5000D is a modern, powerful and highly-productive fully self-propelled professional walk-behind floor saw which is powered by an impressive low-emission 48Hp/35.5kW Yanmar diesel engine (compliant with Tier 4 and Stage V regulations). It is designed for deep-sawing applications in the toughest conditions.

Thanks to its compact size, weight and balance which have been optimised to provide high-production in service work applications cutting concrete and asphalt surfaces, making it ideal for mid-sized highways/road work, airport runway repairs and other similar sawing jobs that require fast and efficient sawing, with high-output levels.

It is available in a choice of single or three speed drives, with a variety of interchangeable blade guards which range from 20”/500mm to 36”/900mm for maximum versatility.

The Husqvarna FS 5000 D has a service-friendly design and is equipped with handlebars that are adjustable to suit the operator’s personal preference and developed to be highly-manoeuvrable with low-vibrations to reduce operator fatigue.

It features an intuitive and user-friendly control panel which includes a digital monitor and has all the important functional controls of the saw within fingertip reach. The saw is additionally equipped with an Electronic Tracking Assistance mode, which makes straight cuts easier to make, thereby increasing productivity output without extensive strain on the operator.

The FS5000D is suitable for both contractor and rental use alike.

FS5000D (Yanmar Diesel)  (48Hp/35.5kW). 500-900mm blade capacity. 374mm maximum depth of cut. 771kg.

Standard model options available: 500mm Single-Speed, 750mm 3-Speed, 900mm Single-Speed and 900mm 3-Speed.

Optional extras available for the FS5000D include: interchangeable slip-on blade guards, dual light kit, 5th wheel, weights and a water pump.

Contact For Availability

SKU: FS5000D30"

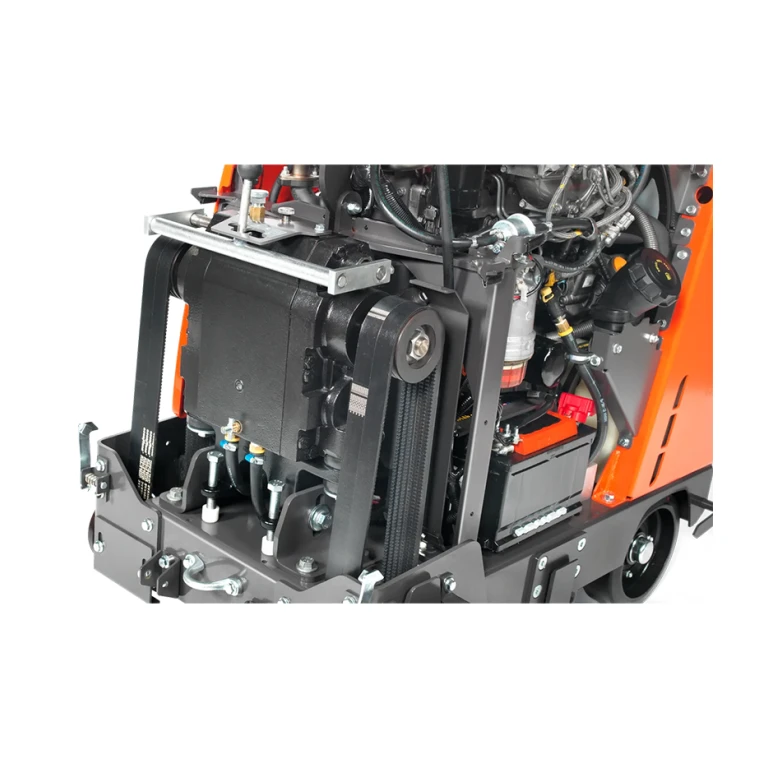

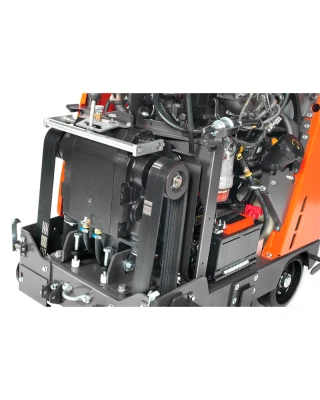

The FS5000D features a patented power transmission system with a right angle gearbox which transmits high power to the blade shaft with optimum torque and minimised vibrations and 12 belt drive for optimum power transfer, combining to produce a massive 42hp at the blade spindle and making the FS5000D one of the most powerful saws available of its type.

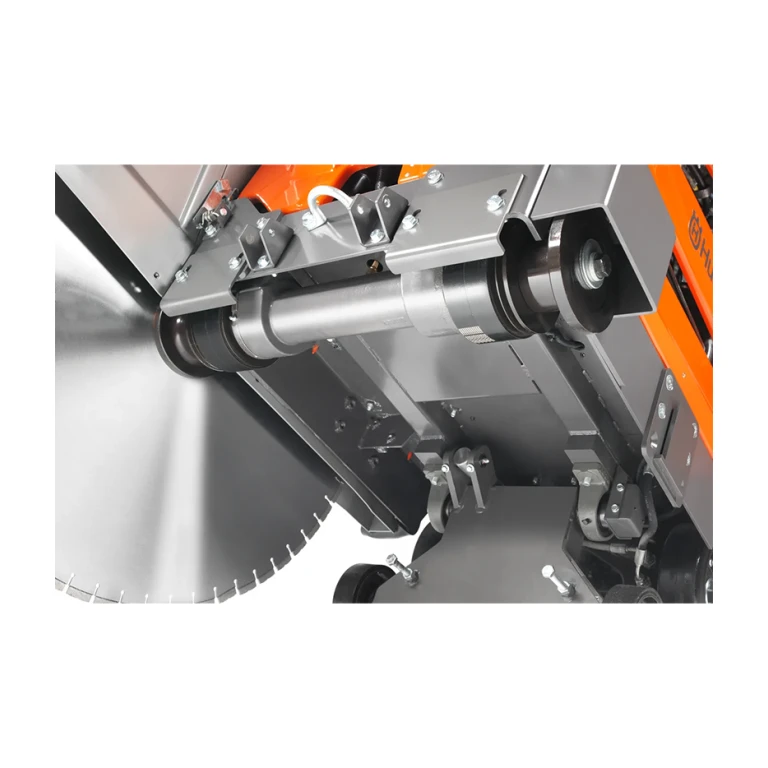

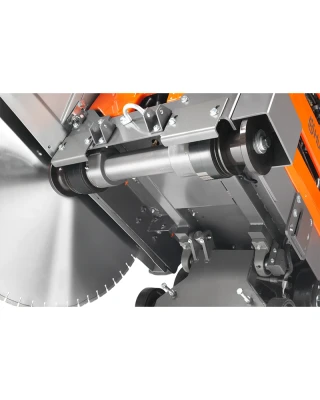

The FS5000D additionally features adjustable handlebars, intuitive control layout, a blade clutch that makes it possible to stop the blade when the engine is still running for safe transportation, a depth indicator’s stop function that stops the saw at your desired cutting depth (and which is also adjustable for all compatible blade diameters), optimal power and speed for a wide range of blade diameters (ideal when jobs require use of multiple blade sizes) and a patented IntelliSeal blade shaft system which allows for a minimum of 250 maintenance-free hours of operation and eliminates daily greasing of bearings.

• Left and right cutting capability

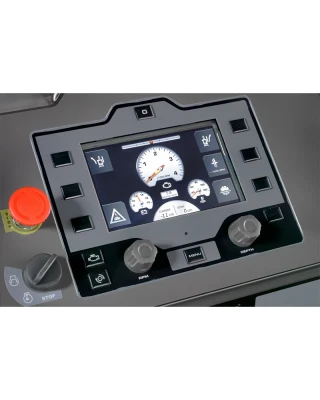

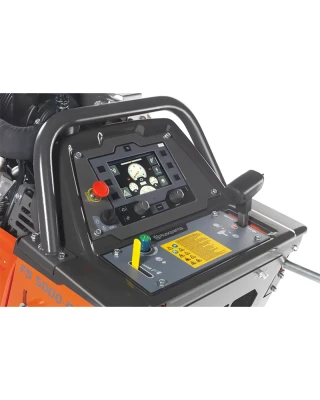

• Fully equipped digital dashboard (all important functions are easy to reach and monitor, such as, blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder)
• Blade clutch
• Equipped with new exhaust after treatment system, diesel particle filter (DPF) – complies with Tier 4/Stage IIIB regulations

500mm Single-Speed 750mm 3-Speed 900mm Single-Speed 900mm 3-Speed
MPN 9672073-39 9672073-38 9672073-45 9672073-40
Engine Yanmar Diesel Yanmar Diesel Yanmar Diesel Yanmar Diesel
Gross Power 48Hp/35.5kW 48Hp/35.5kW 48Hp/35.5kW 48Hp/35.5kW
Cylinders 4 4 4 4
Engine Cooling Water Water Water Water
Fuel Tank Volume 24.5 Litres 24.5 Litres 24.5 Litres 24.5 Litres
Blade Guard 20″/500mm 30″/750mm 36″/900mm 36″/900mm
Bore Size 25.4mm/1″ 25.4mm/1″ 25.4mm/1″ 25.4mm/1″
Maximum Cutting Depth 193mm 312mm 374mm 374mm
Blade Depth Control Electro Hydraulic Electro Hydraulic Electro Hydraulic Electro Hydraulic
Side of Cut Right and Left Right and Left Right and Left Right and Left
Dimensions (W x H x L) 880 x 1332 x 1753mm 880 x 1332 x 1753mm 880 x 1332 x 1753mm 880 x 1332 x 1753mm
Weight 799kg 817kg 829kg 829kg
