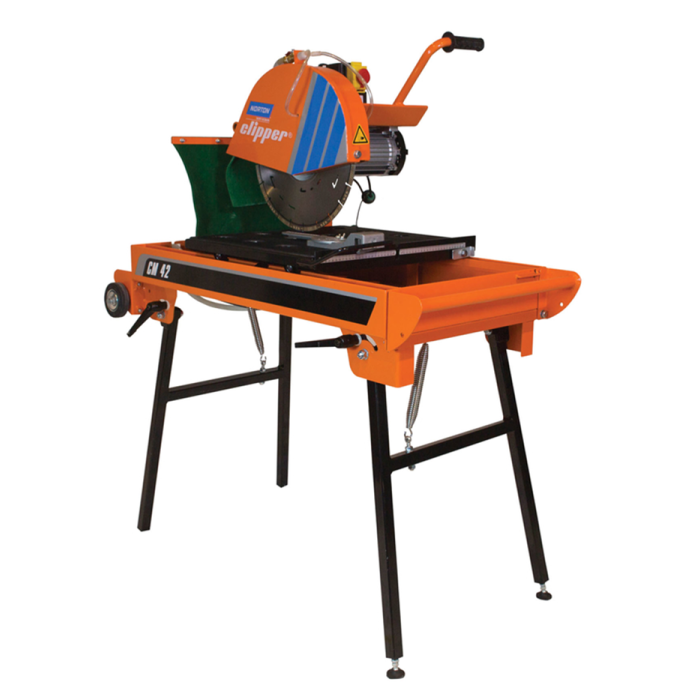

The Norton Clipper CM42 Compact is a lightweight, yet strong, accurate, highly-versatile and easy to use electrically-powered masonry saw is the perfect solution to a multitude of cutting applications, across a diverse range concrete and masonry products. Including bricks, blocks, pavers, concrete products, natural stones, roof tiles etc.
This powerful, high-performance, high-specification and highly-portable compact brick cutter is especially ideally suited for intermittent cutting jobs where precision, dependability and portability are key.

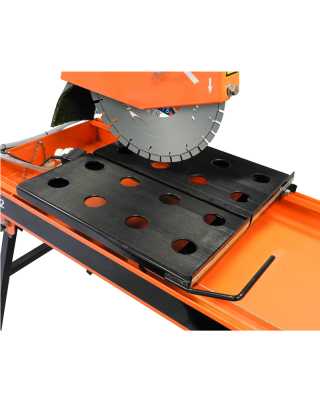

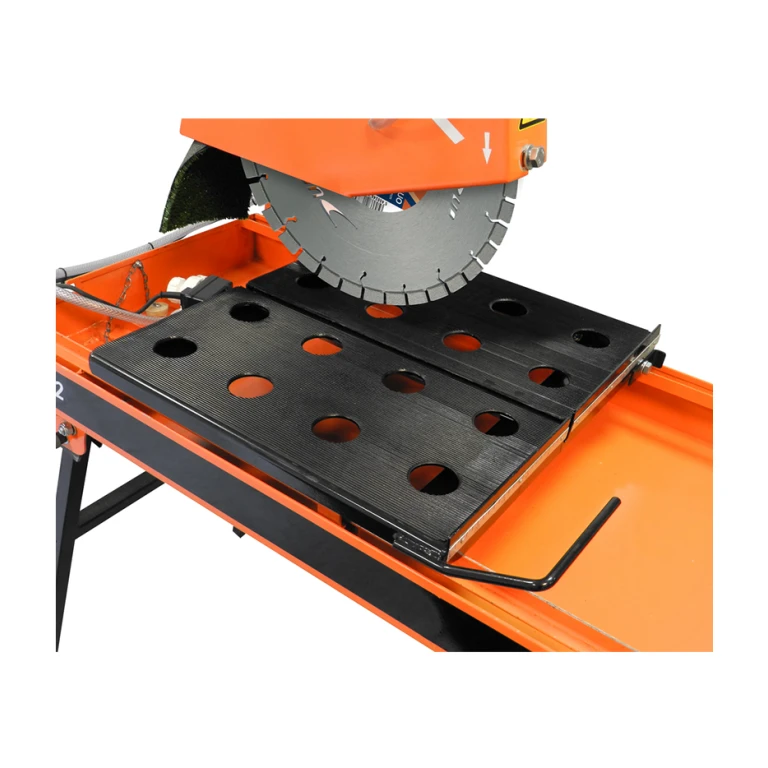

The Clipper CM 42 Compact features an usually wide and long sliding conveyor cart for a saw in its class, which makes it suitable for an even greater range of cutting duties, including used to cut a standard 60cm square concrete paving slab in half and is capable of being used with 14”/350mm or 16”/400mm diameter diamond blades alike, with a maximum cutting depth of up to 135mm and a generous cutting length of up to 620mm for added versatility.
It is additionally equipped with a spring-loaded cutting head, which can also be locked in a fixed position if required and subject to personal cutting preference, cutting depth control, a reinforced steel frame for precise cutting, folding legs and transport wheels for easy transportation to and around site, together with an integrated electric water pump that enables it to be used for wet or dry cutting applications, to name but a few of its performance enhancing features.
CM42 30.1.110V (110V 1ph) – (2.4Hp/1.8kW. Max cutting depth 110/135mm. Max cutting length 620mm. 90kg.
Minimum 32A, 5kVA continuous supply. See our transformer guide for more info.

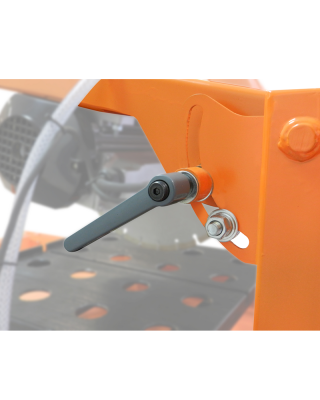

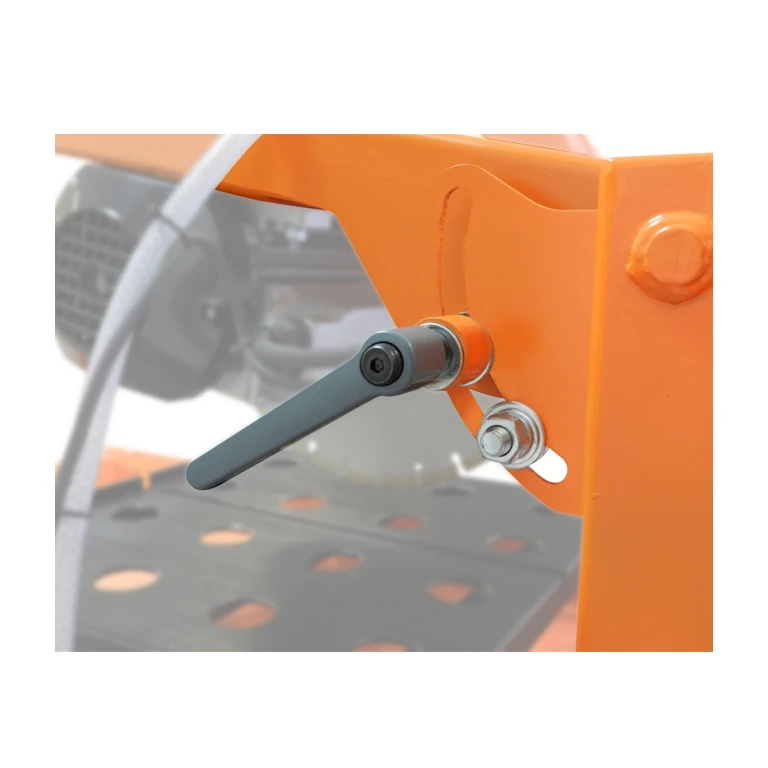

The CM42 Compact has a reinforced frame for improved durability, a strong, wider conveyor cart with tilted wheels and an anti-pivoting system which not only increases product stability, it improves cutting accuracy. The saw has a responsive, spring loaded cutting head and an easily adjustable cutting depth. Not only is the saw quick and easy to adjust, it can also be locked into the desired position of your choice. The conveyor cart of the saw has an anti-slip surface.
For added convenience and increased portability, the CM42 additionally features folding legs, cart lock, carry handles and transport wheels which make it easy to move, transport and store. The built-in electric water pump supplied enables materials to be wet cutting, which both cools the blade and suppresses the hazardous dust produced whilst cutting. Alternatively the saw be used as required if the material or circumstance dictates. The saw is equipped with an NVR starter overload protection too for added safety.
CM42 Compact
MPN
70184647990
Motor Power
2.4Hp/1.8kW
Voltage
110V Electric
Fuse
32A (1-phase)
Minimum Transformer
5kVA Continuous*
Blade Capacity
350mm/14″ / 400mm/16″
Bore Size
25.4mm/1″
Maximum Cutting Depth
110mm / 135mm
Maximum Material Height
200mm
Maximum Cutting Length
670mm
Table Size (W x L)
500 x 540mm
Dimensions (W x H x L)
660 x 1360 x 1187mm
Weight
90kg
HAV Rating
<2.5m/s²
