Clipper ISM Super 18/20″ Masonry Saw – 415V

Clipper ISM Super 18/20″ Masonry Saw – 415V

£5,890.80
£4,909.00 Exc. VAT
RRP £13,280.10 Inc. VAT

In stock

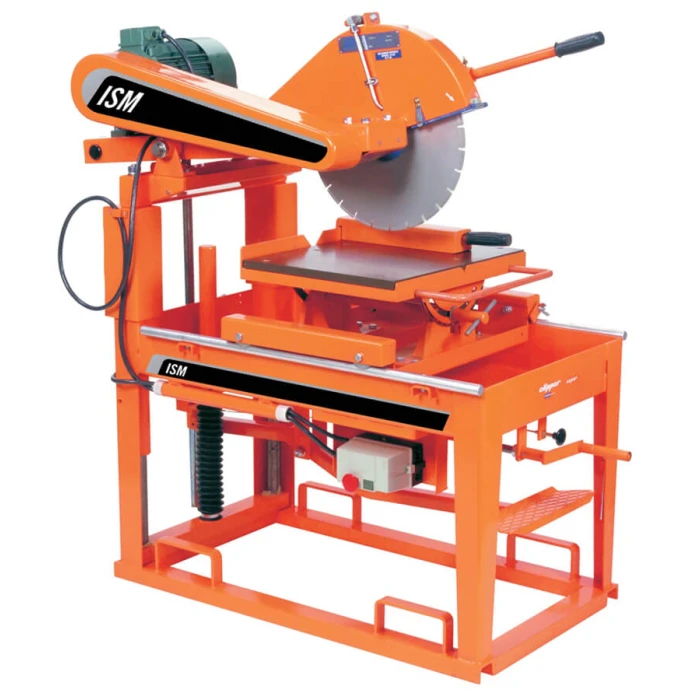

The Clipper ISM ‘Super’ is a strong, robust and powerful masonry saw which has been specifically designed for industrial cutting applications, refractory work and more demanding production use.

This high-performance and accurate saw with its 500mm maximum cutting length is highly recommended for cutting a wide range of smaller refractories, masonry materials, natural stones and concrete products. It is equipped with a powerful 5.5kW/7.5Hp 3ph motor and 4-belt drive for maximum power transmission and a high continuous cutting performance.

The Clipper ISM features both foot pedal and crank handle cutting height depth adjusters which provides the user with great control over their cut and maximum accuracy. It can used to cut both dry and wet (optional water distribution kit required for wet cutting). It also has an extended operating handle for optimum pressure application too.

Due to the cutting diversity of the Clipper ISM Super, the saw is perhaps unusually supplied without a cutting cart or a wet cutting kit as standard. These items are available as optional accessories. Optional accessories available for the ISM include a flat conveyor cart, a tilting table for angle cutting, a dust extraction cabinet for dry cutting (POA – Contact us for details) and a water distribution kit for wet cutting.


ISM 3.75.3 (415V 3ph) – (7.5Hp/5.5kW). 500mm cutting length. 165/190mm depth of cut. 248kg.

Although most commonly used for static, fixed use in industrial locations, the ISM is equipped with fork lift brackets for ease of movement.

Also available in the same Clipper ‘Super’ family of saws is the larger ISC, which also has an 18/20” blade capacity, but a longer 750mm cutting length, ideal for cutting physically larger materials.

Add Flat or Tilting Conveyor Cart
(not supplied with machine)
Flat Conveyor Cart for Clipper ISM
£1,005.60
£838.00 Exc. VAT
RRP £13,280.10 Inc. VAT
Qty:-
+
Flat Conveyor Cart for Clipper ISM

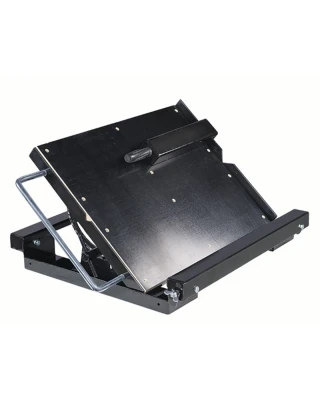

Tilting Table for ISM
£1,425.60
£1,188.00 Exc. VAT
RRP £13,280.10 Inc. VAT
Qty:-
+
Tilting Table for ISM
Add Water Distribution Kit
Clipper ISM & ISC Water Distribution Kit
£471.60
£393.00 Exc. VAT
RRP £13,280.10 Inc. VAT
Qty:-
+

In stock

(Delivery calculated at checkout)

SKU: Clipper-ISM
Share:

The Clipper ISM Super is highly-regarded for its power, robustness and high degree of cutting accuracy and high cutting performance

With its extra power and 4-belt power transmission which is usually absent from other similar masonry saws it is ideally suited for undertaking more demanding cutting applications and more continuous production use.

The ISM with its shorter 500mm cutting length, winding handle and foot pedal controlled cutting depth is better suited for cutting smaller sized concrete, masonry, natural stones and refractory products, like bricks, blocks, tiles etc. The larger ISC with its longer, more generous 750mm cutting length is better suited for cutting larger concrete products like slabs, kerbs, lintels and other similar masonry materials and refractory products.

The flat conveyor cart and tilting table for the Clipper ISM run on polyamide prismatic rollers with bearings on guiding tracks (rails) made from compact steel bars, the combination of which ensure a high degree of cutting accuracy and extended product life. It is this cutting accuracy and precision why the Clipper Super family of saws has long since been the favoured saws of use when cutting refractory products for lining industrial furnaces and core samples in laboratories.

Often refractory is required to be cut dry and is why neither the ISM or ISC ‘Super’ saws are supplied with a water distribution kit as standard (available as an optional extra). For dry cutting applications, the use of the optional dust extraction kit is highly recommended.





ISM 3.75.3
MPN 70184613985
Motor Power 7.5HP/5.5kW
Voltage 415V Electric
Fuse 32A (3-phase)
Blade Capacity 450mm/18″ / 500mm/20″
Bore Size 25.4mm/1″
Maximum Cutting Depth 165mm / 190mm
Maximum Material Height 355mm
Maximum Cutting Length 500mm
Table Size – Flat Table (W x L) 615 x 465mm
Table Size – Tilting Table (W x L) 580 x 455mm
Dimensions (W x H x L) 760 x 1750 x 1400mm
Weight 248kg
HAV rating <2.5m/s²
