Battipav VIP 2125 8” Rail Saw (x1250mm) – 110V


Battipav VIP 2125 8” Rail Saw (x1250mm) – 110V

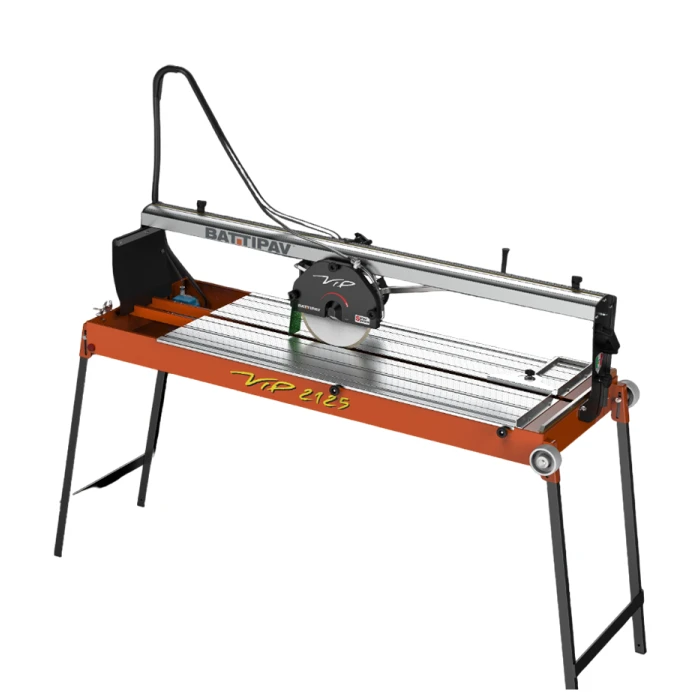

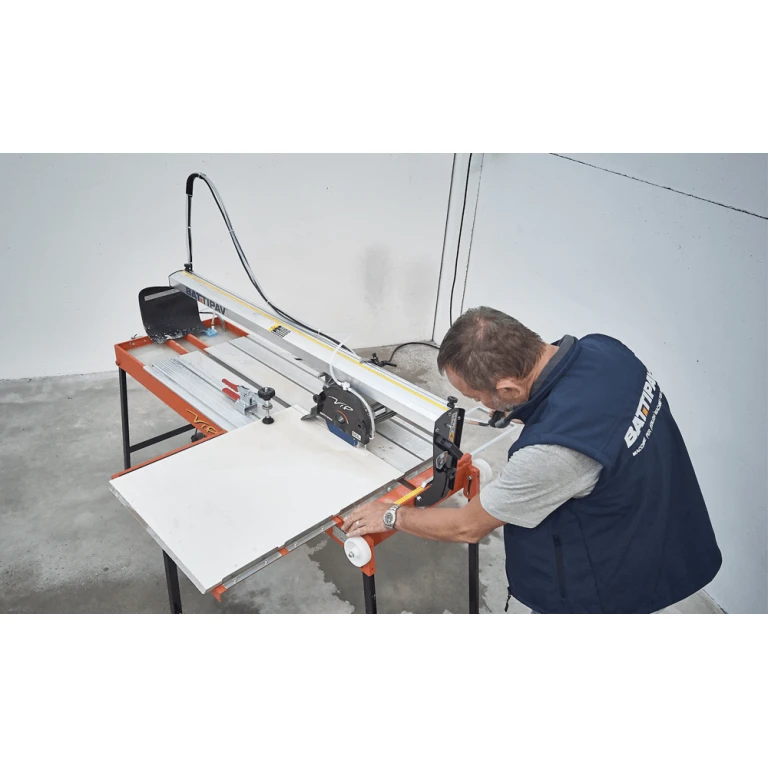

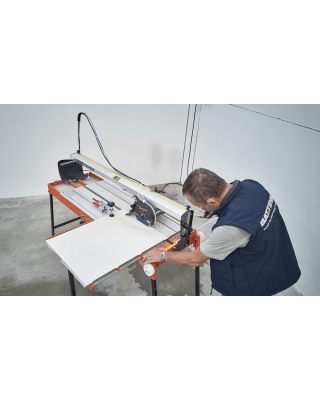

The VIP 2125 is a compact, powerful, portable and precise bridge tile saw with an 8”/200mm blade and a generous 1250mm cutting length, making it ideally suited for producing straight and 45o angle cuts on large format products, including single and double-fired ceramics, floor tiles, wall tiles, porcelain, limestone, marble, granite etc. It has maximum cutting depth of up to 40mm @ 90o and 35mm @ 45o, together with the capability of diagonally cutting tiles up to 880 x 880mm for added versatility.

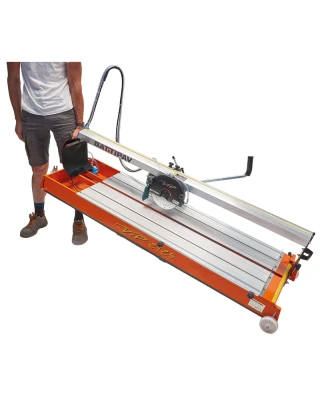

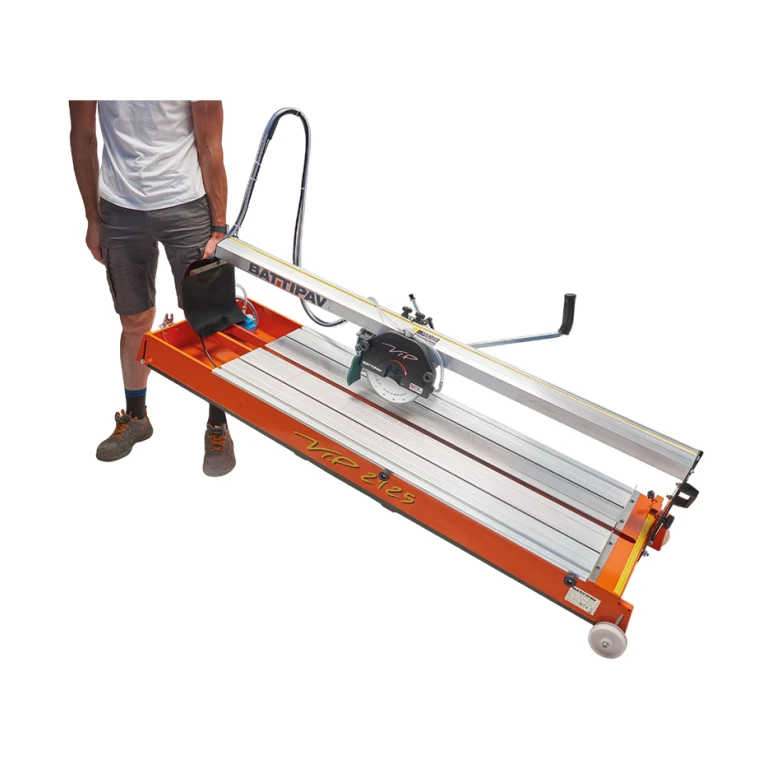

This lightweight and effective ceramic, porcelain and stoneware wet saw is quick and easy to set up, use, clean, transport and store too. It is supplied with folding legs, carry handles and transport wheel set for added portability and ease of transportation, with a large and extendable (optional extra) worksurface for improved material handling and stability too.

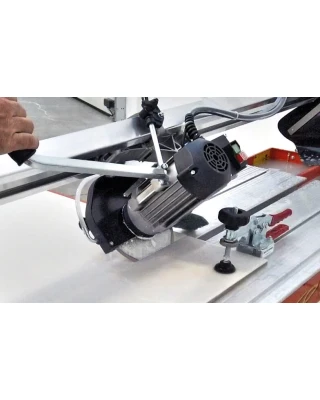

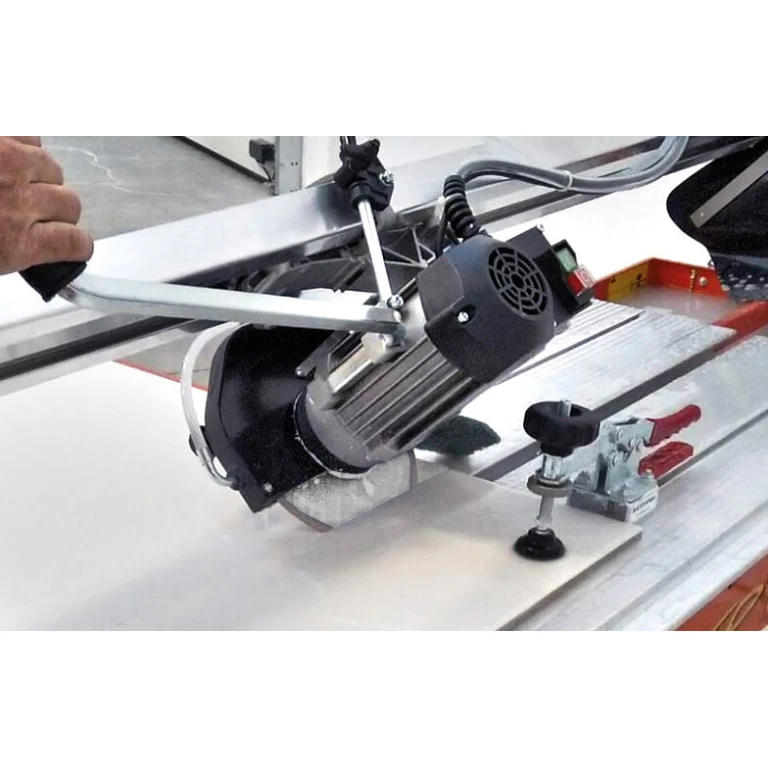

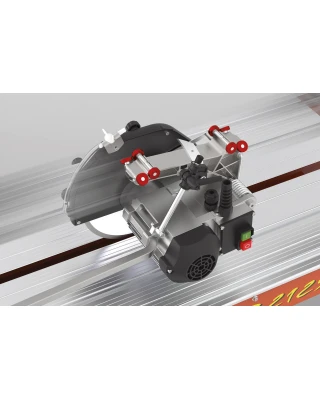

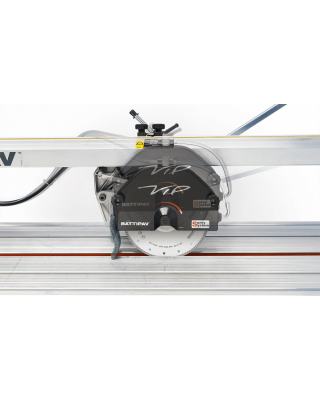

It features a 1.8Hp/1.4kW single-phase (110V) electric motor, with a ng motor carriage that slides on 8 ball-bearings on a strong and rigid interchangeable stainless steel overhead track for improved cutting accuracy, with an integrated electrically powered recirculating Battipav S1/4 water pump that facilitates both wet and dry cutting as required. The convenient pull handle makes easy work of cross cutting, whilst the incorporated head lock provides plunge cuts for inserts into materials. It also has an insulated blade guard that lowers noise levels and a patented water spray system for improved blade cooling when wet cutting.
VIP 2125 (110V 1ph) – (1.8Hp/1.4kW). Max cutting length 1250mm. Max depth of cut 35/40mm (45o/90o). 52kg.
Minimum 16A, 2.5kVA continuous or 5kVA intermittent supply. See our transformer guide for more info.

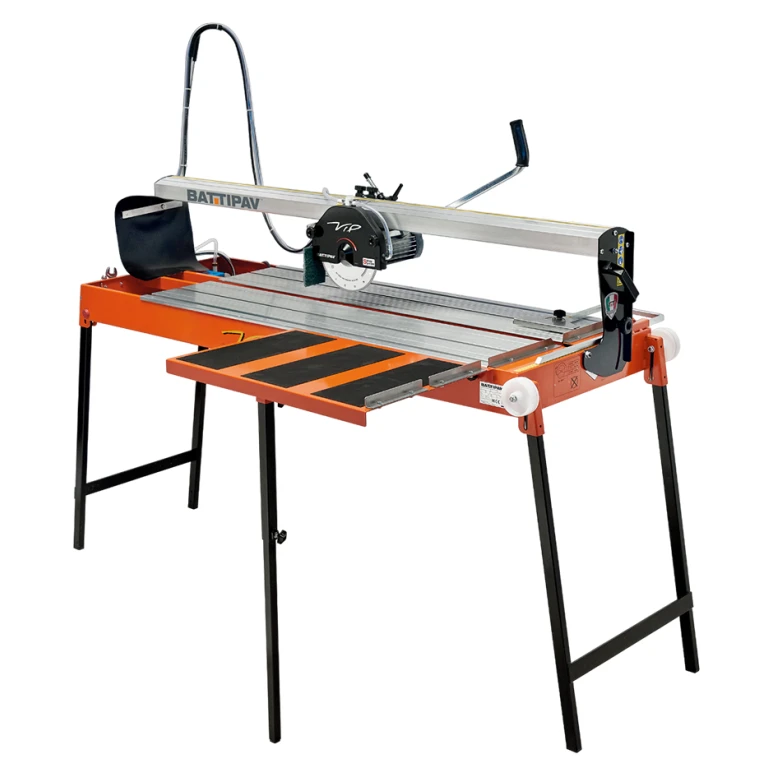

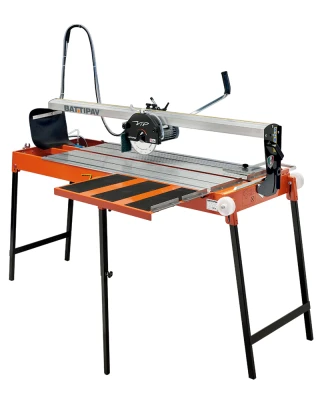

Supplied with a complimentary 8”/200mm dia. Battipav TNSB200W Special Cut turbo diamond blade designed to wet cut ceramic tiles and natural stones. In addition, a convenient side extension table and 8”/200mm dia. Battipav TNSP200W Premium Special Cut turbo diamond blade designed to cut porcelain and other harder natural stones and tiles are available as optional extras.
Battipav are a leading and highly-regarded Italian manufacturer who have specialised in the design and production of tile cutters and wet saws used in construction for over forty years; with Italy considered by many to be the home of natural stones used in construction and stone cutting equipment.
In stock
| VIP 2125 | |
| MPN | 857/A |
| Motor power | 1.8Hp/1.4kW |
| Voltage | 110V Electric |
| Thermic Protection | 160°C |
| Fuse | 16A (1-phase) |
| Minimum Transformer | 2.5kVA continuous or 5kVA intermittent* |
| Blade Capacity | 8″/200mm |
| Bore Size | 1″/25.4mm |
| Rotational Speed | 2800rpm |
| Maximum Cutting Depth (90°) | 40mm |
| Maximum Cutting Depth (45°) | 35mm |
| Maximum Cutting Height (2 passes) | 55mm |
| Maximum Cutting Length | 1250mm/50″ |
| Max Tile Size For Diagonal Cutting | 880 x 880mm |
| Dimensions (W x H x L) | 630 x 1200 x 1120mm |
| Working Table Size (W x L) | 1170 x 520mm (without optional side extension) |
| Water Pump Model | Battipav S1/4 standard (replacement pump product code: P1) |
| Weight | 52kg |
*See our transformer guide for more info.
