Norton Clipper CST120A 14” Bridge Saw (1.2m) – 110V

Norton Clipper CST120A 14” Bridge Saw (1.2m) – 110V

£3,636.00
£3,030.00 Exc. VAT
RRP £7,728.00 Inc. VAT

In stock

The Norton Clipper CST120A (Aluminium) is a high precision, premium-quality professional bridge saw with a 14” blade capacity and a 1200mm (1.2m) maximum cutting length. It provides users with the power of a masonry saw with the cutting length of an extended tile saw.

This strong, robust and high-performance radial cutter features a 1.8kW single-phase motor and is perfect for the straight and angle cutting of a diverse range of ceramic, porcelain and vitrified floor and wall tiles, together with a comprehensive range of concrete and masonry building materials, as well as natural stone products like marble, granite and limestone.

It has a premium modular aluminium construction with rigid chrome-plated dual overhead guiding rails which ensure accuracy over the entire 1200mm (1.2m) cutting length. It is equipped with a tilting cutting head with screw feed cutting depth control for the easy cutting of mitres, an integral electric water pump for wet cutting and has an anti-slip rubber layered table for improved material stability and improved cutting accuracy. It is also supplied with a side extension table and transportation wheel kit as standard too.


CST120A (110V 1ph) – (2.4Hp/1.8Kw). Max cutting length 1200mm. Max depth of cut 110mm (@90°). 90kg.

Minimum 16A, 3kVA continuous or 5kVA intermittent supply. See our transformer guide for more info.

Why not add to your purchase a Clipper 14” Extreme Gres diamond blade specially-developed for cutting porcelain products and hard tiles for the concessionary low price of just £125.00 +VAT (RRP: £295.00 +VAT)?

£3,636.00
£3,030.00 Exc. VAT
RRP £7,728.00 Inc. VAT
Add a Norton Clipper Diamond Blade?

In stock

(Delivery calculated at checkout)

SKU: CST120Alu
Share:

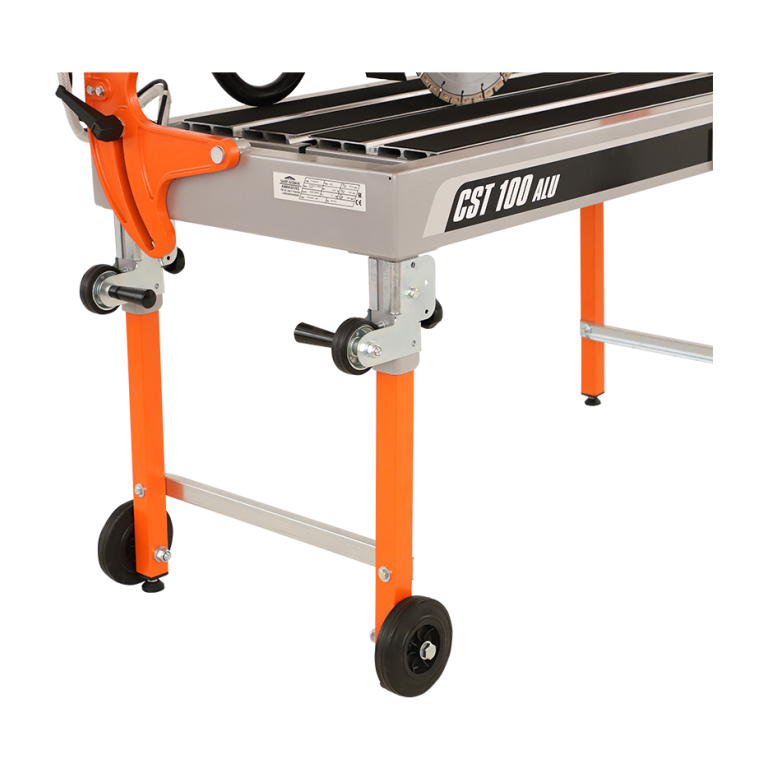

Despite the obvious physical size of the Clipper CST100 ALU, it is surprisingly easy to move to and around site, thanks to its reduced-weight aluminium construction and incorporated folding legs, carry handles and transportation wheels.

Despite the obvious physical size of the Clipper CST120 ALU, it is surprisingly easy to move to and around site, thanks to its reduced-weight aluminium construction and incorporated folding legs, carry handles and transportation wheels.

This strong, powerful and precise premium-quality cutter is ideal for cutting a wider range of materials rather than just larger sized tiles like other competitor models, thanks to its generous blade capacity (14”/350mm), maximum cutting depth of 110mm (@ 90o) and powerful 2.4Hp/1.8kW single-phase motor.

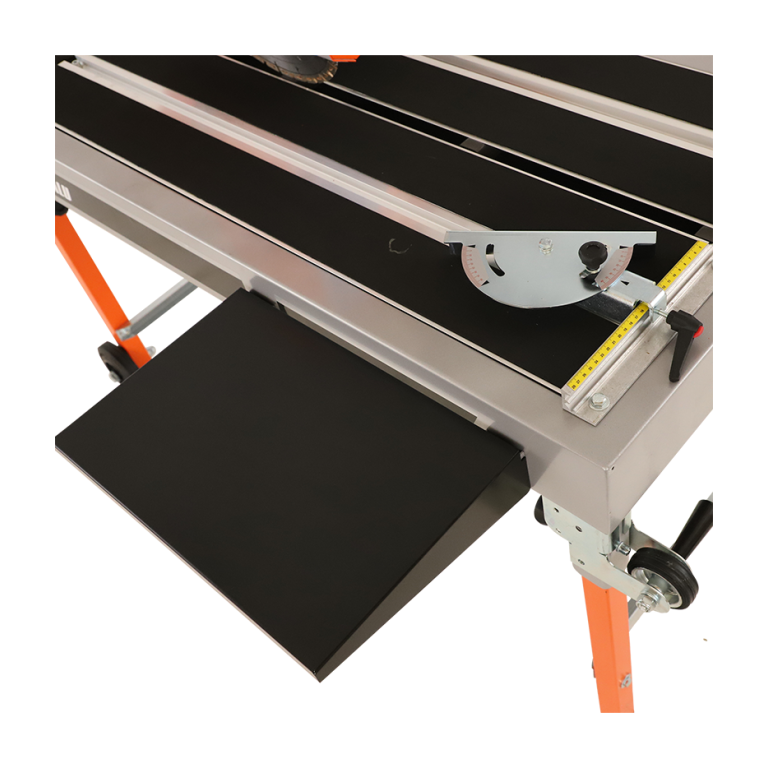

It is manufactured using premium-grade materials and quality components throughout to ensure optimum cutting performance and accuracy. It features a number of product refinements which are uncommon on saws in its class, like an anti-slip rubber layered table for improved material stability and a transportation wheel kit. The side extension table supplied with the CST120 ALU as standard, increases the table width from 660mm to 960mm and in doing so, provides a larger work surface for materials to be laid on for improved product stability and enhanced cutting accuracy.

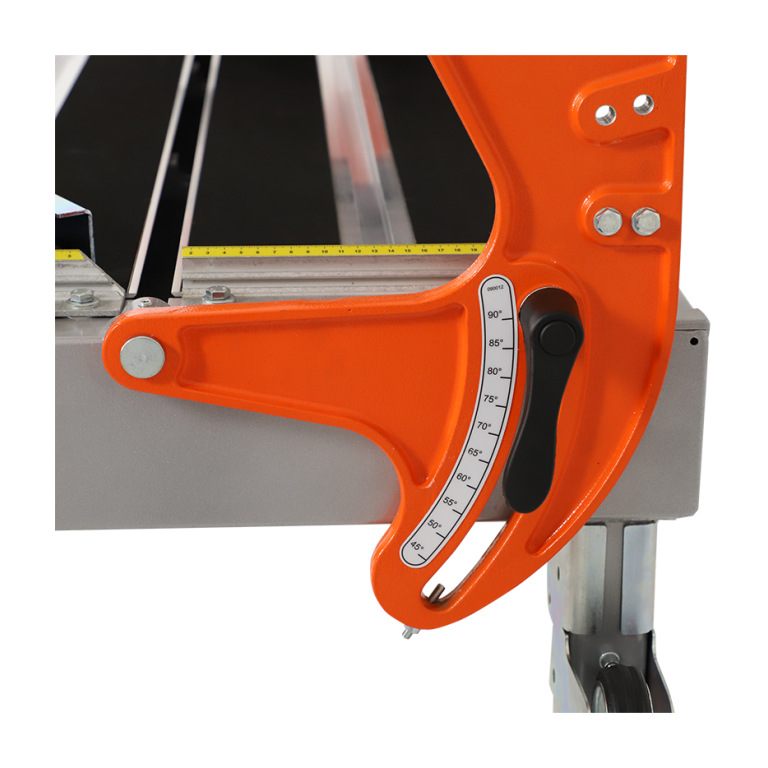

The CST120A is also equipped with a tilting cutting head (45°) with screw feed depth control for easy mitre cutting.

To further compliment the cutting performance of the CST120A Norton Clipper have developed the Extreme Gres diamond blade, designed specifically to cut dense and hard materials like porcelain up to 3cm (30mm) thick. The Clipper Extreme Gres features revolutionary 15mm high jointed segments that provide a smooth, fast cut and a long blade life.

CST120A
MPN 70184602125
Voltage 110V
Fuse 16A (1-phase)
Minimum Transformer 3kVA Continuous, 5kVA Intermittent*
Motor Power 2.4Hp/1.8kW
Max. Cutting Length 1200mm
Blade Capacity 350mm
Maximum Cutting Depth (90º) 110mm
Maximum Cutting Depth (45°) 80mm
Maximum Material Height 130mm
Bore Size 25.4mm/1″
Overall Dimensions (L x W x H) 1630 x 660 x 1350mm
Weight 90kg
HAV Rating <2.5m/s²

*See our transformer guide for more info.

Should you require clarification on a product before ordering or assistance post ordering, please do not hesitate to contact our sales & support team on 0116 260 2601 (+44 116 260 2601 outside the UK) between 8:30AM and 5.00PM Monday to Friday (excluding Bank and Public Holidays), or via email; [email protected]. Alternatively you can fill out the contact form on our contact us page.

If you have question regarding cancellation, returns or damages please refer to our Delivery & Returns page or again contact us to clarify.

If your query is related to the warranty or repair of a product, again please contact us to discuss your issue or refer to our Service & Repair page.
