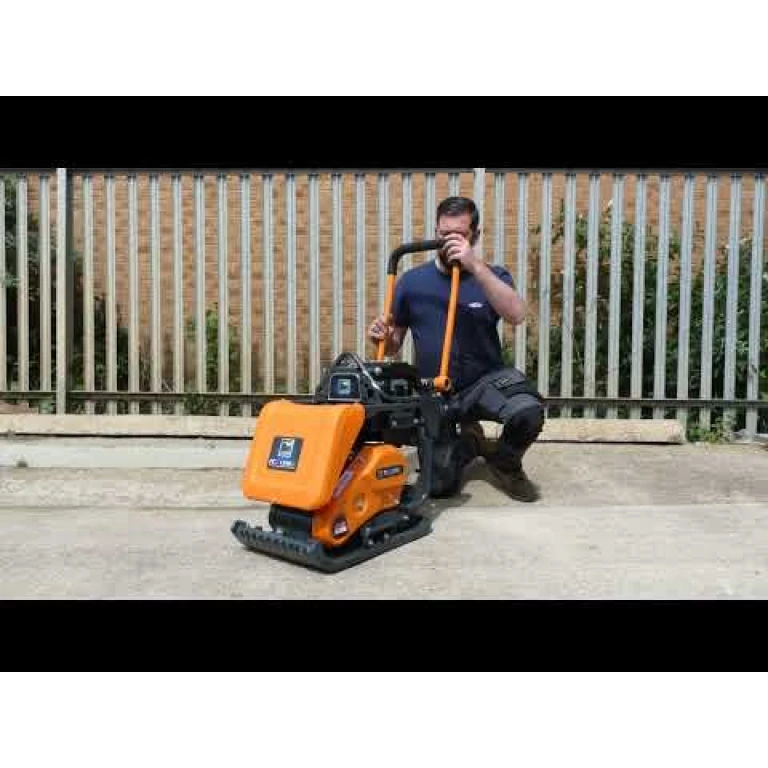

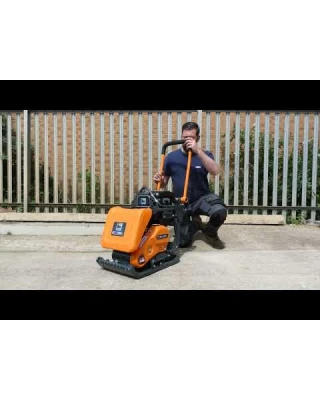

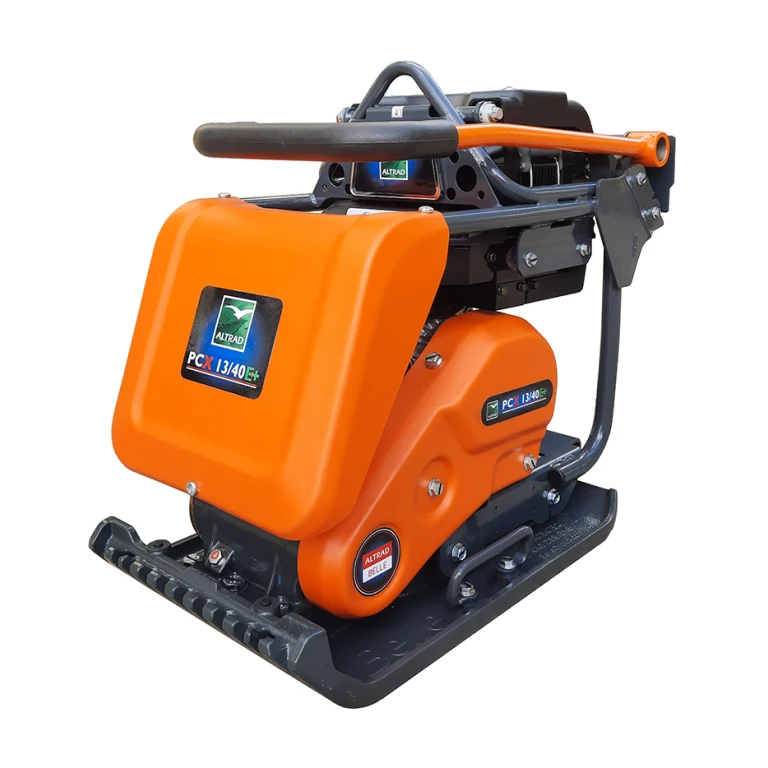

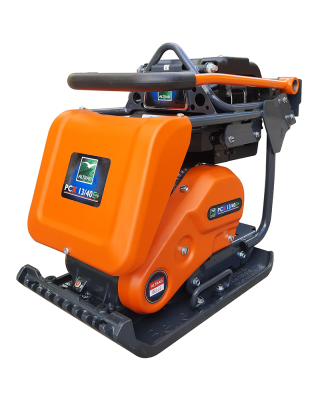

Altrad Belle 16” PCX 13/40E+ Plate Compactor (13kN) – Battery

Altrad Belle 16” PCX 13/40E+ Plate Compactor (13kN) – Battery

From £1,198.80
From £999.00 Exc. VAT
RRP From £2,828.40 Inc. VAT

In stock

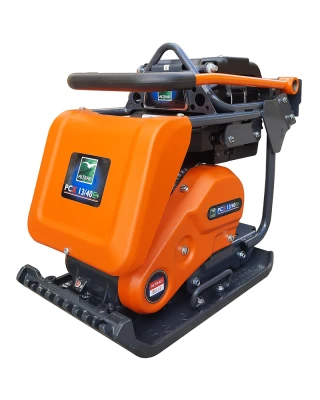

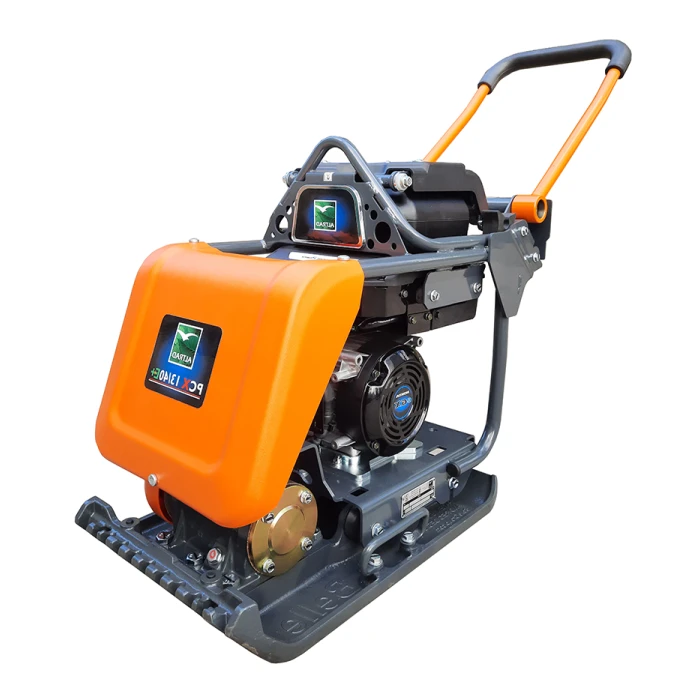

The Belle PCX13/40E+ is a high performance, heavyweight Li-ion battery powered plate compactor which is emission free, low noise, environmentally friendly, suitable for outdoor and indoor use, as well as use in poorly ventilated and noise sensitive areas.

It provides even greater, hard hitting compaction performance than its petrol counterpart (the PCX13/40), but without the environmental impact and with the added convenience and user benefits that battery powered products offer, considerably lower operating costs being just one.

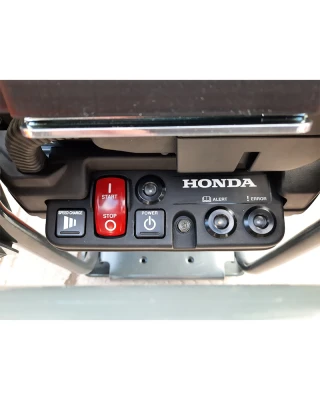

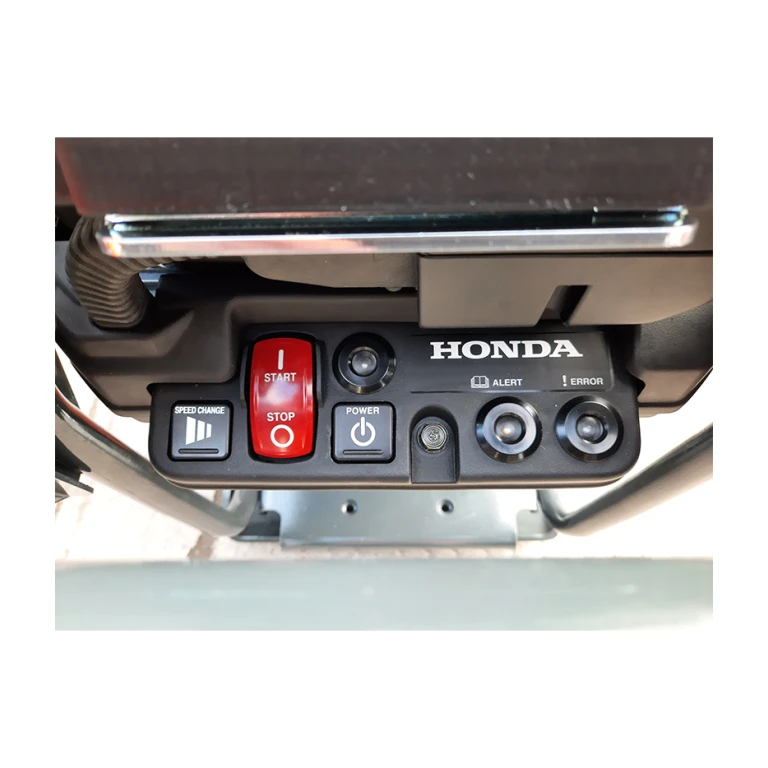

Using a PCX13/40E+ could not be easier, literally push a button to start and stop – no choke or recoil start, or select one of the 3 travel speeds available to best suit the job in hand by the simple push of a button too. Being battery powered, there is of course no engine to maintain, filters to change etc either.

PCX 13/40E+ (Honda Battery) – (2.2Hp/1.6kW). 400mm wide. 13kN centrifugal force. 20 m/min travel speed. 89kg.

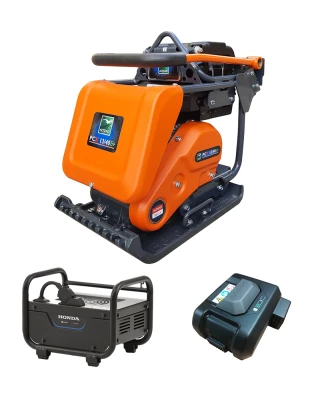

The PCX 13/40E+ can be purchased as a package (consisting of PCX13/40E+, 1 x Honda EGX battery, 1 x EGX charger, 1 x wheel kit and 1 x battery storage box) or in component parts to suit individual needs.

From £1,198.80
From £999.00 Exc. VAT
RRP From £2,828.40 Inc. VAT
Pick Your Option
PCX 13/40E+ Machine Only
£1,198.80
£999.00 Exc. VAT
RRP From £2,828.40 Inc. VAT
Qty:-
+
PCX 13/40E+ Machine Only
PCX 13/40E+ Package
£2,265.60
£1,888.00 Exc. VAT
RRP From £2,828.40 Inc. VAT

In stock

Qty:-
+
PCX 13/40E+ Package
Add Optional Extra's

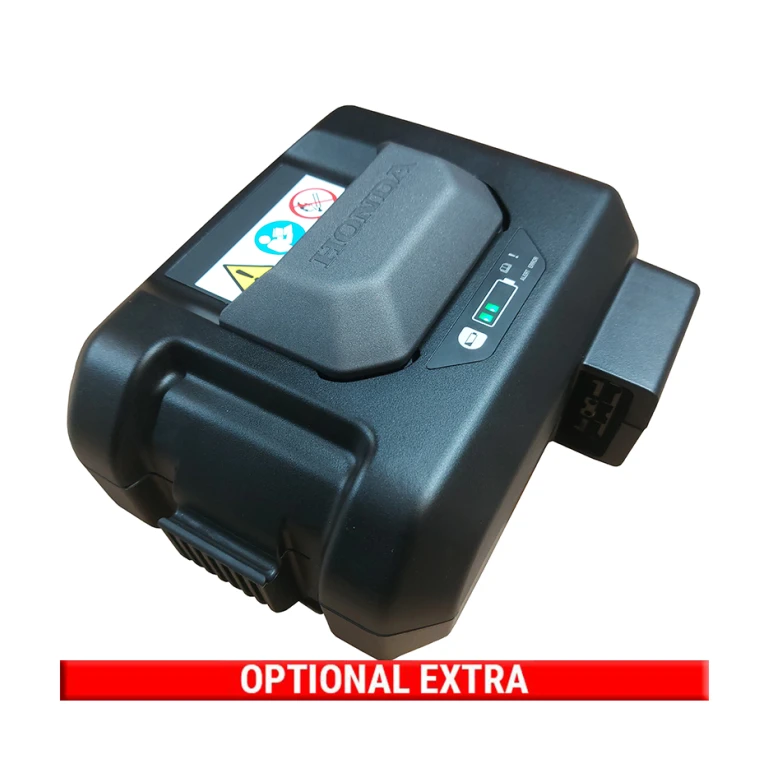

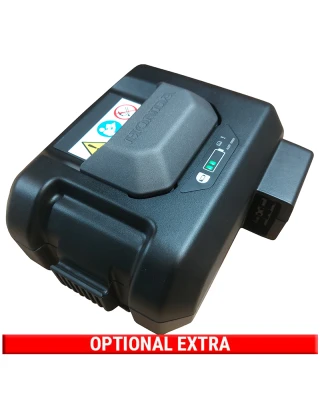

Honda B750 72V Battery (10.42Ah)
£600.00
£500.00 Exc. VAT
RRP From £2,828.40 Inc. VAT
Qty:-
+
Honda B750 72V Battery (10.42Ah)
Honda C700 Quick Charger
£360.00
£300.00 Exc. VAT
RRP From £2,828.40 Inc. VAT
Qty:-
+
Honda C700 Quick Charger

(Delivery calculated at checkout)

SKU: PCX13/40E+
Share:

The Belle PCX range consists of 9 standard models, the midweight 14” PCX60A (PCU02) , heavyweight 14” PCX12/36 (FC3600E) and 16” PCX13/40 (FC4000E), the newly introduced battery powered 16” PCX13/40E+ (FC4050), the high performance 18” PCX16/45 (MC4501) and 20” PCX16/50 (MC4551), the 20” PCX17/50A (PCA01) designed specifically for asphalt and Macadam surfaces and the flagship of the range, the 18” PCX20/45 (FC4500E) and 20” PCX20/50 (FC5000E).

All PCX plates are engineered to be robust, durable and withstand the rigours of rental and heavy contractor usage. They feature multiple handling lift points and a centrally located lift point for easy loading and unloading.

The PCX13/40E+ is fitted with a robust, highly efficient brushless Honda eGX motor. This motor is powered by Honda eGX Lithium ion batteries which can also be used to power than products and machines which use the same eco battery system – the range of products that do will continue to emerge and grow.

This environmentally friendly and emission free plate is suitable for a wide and diverse range of compaction tasks and is especially suited for use indoors, in poorly ventilated areas such as basements, tunnels, trenches etc and other poorly ventilated areas. It is also the perfect plate of choice for use in noise sensitive and restricted areas thanks to its lower operating noise levels.

It features a high performance 13kN vibrator with top quality bearings which is sealed and oil-filled with for reliability and durability, and has an even greater compaction performance than its heavy hitting counterpart, but without the added operating and maintenance costs.

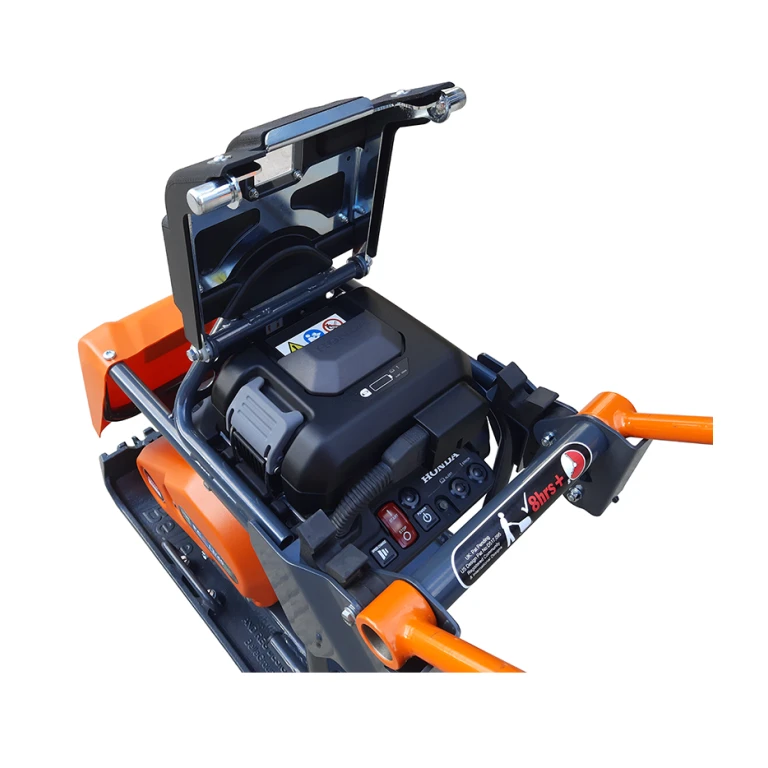

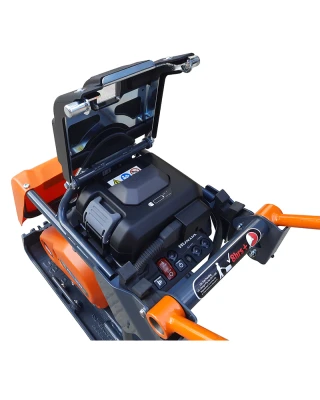

The PCX13/40E+ additionally features a reinforced centrifugal clutch which ensure longer belt life and simplified belt adjustment, together with a robust protective battery housing and cover, set within the sub frame of the plate. Its heavy duty incorporated spraybar is fully protected from damage and has angled holes which allows complete water coverage over the full width preventing any material pick-up on the plate bottom.

It can also be used with a paving pad, wheel kit and/or water kit (9.5 litre water tank) which are available as optional extras.

PCX 13/40E+
MPN FC4050E
Motor Honda eGX
Nett Power 2.2Hp/1.6kW

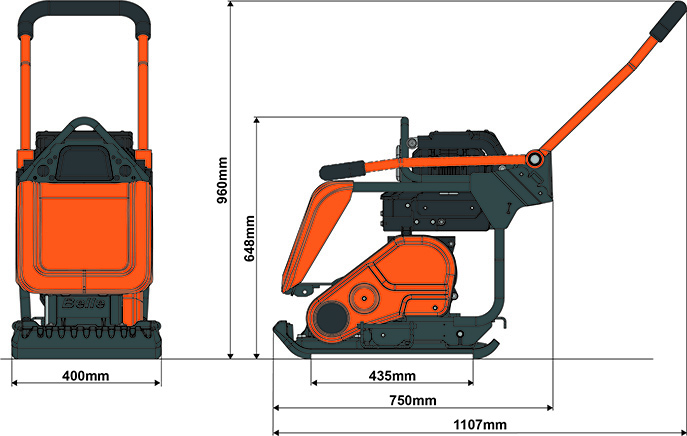

Plate Size 400 x 606mm (W x L)
Height – Operation 960mm
Length – Operation 1107mm
Width 400mm
Static Pressure 560kg/m²
Centrifugal Force 13kN
Travel Speed 20m/min
Vibration Level 2.5m/sec²**
Weight 89kg*
Our Price (Exc. VAT) From £999.00

*Li-ion battery and optional extras not included (water spray kit, wheel kit and/or paving pad)

**OPERC independent testing/vibration levels tested to BS5349 using EN500-4
