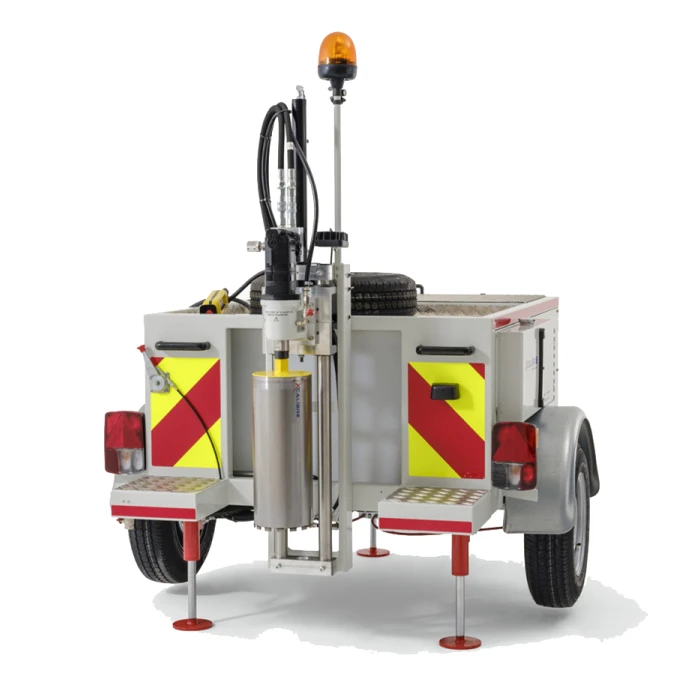

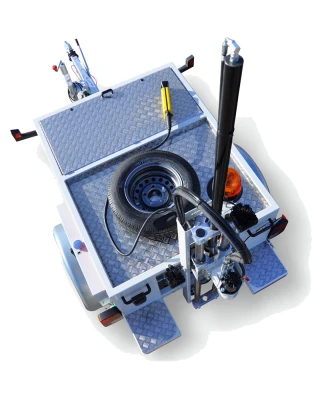

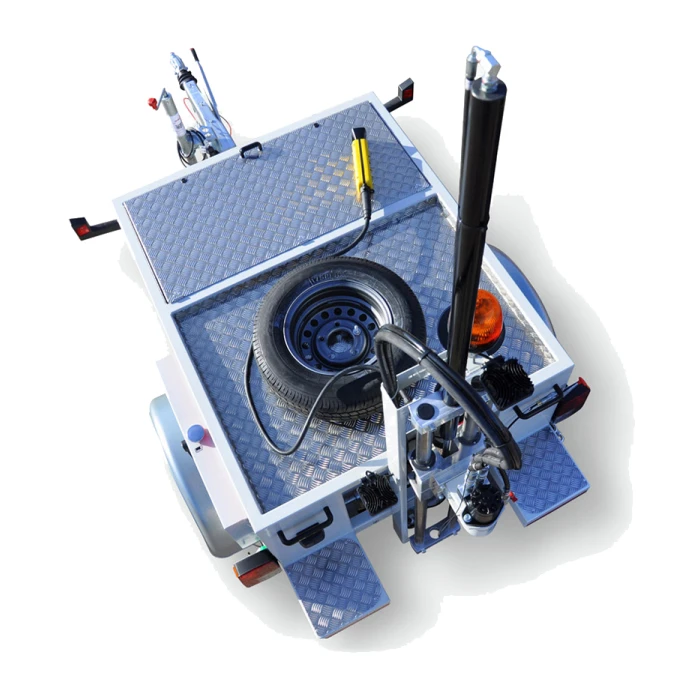

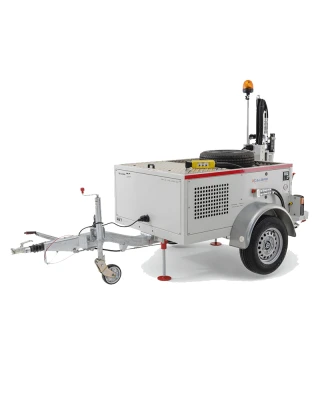

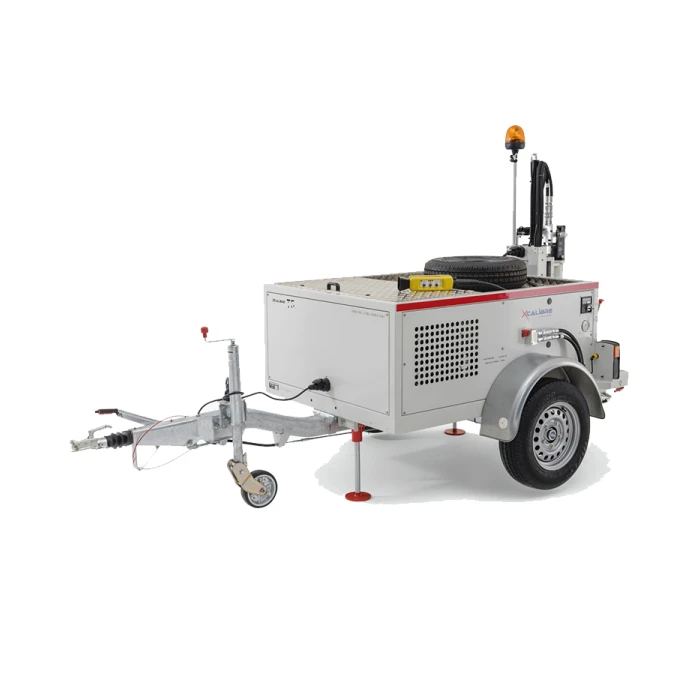

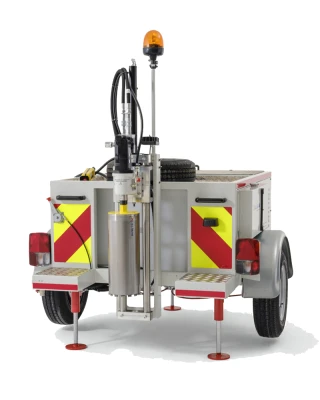

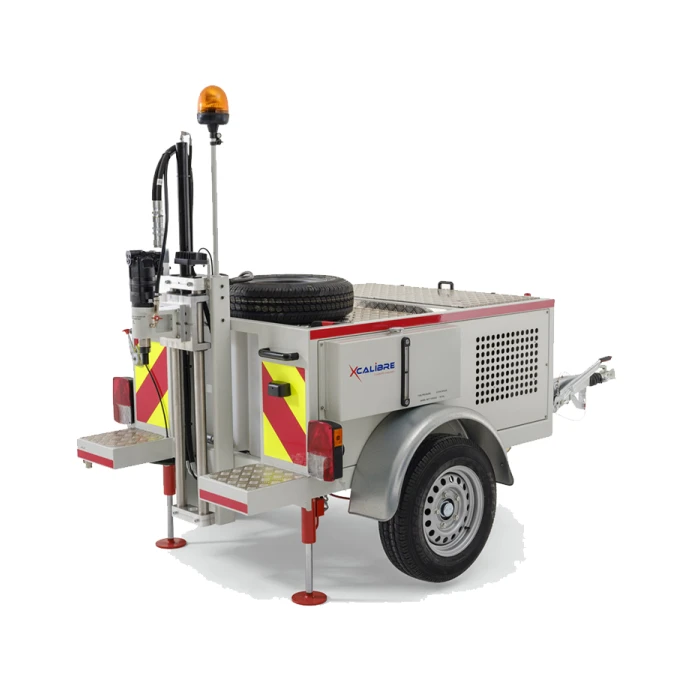

Xcalibre T5D Trailer Drill Rig (800mm Ø) – Diesel

Xcalibre T5D Trailer Drill Rig (800mm Ø) – Diesel

From £50,520.00
From £42,100.00 Exc. VAT

Contact For Availability

The XCalibre T5D is a compact and rugged trailer drill rig which has a 20 litre fuel tank and a 410 litre water tank, which makes it suitable for 6 to 8 hours of normal working use and ideally suited for producing concrete and asphalt core samples in roads, car parks and airport runways alike, up to 800mm in diameter.

This diesel-powered, hydraulically-driven diamond drilling trailer is highly-manoeuvrable, with performance and productivity levels that outperform all manually fed or direct engine driven machines. It is perfectly suited for use in both isolated and remote locations, thanks to it being fully self-contained.

The T5D is equipped with a unique soft start drilling feature and an automatic proportional drill feed control system, which provides easier adjustments through different materials and is also ideal for inexperienced operators. It additionally features hydraulically operated stabilisers all-round and is effortlessly controlled via a remote wired-handset, for fast, simple and safe operation. It has an unlaiden weight of 940kg and a maximum laiden weight of 1350kg.


T5D – 20kW Kohler Diesel (electric start). Max Drill Diameter 800mm. Drill Travel 700-1200mm.

The XCalibre ‘T5’ is also available with the option of a petrol engine, a single or two speed hydraulic motor and a choice of 700m 1000 and 1200mm drill stroke options (can be used with extension bars for deeper drilling applications). Other optional extras include a Power-Take-Off (PTO) facility, which is ideal for driving other compatible hydraulic equipment, such as breakers, tampers etc.

Contact For Availability

SKU: t5d-drilling-trailer
Share:

XCalibre T5D Trailer Drill Rig, Diesel
MPN T5D
Engine/Output 20kW Kohler Diesel
Engine Starting System Electric Start
Drill Motor Type/Drill Bit Type Hydraulic 0-1150rpm up to 5.5kW
Max Drill Diameter 800mm
Standard Drill Bit Travel 700mm
Max Effective Drilling Length 650mm
Core Drill Bit Connection 1¼” UNC Male
Drill Mast Type Fixed Mast
Drill Bit Lowering/Lifting/Feed Hydraulic with automatic proportional feed system
Fuel Tank Capacity 20 litres (6-8 hours operation)
Water Tank Capacity 410 litres with 200mm diameter filter
Hydraulic Oil Capacity 30 litres
Sound Power Level (LWA) 103db
Sound Pressure Level (LPA) 92db
Vibration Level – 3 Axis (ISO 28927-5) <3.2ms/s²
Hour Meter Yes
Control Panel Location Wired Handset
 Colour RAL 7035 (Light Grey)
Safety Emergency Stop on wired stop
Chassis AL-KO galvanised T-type chassis
Braking System ECE R13 approved inertia (overrun)
Parking Brake Yes, with hexagonal rubber suspension system and height adjustable jockey wheel
Machine Approvals CE and German TUV approval for road travel
Tyres 175R14C 99/98N Tyres
Vehicle Category (trailer) O2, Maximum authorised mass, MAM = 1500kg
Vehicle Homologation (trailer) European Community Whole Vehicle Type Approval (ECWVTA with regard to Directive 2007/46/EC)
Speed (maximum approved) 140 km/h
Dimensions (L x W x H) 3450 x 1750 x 1940mm
Weight (unlaiden/total permissible) 940kg/1350kg
