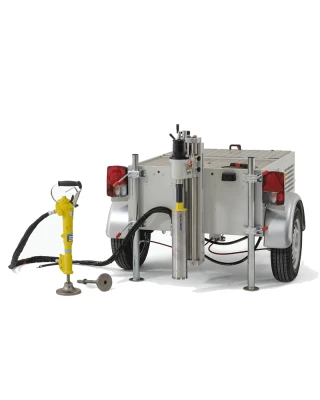

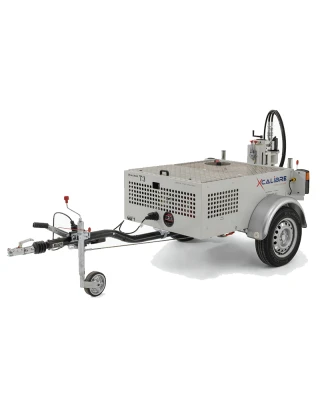

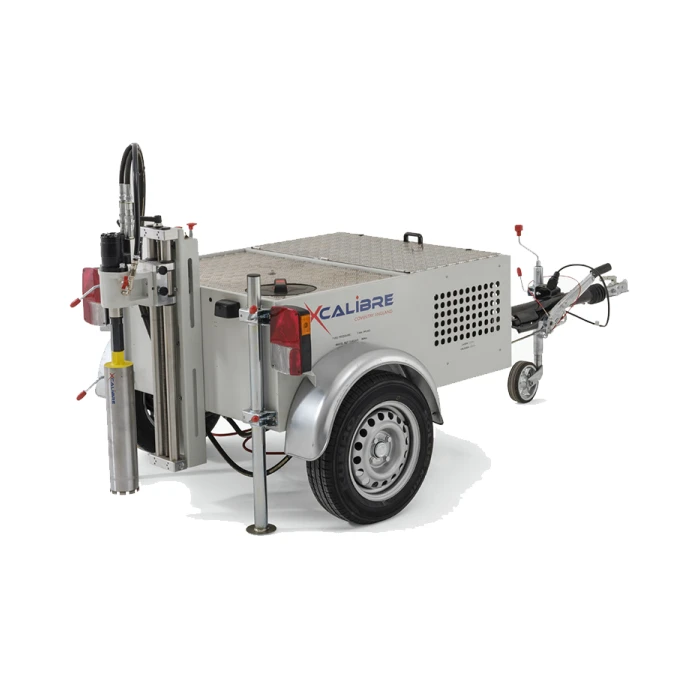

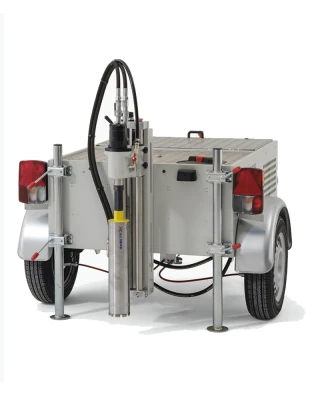

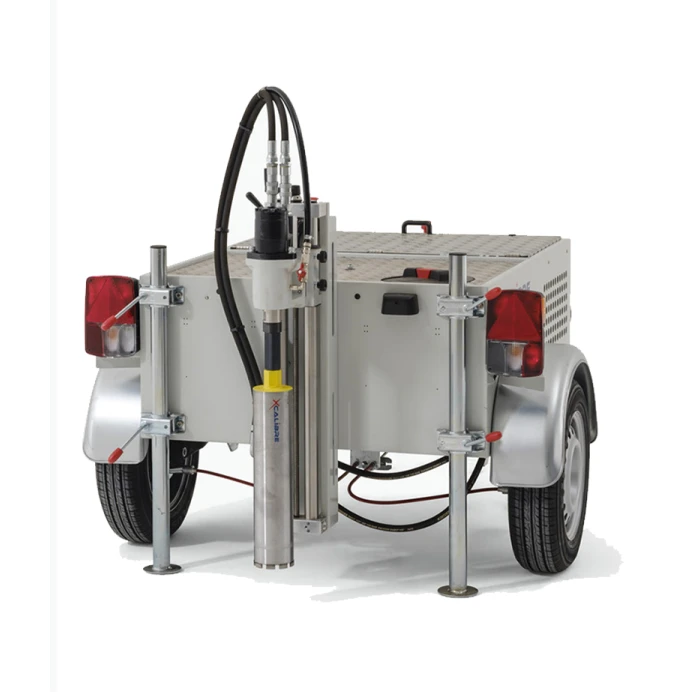

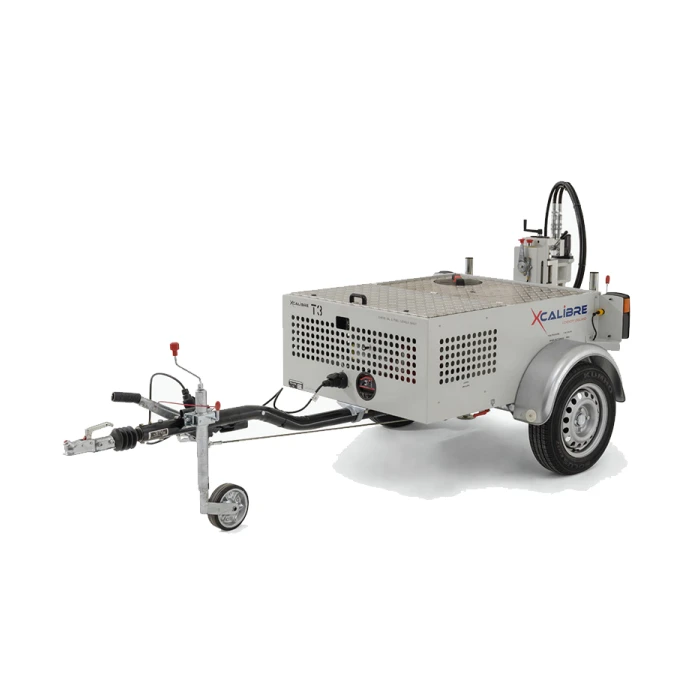

Xcalibre T3P Trailer Drill Rig (300mm Ø) – Petrol

Xcalibre T3P Trailer Drill Rig (300mm Ø) – Petrol

From £22,680.00
From £18,900.00 Exc. VAT

Contact For Availability

The XCalibre T3P is an ultra-compact, lightweight, yet rugged trailer drill rig which is highly mobile, highly manoeuvrable, easy to operate and easy to maintain. It is the smallest towable core drill rig in the XCalibre range and features a detachable hydraulically-powered drill motor and water swivel for added versatility, suitable for one person operation for added convenience, which is ideally suited for taking asphalt or concrete core samples up to 300mm diameter in pathways, pavements, care parks, roads etc, as well as use in other remote and isolated locations.

This fully self-contained hydraulic driven coring trailer is equipped with a manual drill feed control via a simple winding handle which provides small controllable adjustments through different materials, with a 5.3 litre tank and a 200 litre water tank which makes it suitable for up to 4 hours of normal working use.

This petrol-powered, hydraulically-driven diamond drilling trailer has a very low weight to power ratio and can be towed by a small or medium size car or van with a 50mm European style tow hitch.

The XCalibre T3P is equipped with manually operated stabilisers, has a single speed hydraulic motor, with an unlaiden weight of 290kg and a maximum laiden weight of 495kg.


T3P – 8hp Petrol (electric start). Max Drill Diameter 300mm. Drill Travel 700mm.

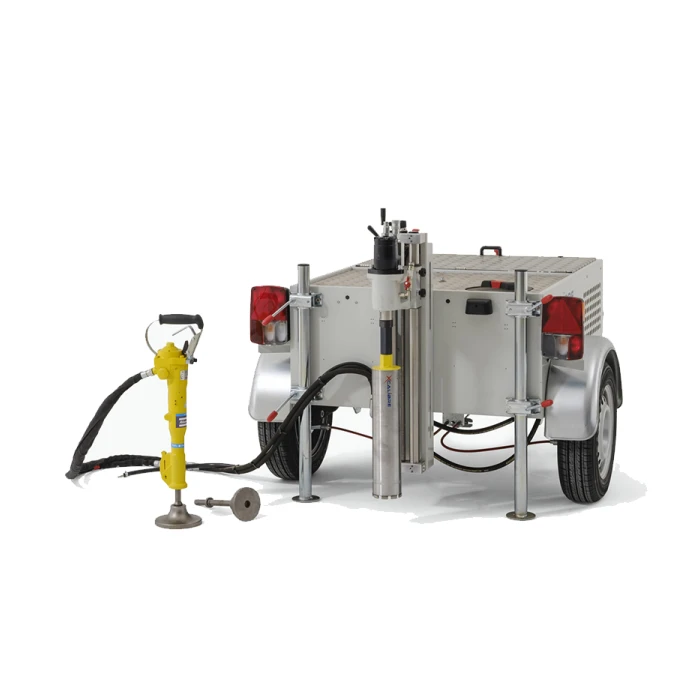

The XCalibre ‘T1’ is also available with the option of a Power-Take-Off (PTO) facility, which is ideal for driving other compatible hydraulic equipment, such as breakers, tampers etc and can be used with extension rods for deeper drilling applications.

Contact For Availability

SKU: t3p-drilling-trailer
Share:

XCalibre T3P Trailer Drill Rig, Petrol
MPN T3P
Engine/Output 8Hp Air-Cooled Petrol
Engine Starting System Electric Start
Max Drill Diameter 300mm
Standard Drill Bit Travel 700mm
Max Effective Drilling Length 650mm
Core Drill Bit Connection 1¼” UNC Male
Drill Mast Type Standard Mast with single manual feed stroke
Drill Bit Lowering/Lifting/Feed Hand fed drill
Drill Stand Detachable drill head & water swivel
Fuel Tank Capacity 5.3 litres (up to 4 hours operation)
Water Tank Capacity 200 litres
Water Pump 12V DC driven on-board switched pump
Hydraulic Tank 13 litres
Hydraulic Outputs 30 litres/min (110 bar)
Suspension Torsion bar to EEC specification
Tow Hitch 50mm to EEC specifications
Dimensions (L x W x H) 3180 x 1390 x 1250mm
Weight (unlaiden/total permissible) 290kg/495kg
