Xcalibre T4L Lateral Trailer Drill Rig (200mm Ø) – Diesel

Xcalibre T4L Lateral Trailer Drill Rig (200mm Ø) – Diesel

From £43,800.00
From £36,500.00 Exc. VAT

Contact For Availability

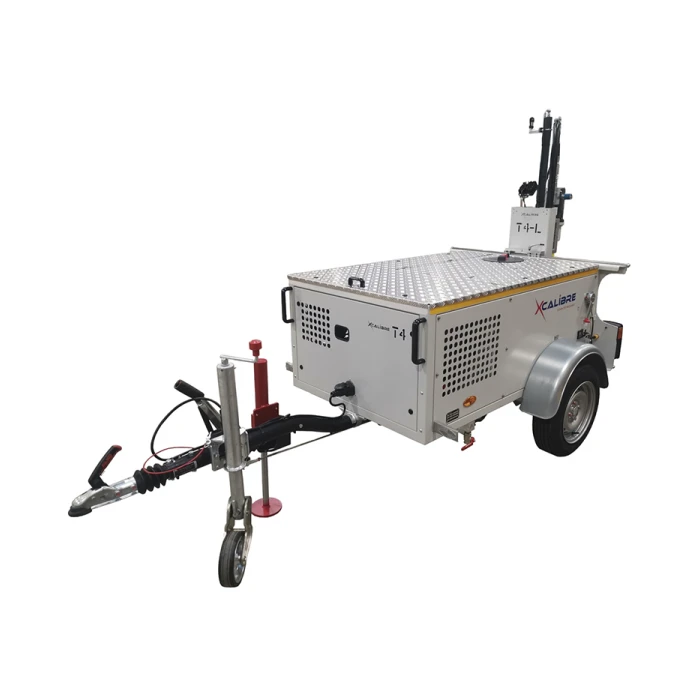

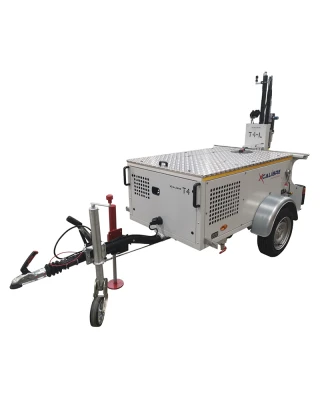

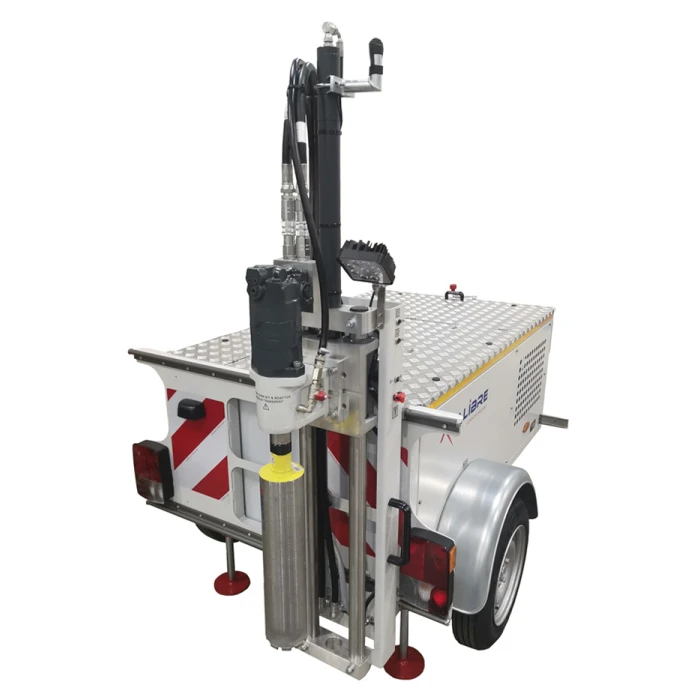

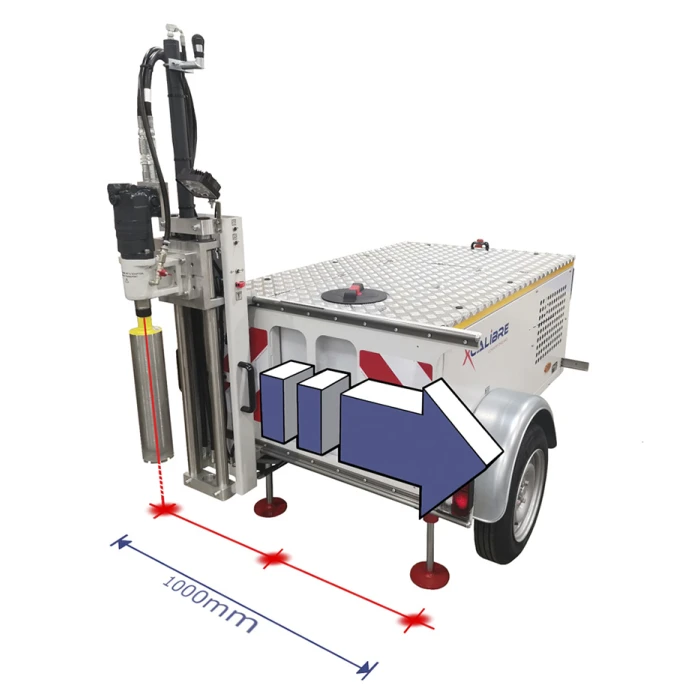

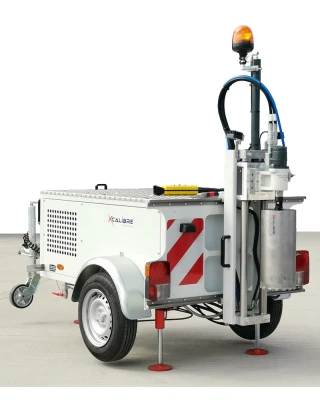

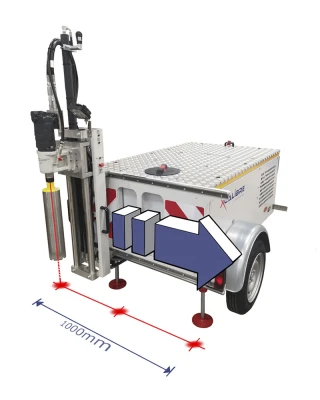

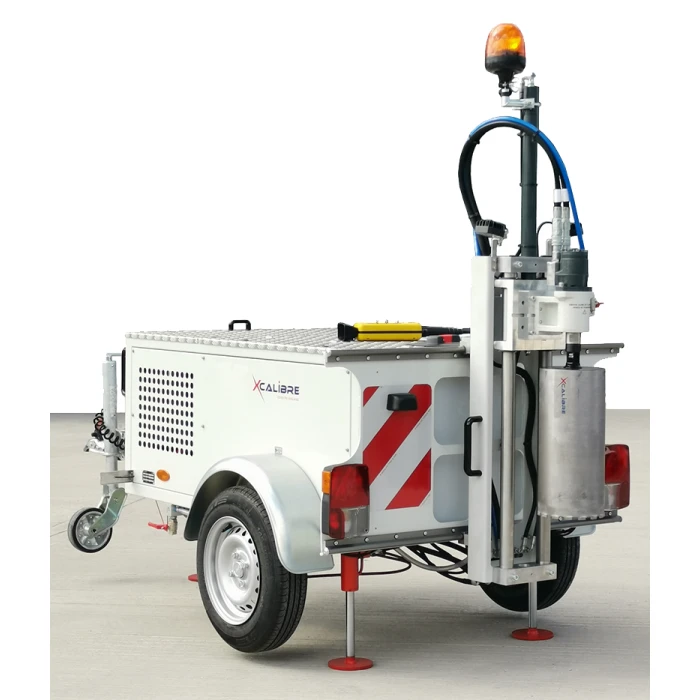

The XCalibre T4L is a compact and rugged trailer drill rig with 1000mm of lateral drill movement and a 700mm drill stroke, which is ideally suited for producing concrete and asphalt core samples in roads, car parks and airport runways alike, up to 200mm in diameter (due to lateral movement capabilities). This means that the large manual lateral drill motor movement allows adjacent cores up to 200mm diameter to be drilled, without moving the trailer itself from its fixed working position.

This hydraulically-driven diamond drilling trailer is highly-manoeuvrable, with performance and productivity levels that outperform all manually fed or direct engine driven machines. It is perfectly suited for use in both isolated and remote locations, thanks to it being fully self-contained and is available with an electric start Honda Petrol engine.

It features a 6 litre fuel tank and a 210 litre water tank, which makes it suitable for uo to 3 hours of normal working use, together with a unique soft start drilling feature with automatic proportional drill feed control system, which allows for easier adjustments through different materials and is also ideal for inexperienced operators too. It additionally features hydraulically operated stabilisers all-round and is conveniently and effortlessly controlled from a remote wired-handset, for fast, simple and safe operation. It has an unlaiden weight of 480kg and a maximum laiden weight of 740kg.


T4L – 9.6kW Honda Petrol (electric start). Max Drill Diameter 200mm.
1000mm lateral drill movement. Drill Travel 700mm.

The XCalibre T4L is also available with a single or two speed hydraulic motor and can also be used with optional extension bars for deeper drilling applications.

Contact For Availability

SKU: t4l-drilling-trailer
Share:

XCalibre T4L Trailer Drill Rig, Petrol (with lateral movement)
MPN T4L
Engine/Output 9.6kW Honda Petrol
Engine Starting System Electric/Recoil Start
Drill Mast Type Fixed mast with 1000mm lateral moving drill motor
Drill Motor Type/Drill Bit Type Hydraulic 0-1150rpm up to 7kW
Max Drill Diameter 200mm (due to lateral 1000mm movement)
Standard Drill Bit Travel 700mm
Max Effective Drilling Length 595mm
Core Drill Bit Connection 1¼” UNC Male
Drill Bit Lowering/Lifting/Feed Hydraulic with automatic proportional feed system
Fuel Tank Capacity 6 litres (up to 3 hours operation)
Water Tank Capacity 210 litres with 200mm diameter filter
Hydraulic Oil Capacity 64 litres
Sound Power Level (LWA) 103db
Sound Pressure Level (LPA) 92db
Vibration Level – 3 Axis (ISO 28927-5) <2.9ms/s²
Hour Meter Yes, in engine compartment
Control Panel Location Wired Handset
Colour RAL 7035 (Light Grey)
Safety Emergency Stop
Chassis AL-KO galvanised T-type chassis
Braking System ECE R13 approved inertia (overrun)
Parking Brake Yes, with hexagonal rubber suspension system and height adjustable jockey wheel
Machine Approvals CE and German TUV approval for road travel
Tyres 175R14C 99/98N Tyres
Vehicle Category (trailer) O2, Maximum authorised mass, MAM = 1650kg
Vehicle Homologation (trailer) European Community Whole Vehicle Type Approval (ECWVTA with regard to Directive 2007/46/EC)
Dimensions (L x W x H) 3200 x 1390 x 1900mm
Weight (unlaiden/total permissible) 480kg/740kg
