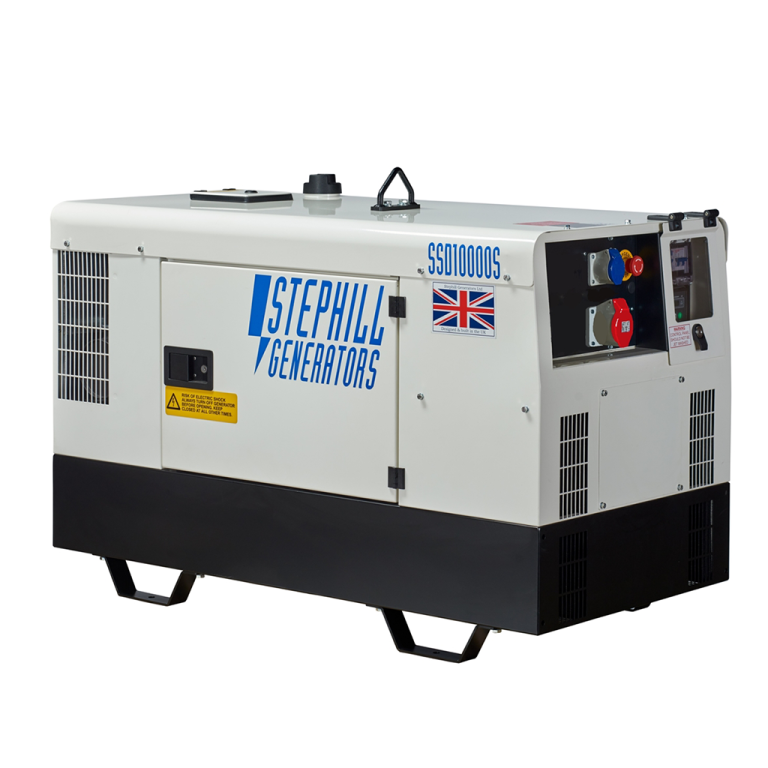

	Stephill SSD10000S/3PH 10.0kVA Generator (3-Phase) – E/S Diesel
Voltage	400V
Phase	3
Frequency	50Hz
Prime Power	10.0kVA / 8.0kW
Sockets	1 x 16A 400V and 1 x 16A 230V
Socket Specification	BS4343
Alternator	NSM Z100LB
Alternator Type	2-pole three-phase
Engine	Kubota D722-E4B Stage V Certified
Fuel Type	Diesel
Cylinders	Three
Starting System	Key – Electric Start
Aspiration	Naturally Aspirated
Cooling	Water-cooled
Displacement	1719cc
Rpm	3000
Net Engine Power	Net Intermittent / Continuous 10.3kW
Fuel Tank Capacity	37.0 Litres
Autonomy 100% Load	9.7 Hours / 3.81 L/h
Autonomy 75% Load	12.9 Hours / 2.86 L/h
Autonomy 50% Load	19.4 Hours / 1.90 L/h
Autonomy 25% Load	38.9 Hours / 0.95 L/h
LWA	93
dBA @ 7m	68
Dimensions (W x H x L)	655 x 900 x 1285mm
Weight	299kg*

*Weight excluding fuel

Prime Power (PRP): Applicable for suppling power to varying electrical load for unlimited hours in accordance ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

Optional extras for the Stephill SSD10000S/3PH 3PH include:

Road Tow Trailer option available.
Industrial two wheel trolley kit with pneumatic wheels for easy transport with folding handles.
Customised socket arrangement on request.
ATS Panel (Automatic Transfer Switch).
Air intake shutdown valve/spark arrestor.
Mains battery charger.
Auto start/stop programmable 7-day timer.
DSE 4520 control module upgrade available.
Hardware Terminals.

Deep Sea Electronics 3110 Start/Stop Control Module Option

The module will display warnings, shutdowns and engine status information on the back-lit LCD screen.
Engine shutdowns include, high engine temperature and low oil pressure, low fuel level warning.
Monitoring and protecting AC volts and frequency (Hz).
Hours run counter.
Battery voltage monitoring.
2-wire remote start function (ideal for generator remote start/stop systems).
