Stephill SG6000D 6.0kVA Generator (Dual-Voltage) – E/S Diesel

Name: Stephill SG6000D 6.0kVA Generator (Dual-Voltage) - E/S Diesel - Red Band UK
SKU: Stephill-SG6000D
Price: 3575.00 GBP
Availability: InStock

£4,290.00

£3,575.00 Exc. VAT

~~RRP £5,720.40 Inc. VAT~~

In stock

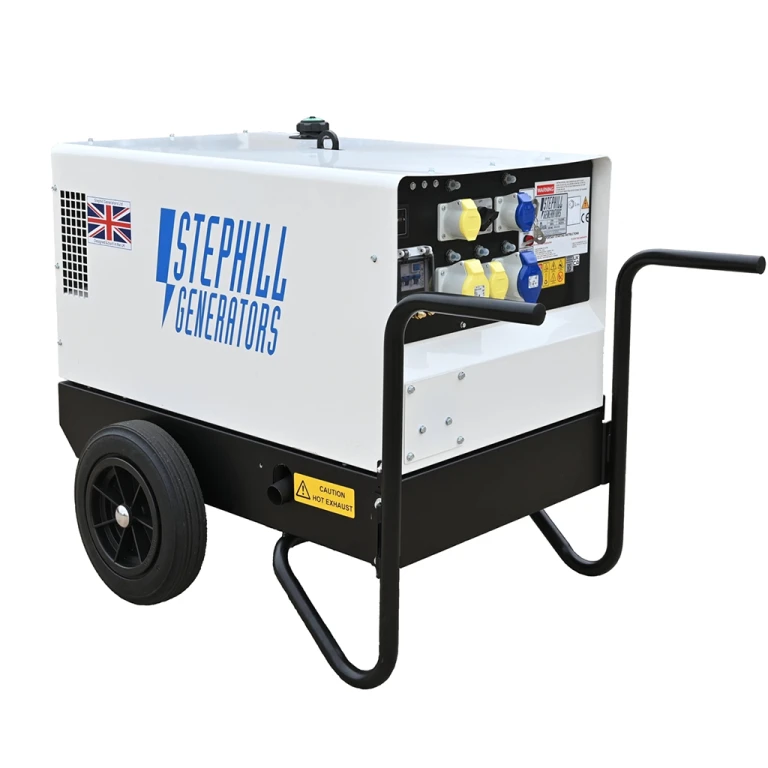

The Stephill SG6000D is a mobile and highly-versatile 6.0kVA / 4.8kW dual-voltage electric start super silent diesel-powered generator which is perfectly suited for a wide variety of demanding site power generation applications, thanks to its 6kVA/4.8kW continuous output and long run 24 litre fuel tank, that provides up to 17 hours of running at 75% load. It is ideally suited for contractor, rental and commercial use alike.

It is powered by a key-operated, electric start, noise-reduced single-cylinder EU Stage V certified Yanmar L100V diesel engine with a 12V fuel lift pump and is equipped with a reliable NSM K100G brushless maintenance-free smooth waveform alternator, with reset circuit breaker overload protection and rubber brushed control boxes for extended longevity of electrical components. For added convenience and portability it is supplied with an industrial two wheeled trolley kit with folding handles and a central lifting point as standard too.

This versatile, dependable and high-specification British Made super economy diesel generator is housed in an acoustic cabinet with a large access gas strut canopy roof for easy and easy access and quieter, more comfortable operation.

The SG6000D is equipped with a convenient intuitive and easy to access control panel, equipped with a handy hours-run meter, an AC voltage selector switch, MCB overload protection, RCD earth leakage protection (230V output), 5 x BS4343 output sockets (3 x 115V and 2 x 230V) with overload protection for each socket, together with high engine temperature, low oil pressure, low fuel and battery level warning lamps.

Socket arrangement for the Stephill SG6000D as follows:

2 x 16Amp 115V Socket
1 x 32Amp 115V Socket
1 x 16Amp 230V Socket
1 x 32Amp 230V Socket

SG600D (E/S diesel) – Prime Power (PRP) 6.0kVA / 4.8kW. 185kg*.

A range of optional extras for the Stephill SG6000D are available on request; Cusromised socket arrangement, AVR (Automatic Voltage Regulator), DSE 3110start/stop control module, ATS Pane; (Automatic Transfer Switch – DSE 3110 control panel module required), spark arrestor, mains battery charger, Auto start/stop programmable 7-day timer (DSE 3110 control module required), DSE 4520 control module upgrade available and Telemetry remote communication available (DSE 4520 & DSE 890 required). A dedicated 3-phase (415V) electric and skid version is also available upon request too, although prices may vary accordingly.

SKU: Stephill-SG6000D

Specification
Product Help

	SG6000D Electric Start Dual-Voltage Diesel Generator
Voltage	230 / 115V
Phase	1
Frequency	50Hz
Prime Power	6.0kVA / 4.8kW
Sockets	2 x 16A and 1 x 32A 115V, plus 1 x 16A and 1 x 32A 230V
Socket Specification	BS4343
Alternator	NSM K100G
Alternator Type	Brushless – Smooth Waveform
Engine	Yanmar L100V – Stage V Certified
Fuel Type	Diesel
Cylinders	Single
Distribution	O.H.V
Starting System	Key – Electric Start
Aspiration	Naturally Aspirated
Cooling	Air
Displacement	0.435 Litre
Rpm	3000
Fuel Tank Capacity	24.0 Litres
Autonomy 75% Load	17.0 Hours
LWA	94
dBA @ 7M	69
Dimensions (W x H x L)	785 x 970 x 1270mm
Weight	185kg*

*Weight excluding fuel

Prime Power (PRP): Applicable for suppling power to varying electrical load for unlimited hours in accordance ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

Optional extras for the Stephill SG6000D include:

Skid version available.
Customised socket arrangement on request.
AVR (Automatic Voltage Regulator).
DSE 3110 start/stop control module – see below for details:
ATS Pane; (Automatic Transfer Switch – DSE 3110 control panel module required).
Spark arrestor.
Mains battery charger.
Auto start/stop programmable 7-day timer (DSE 3110 control module required).
DSE 4520 control module upgrade available.
Telemetry remote communication available (DSE 4520 & DSE 890 required).

Deep Sea Electronics 3110 Start/Stop Control Module Option

The module will display warnings, shutdowns and engine status information on the back-lit LCD screen.
Engine shutdowns include, high engine temperature and low oil pressure, low fuel level warning.
Monitoring and protecting AC volts and frequency (Hz).
Hours run counter.
Battery voltage monitoring.
2-wire remote start function (ideal for generator remote start/stop systems).
