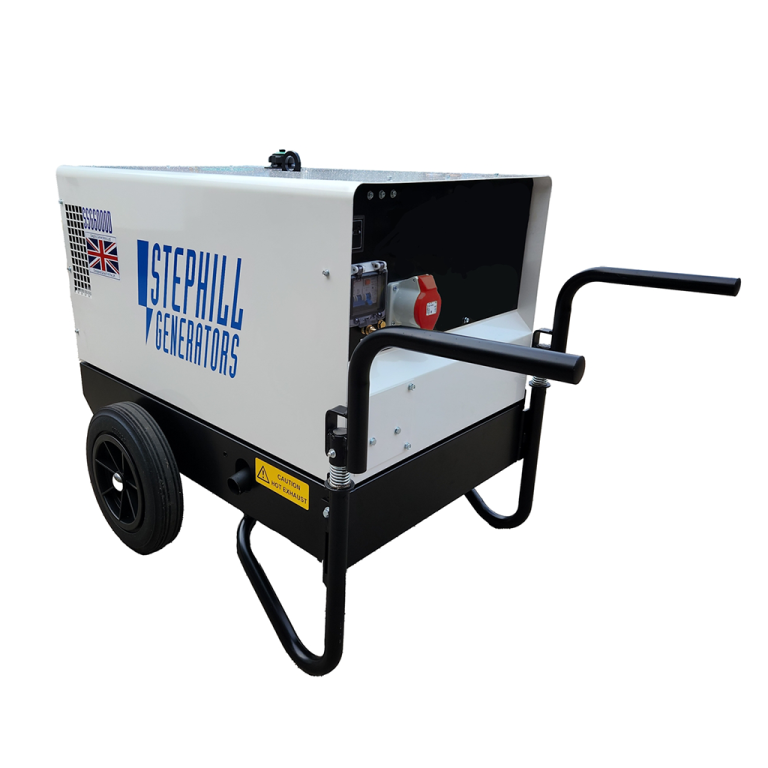

	Stephill SG6000D/3PH Electric Start 3-Phase 400V Diesel Generator
Voltage	400V
Phase	3
Frequency	50Hz
Prime Power	6.0kVA / 4.8kW
Sockets	1 x 16A 400V
Socket Specification	BS4343
Alternator	NSM Z100SB
Alternator Type	Brushless – Smooth Waveform
Engine	Yanmar L100V – Stage V Certified
Fuel Type	Diesel
Cylinders	Single
Distribution	O.H.V
Starting System	Key – Electric Start
Aspiration	Naturally Aspirated
Cooling	Air
Displacement	0.435 Litre
Rpm	3000
Fuel Tank Capacity	24.0 Litres
Autonomy 75% Load	17.0 Hours
LWA	91
dBA @ 7M	66
Dimensions (W x H x L)	785 x 890 x 1270mm
Weight	187kg*

*Weight excluding fuel

Prime Power (PRP): Applicable for suppling power to varying electrical load for unlimited hours in accordance ISO 8528-1 under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

Optional extras for the Stephill SG6000D/3PH include:

Skid version available.
Customised socket arrangement on request including 230V single phase spurs.
AVR (Automatic Voltage Regulator).
DSE 3110 start/stop control module (see below for details)
ATS Pane; (Automatic Transfer Switch – DSE 3110 control panel module required).
Spark arrestor.
Mains battery charger.
Auto start/stop programmable 7-day timer (DSE 3110 control module required).
DSE 4520 control module upgrade available.
Telemetry remote communication available (DSE 4520 & DSE 890 required).

Deep Sea Electronics 3110 Start/Stop Control Module Option

The module will display warnings, shutdowns and engine status information on the back-lit LCD screen.
Engine shutdowns include, high engine temperature and low oil pressure, low fuel level warning.
Monitoring and protecting AC volts and frequency (Hz).
Hours run counter.
Battery voltage monitoring.
2-wire remote start function (ideal for generator remote start/stop systems).
