Battipav Prime 120S 14" Bridge Saw (1.2m) - 110V

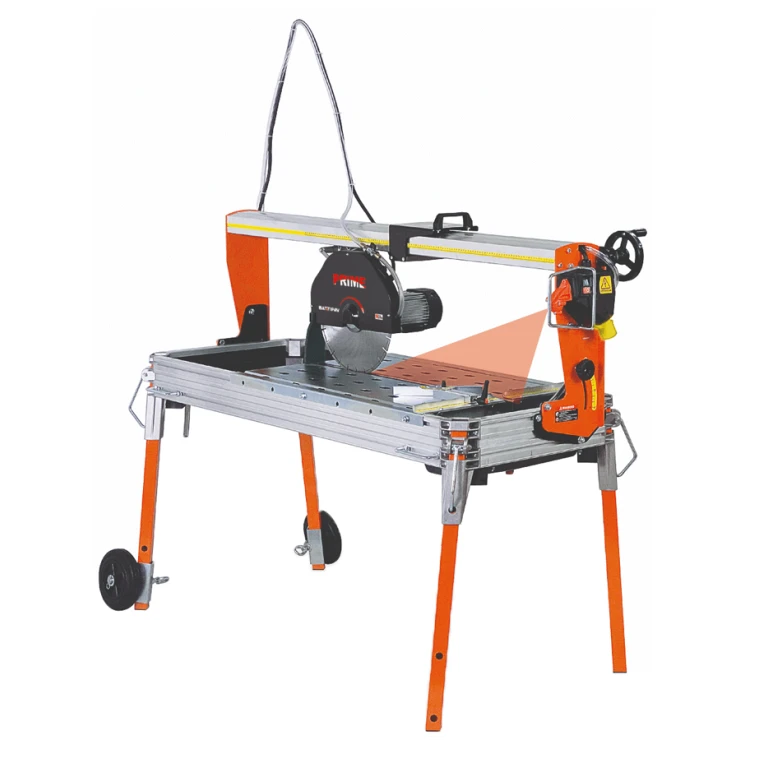

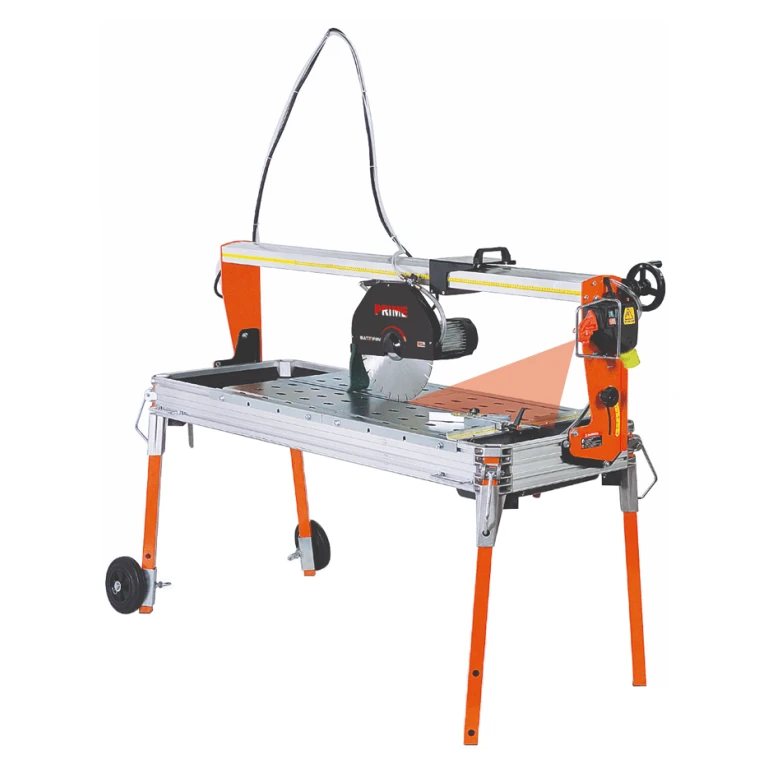

The Battipav Prime 120S is a high-performance, professional bridge saw with a powerful 2.2kW single-phase plunging motor, a 14” blade capacity and a maximum cutting length of 1200mm (1.2m).
This strong and precise premium-quality bridge saw can be used to straight and angle cut a wide and diverse range of ceramic, porcelain and vitrified floor and wall tiles, as well as an expansive range of natural stone products like marble and granite, together with concrete and masonry building materials too, unlike many other similarly long competitor saws.

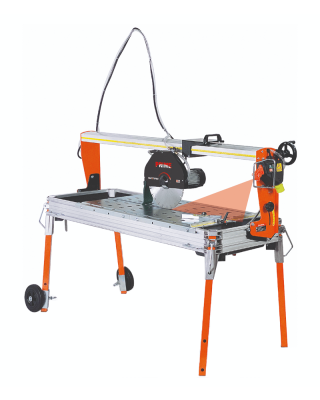

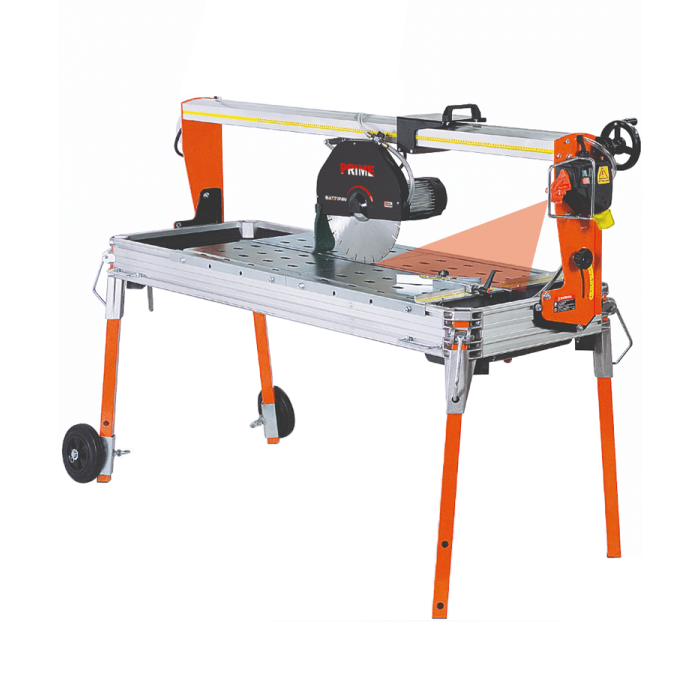

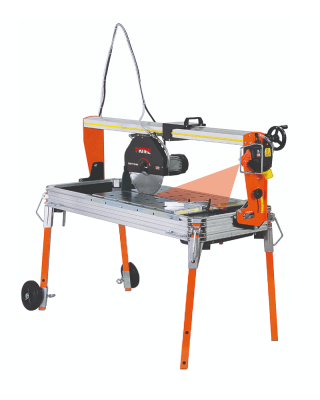

It has a generous 110mm maximum cutting depth (@ 90°) and features vanguard technical design innovations, including a laser cutting guide which ensure absolute cutting accuracy over the entire 1.0m cutting length. It is equipped with a handy transport wheel kit, carry handles, a tilting cutting head for easy mitre cuts, a recirculating electric water pump for wet cutting, patented retractable legs, winding handle feed control and has a modular construction with replaceable aluminium profiles.
Battipav are a highly regarded Italian manufacturer who have specialised in the design and production of tile cutters and wet saws for over forty years; Italy of course being considered as the home of natural stones and stone cutting equipment.
Prime 120S 110V (1ph) - (3.0hp/2.2Kw) Max cutting length 1200mm. Max depth of cut 110mm (@ 90o). 91kg.
Minimum 16A, 3kVA continuous or 5kVA intermittent supply. See our transformer guide for more info.

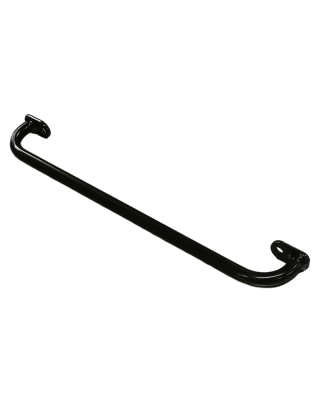

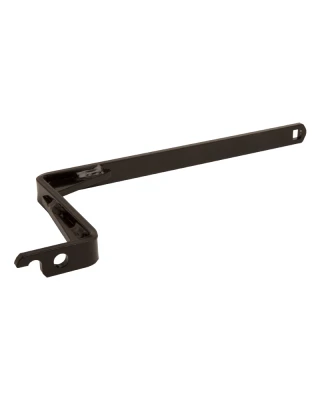

*Please note that the diamond blade, side extension table, transport handle, raise and lower handle kit and lateral tile support featured in the supporting product video are not standard fare and are available as optional extras only.
RRP from £2,928.00 Inc. VAT
|Minimum Transformer||3kVA continuous or 5kVA intermittent*|
|Maximum Cutting Length||1200mm|
|Maximum Diagonal Cut||845 x 845mm|
|Maximum Cutting Depth (90°)||110mm|
|Maximum Cutting Depth (45°)||80mm|
|Working Table Size||1220 x 620mm|
|Overall Dimensions (L x W x H)||1980 x 770 x 1305mm|
|Our Price (Exc. VAT)||£1,830.00|
*See our transformer guide for more info.

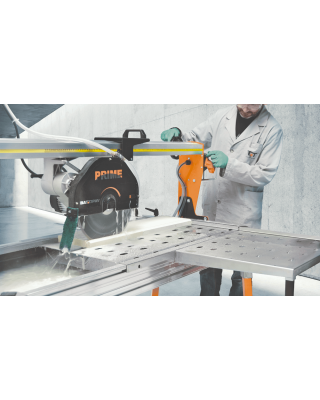

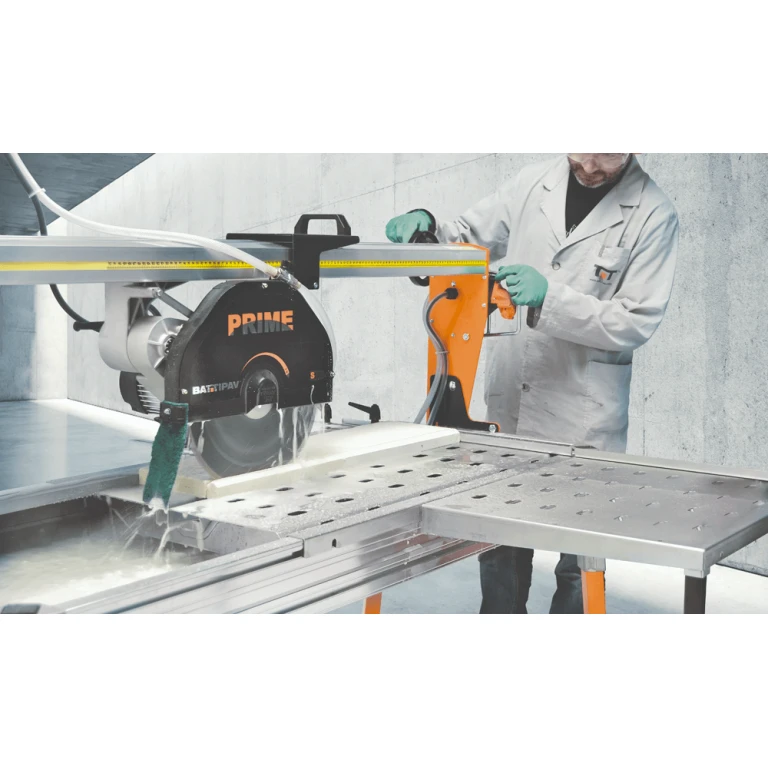

The Prime 120S is a high quality, high performance radial cutter with an overhead rail. It has an avant-garde design and is packed with vanguard technical innovations for enhanced cutting accuracy and performance over the entire cutting length of 1200mm (1.2m). It also features a tilting cutting head which makes mitre cuts easy work, together with an integral recirculating electric water pump for wet cutting applications.
Battipav Prime S line saws have many design features which ensure a high degree of cutting accuracy over the entire material length. They are strong and precise, thanks to a combination of actors, including their main construction from modular extruded aluminium interchangeable profiles, which provide strength and rigidity at a comparative reduced weight and reduce associated torsional stresses. Key also is the powerful 2.2kW motor and the extruded aluminium tilting bridge and overhead rail, which reduce deflection.

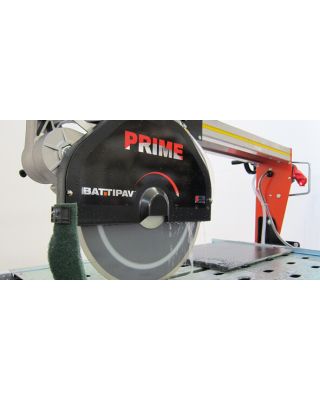

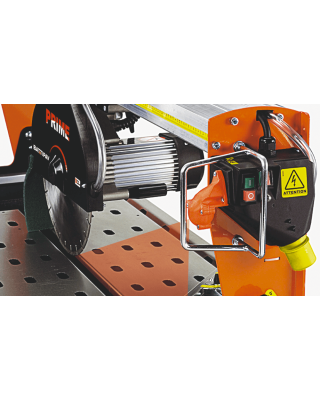

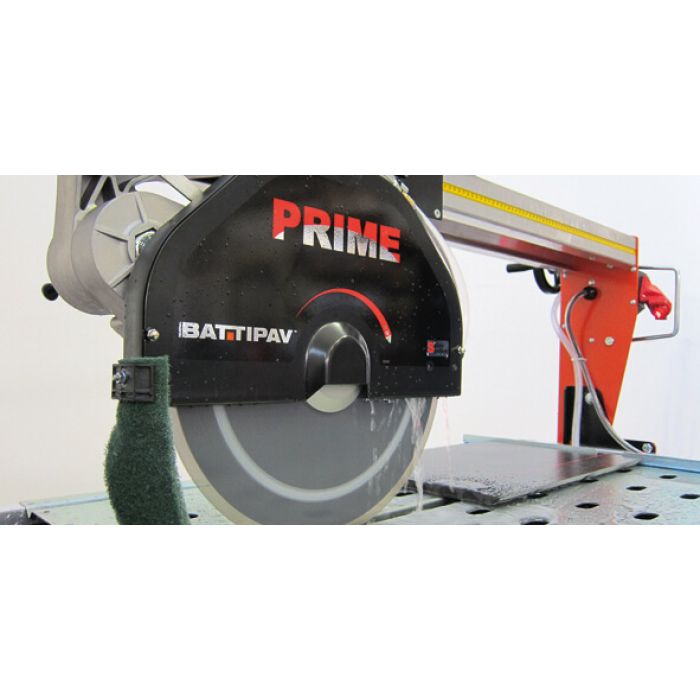

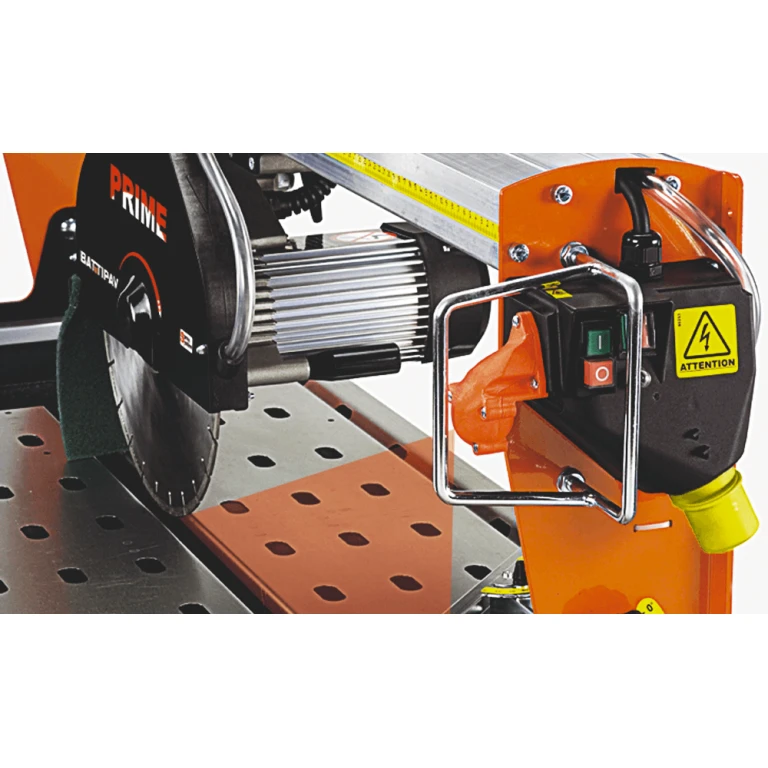

The cutting head of the Prime 120S is controlled by a small handwheel mounted at the end of the saw which allows the operator to gradually feed/traverse the head across the material being cut with both accuracy and ease. It can also be tilted for producing angle cuts of up to 45° with minimal effort and maximum accuracy, as well as plunged for cutting inserts, shapes etc. Its blade guard features a patented water spray system and is insulated to lower operating noise levels too. The blade guard has 3 locking screws which allow quick and easy access and blade exchange.
Carry handles on either side of the saw and a high-quality wheel kit with 200mm diameter rubber wheels to aid transportation to and around site. This allows the saw to be towed or carried into position. Its incorporated, patented ‘fast leg’ retractable leg system with quick release/locking levers enables fast setup and dismantling.
The working table of the Prime 120S is generously sized and can comfortably accommodate masonry materials and natural stone products, making it perfect for cutting a wide variety of wall and floor tiles, paving slabs etc, as well as a wide range of other products, like bricks, blocks, kerbs etc too. It is made of aluminium and easy to clean too, providing a stable, sturdy for materials being cut, which prevents materials breakages and culminates in a smoother cut. The working table consists of component aluminium inserts which are easy to remove for ease of maintenance and cleaning.
A professional adjustable goniometer fence is also included with the Prime 120S as standard.
