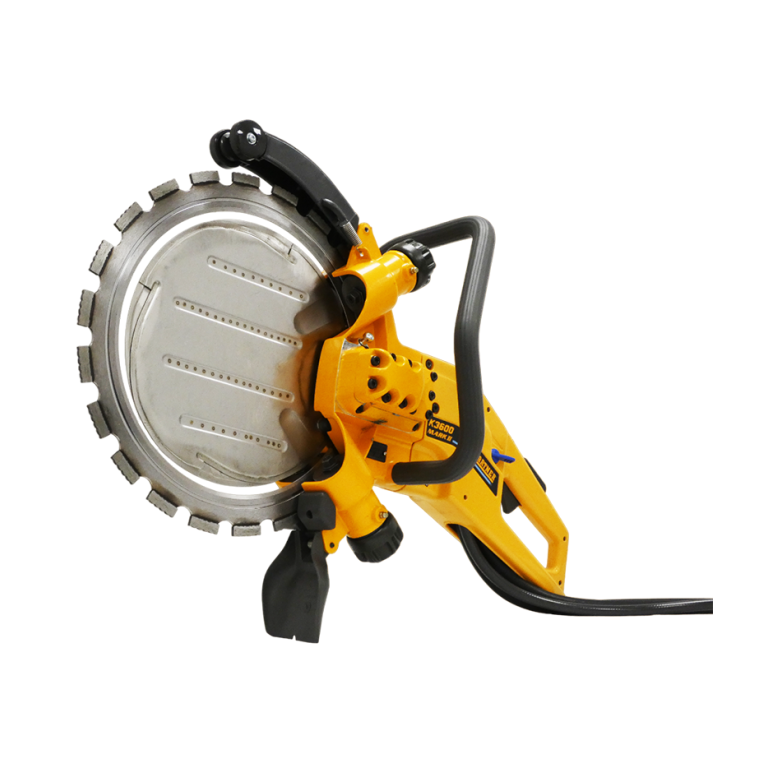

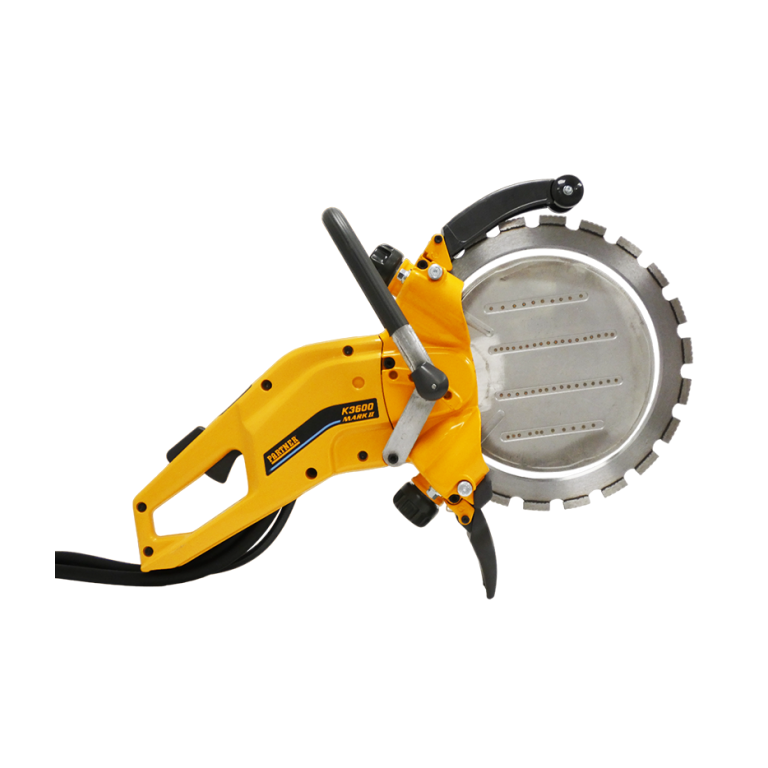

Partner K3600 MKII Ring Saw - Hydraulic

The Partner K3600 MKII Ring Saw is the market renowned and Original hydraulically powered cut-off saw with a large cutting depth, a high cutting capacity and an exceptional power-to-weight ratio, with a maximum cutting depth more than twice that of a conventional disc cutter (up to 270mm).

This powerful, lightweight, highly portable, highly versatile and innovative handheld deep cutting solution is suitable for a diverse range of cutting applications and for cutting a wide range of materials, including brick, natural stone and reinforced concrete.

It is universally recognised as one of the most productive cutting tools available and is easy to both set up and use. As it is hydraulically powered, it does not exhaust hazardous fumes like petrol powered equivalents, making it suitable for both indoor and outdoor use too.

Unlike conventional disc cutters, it uses custom-engineered ring blades which are driven from their periphery, rather than their centre, which enables it to cut considerably deeper. It is also capable of making deep cuts from one side and is also the quickest method for producing small and medium-sized cuts.

A variety of different custom-engineered wet-cut Husqvarna 370mm diameter diamond ring blades are available for the Partner K3600 MKII Ring Saw to suit both application, performance and budget:

  • Elite-Ring R10 - for hard and medium concrete, stone and occasional cutting of soft concrete.
  • Elite-Ring R20 - for medium concrete and occasional cutting of stone, soft and hard concrete.
  • Elite-Ring R45 - for soft and medium concrete and occasional cutting of hard concrete.

  • Vari-Ring R20 - for medium concrete and occasional cutting of stone, soft and hard concrete.
  • Vari-Ring R45 - for soft and medium concrete and occasional cutting of hard concrete.
  • Vari-Ring R70 - for abrasive building blocks and brickwork.
  • Vari-Ring Pre-Cut - for pre-cutting medium concrete and occasional cutting of soft and hard concrete.

K3600 MKII Ring (hydraulic) - 4.3kW. Ring diameter 370mm. Max Cut Depth 270mm. 8.3kg*.

The Partner K3600 MKII Ring Saw can be purchased as a machine only or as a package (c/w Husqvarna Elite-R45 diamond ring) at a reduced concessionary price. It is also supplied as standard in a sturdy protective wooden transportation box.

£2,229.60 £1,858.00
In stock
SKU
Partner-K3600
RRP from £5,096.40 Inc. VAT
Options
In stock

Specification

  K3600 MKII - Machine Only K3600 MKII - Package
MPN 9684241-02 9684241-0X
Power Source Hydraulic Hydraulic
Hydraulic Pressure Required 140 bar 140 bar
Hydraulic Flow Rate Required 40 L/min 40 L/min
Ring Blade Size 370mm 370mm
Maximum Cutting Depth 270mm 270mm
Ring Blade Included? No. Yes. 1 x Elite-Ring R45
Product Dimensions (W x H x L) 175 x 410 x 727mm 175 x 410 x 727mm
Weight (Machine Only) 8.3kg* 8.3kg*
Vibrations F/R 4.3 / 6.0m/s² 4.3 / 6.0m/s²
Sound pressure level at operators ear 99dB(A) 99dB(A)
Our Price (Exc. VAT) From £1858.00 £1998.00

*Excluding cutting equipment

No fumes and low noise levels
With no fumes and low noise levels hydraulic cutters are ideal for both indoor and outdoor jobs alike.

Light and powerful
Hydraulics provide an excellent way to transfer high and consistent power without the cutter becoming heavy and difficult to handle.

Adjustable front handle
Facilitates manoeuvrable cutting.

Deep cutting
Thanks to the peripheral drive you can cut far deeper with the K970 Ring than with a traditional disc cutter. The cutting depth of 270mm is sufficient to cut through a normal wall from one side only.

Wet cutting kit
The water adjustment gives an efficient dust management and makes operation easier and more efficient.
