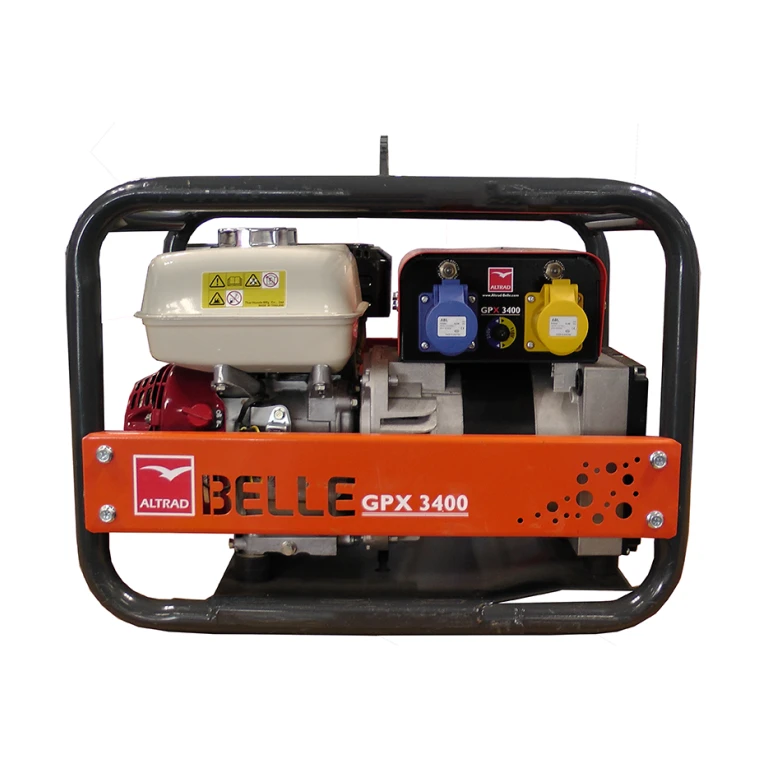

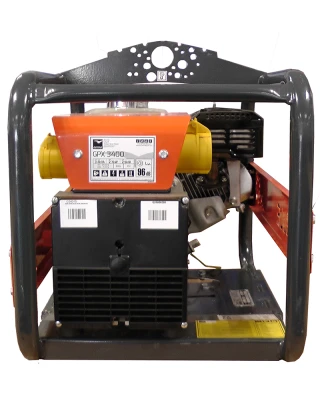

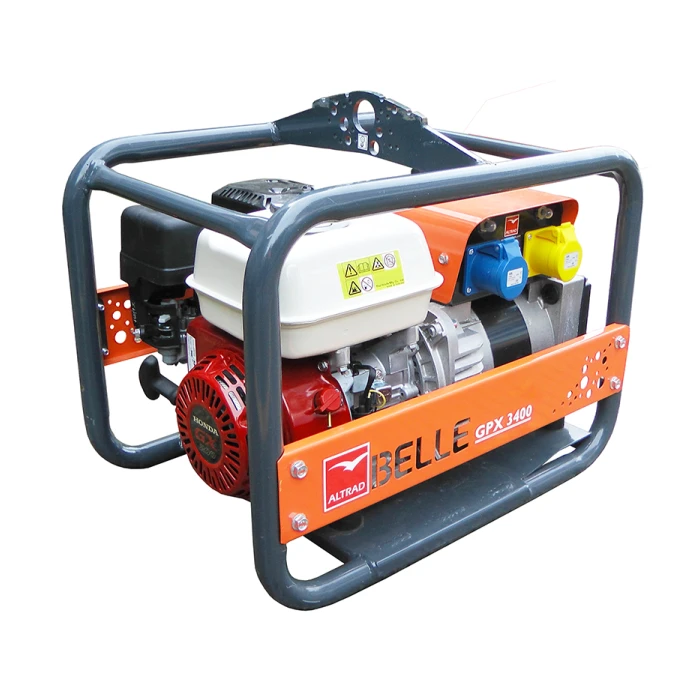

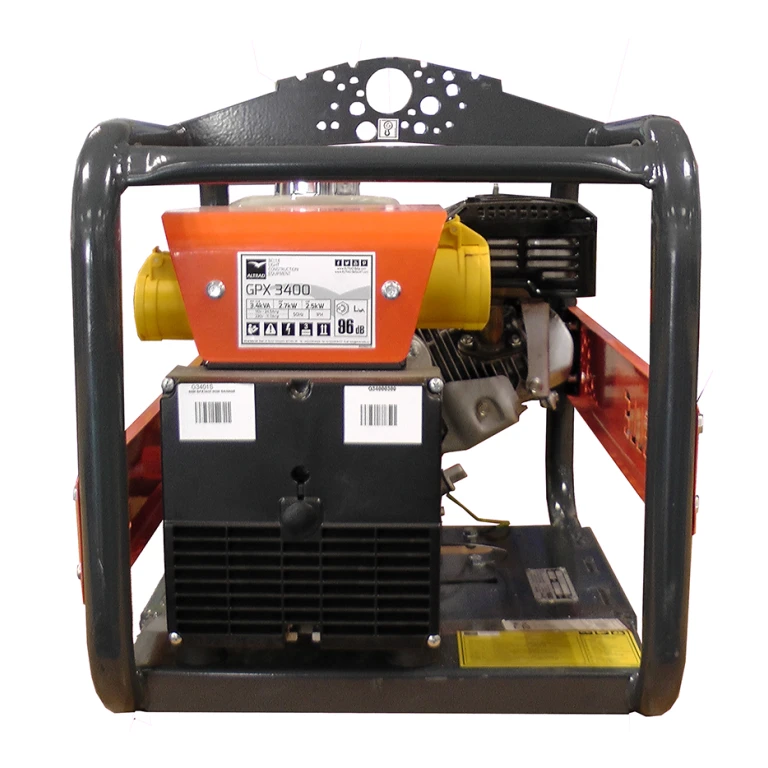

Altrad Belle GPX 3400 3.4kVA Generator - Petrol

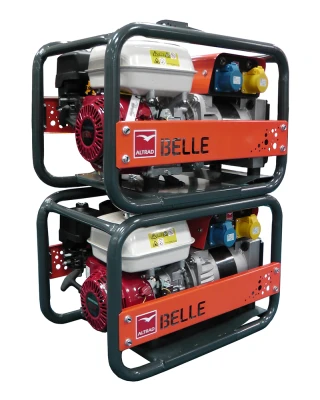

The Belle GPX 3400 is a compact petrol-powered 3.4kVA open set generator with a robust, stackable protective frame and a high-quality, heavy-duty NSM alternator and selectable 110V and 230V supplies with system breakers.

It is designed to provide reliable power in the harshest conditions and withstand the rigours of heavy site and rental use.

It features a protective belly plate which also aids use on soft ground and is equipped with a reliable 3.3kW Honda GX200 petrol engine, complete with recoil start and low engine oil cut-off. It also has over-sized 4-point Anti-Vibration mounts.

The GPX 3400 is supplied with the following socket arrangement:

1 x 16Amp 110V Socket
1 x 16Amp 230V Socket
1 x 32Amp 110V Socket

GPX 3400 - 4.3Hp/3.3kW. 3.4kVA Rating @ 0.8 p/f. 2.7kW PRP Rating. 2.5kW Continuous Rating. 47kg*.

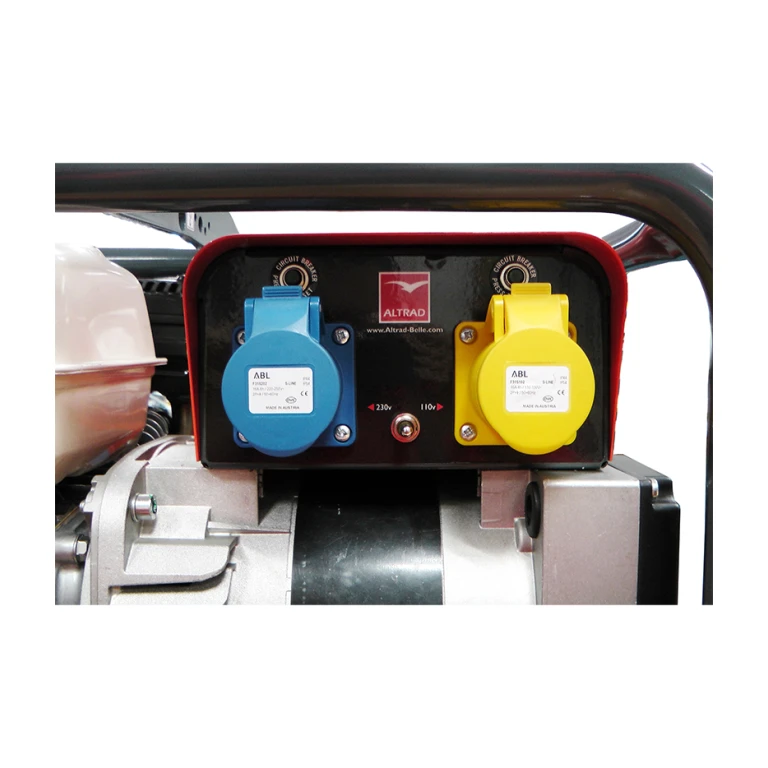

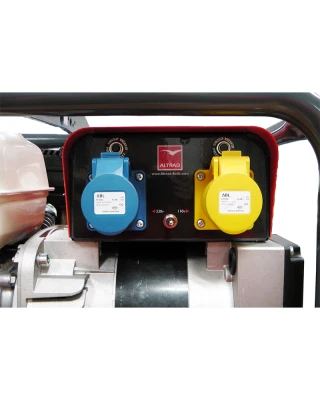

The engine and alternator of the GPX 3400 are protected from physical damage without compromising accessibility to service points. All electrics have full overload protection and are housed in a protective steel enclosure, with protruding durable screw-in sockets.

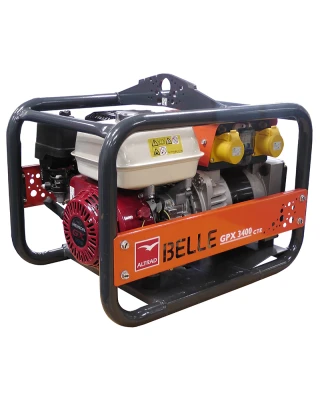

A single voltage 110V-only version of the GPX 3400 (55V - 0 - 55V) with dual pole system breakers which is suitable for Tin 12 fusion welding applications is also available (GPX 3400 CTE).

Altrad Belle Dealer | Red Band UK

£678.00 £565.00
In stock
RRP from £937.20 Inc. VAT


  GPX 3400
MPN G3401S
Engine Honda GX200
Engine Type Petrol
Engine Power 4.3Hp/3.3kW
Rating @ 0.8p/f 3.4kVA
PRP Rating 2.7kW
COP Rating (Continuous) 2.5kW
No. of 16A 110V sockets 1
No. of 16A 230V sockets 1
No. of 32A 110V sockets 1
Frequency 50Hz
Dimensions (L x W x H) 618 x 432 x 515mm
Weight 47kg*
Our Price (Exc. VAT) £565.00

*Weight excluding fuel.

GPX 3400
A - Overall Length 618mm
B - Overall Width 432mm
C - Overall Height 515mm
