Model | ||
↓ | GPX 5000 CTE | GPX 5000W CTE |
A – Overall Length | 728mm | 778mm |
B – Overall Width | 512mm | 552mm |
C – Overall Height | 595mm | 661mm |

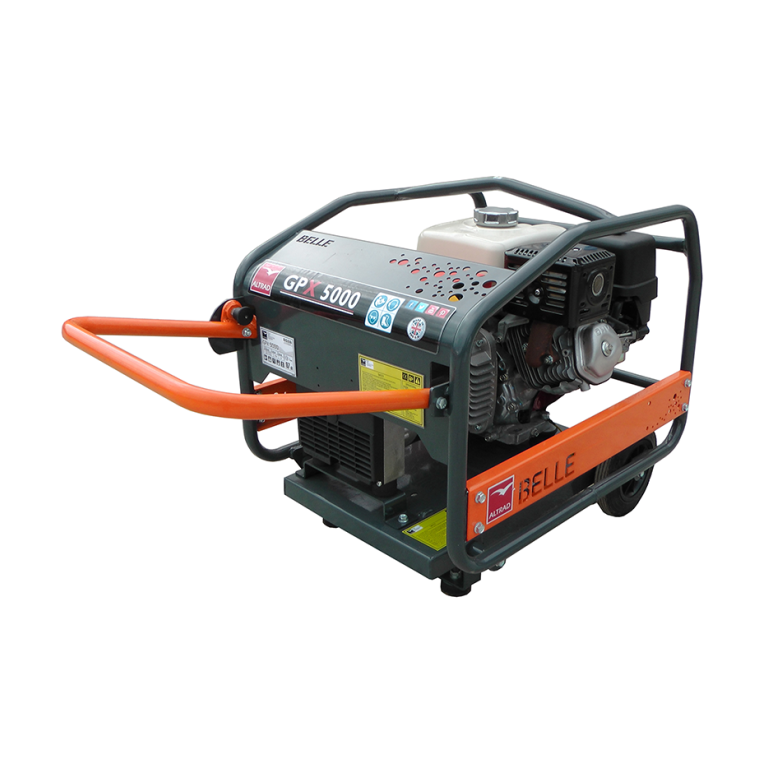

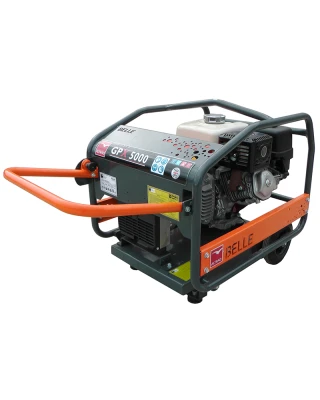

The Belle GPX 5000 CTE is a versatile petrol-powered 5kVA single voltage 110V-only open set generator suitable for 110V site conditions and Tin 12 fusion welding applications.
It is built to provide power in the harshest conditions and has a robust, stackable protective frame and a high-quality, heavy-duty NSM alternator and electrics with system breakers and full overload protection. It is ideal for rental and hire applications too.
The GPX 5000 is available with or without wheels (wheeled version excludes protective under belly and is not stackable) and is equipped with a powerful and reliable 4.6kW Honda GX270 petrol engine, complete with recoil start and low engine oil cut-off. It also has over-sized 4-point Anti-Vibration mounts.
The GPX 5000 CTE is supplied with the following socket arrangement:
2 x 16Amp 110V Socket
1 x 32Amp 110V Socket
GPX 5000 CTE – 6.2Hp/4.6kW. 5kVA Rating @ 0.8 p/f. 4kW PRP Rating. 3.6kW Continuous Rating. 64kg*.
GPX 5000W CTE – 6.2Hp/4.6kW. 5kVA Rating @ 0.8 p/f. 4kW PRP Rating. 3.6kW Continuous Rating. 79kg**.
The engine and alternator of the GPX 5000 CTE are protected from physical damage without compromising accessibility to service points. All electrics have full overload protection and are housed in a protective steel enclosure, with protruding durable screw-in sockets.
To use , please spend more than £50
Model | ||
↓ | GPX 5000 CTE | GPX 5000W CTE |
A – Overall Length | 728mm | 778mm |
B – Overall Width | 512mm | 552mm |
C – Overall Height | 595mm | 661mm |
GPX 5000 CTE | GPX 5000W CTE | |
MPN | G5001CS | G5001CWS |
Engine | Honda GX270 | Honda GX270 |
Engine Type | Petrol | Petrol |
Engine Power | 6.2Hp/4.6kW | 6.2Hp/4.6kW |
Rating @ 0.8p/f | 5kVA | 5kVA |
PRP Rating | 4.0kW | 4.0kW |
COP Rating (Continuous) | 3.6kW | 3.6kW |
No. of 16A 110V sockets | 2 | 2 |
No. of 32A 110V sockets | 1 | 1 |
Frequency | 50Hz | 50Hz |
Dimensions (L x W x H) | 728 x 512 x 595mm | 778 x 552 x 661 |
Weight | 64kg* | 79kg** |
*Weight excluding fuel and wheel kit.
**Weight excluding fuel and wheel kit.
