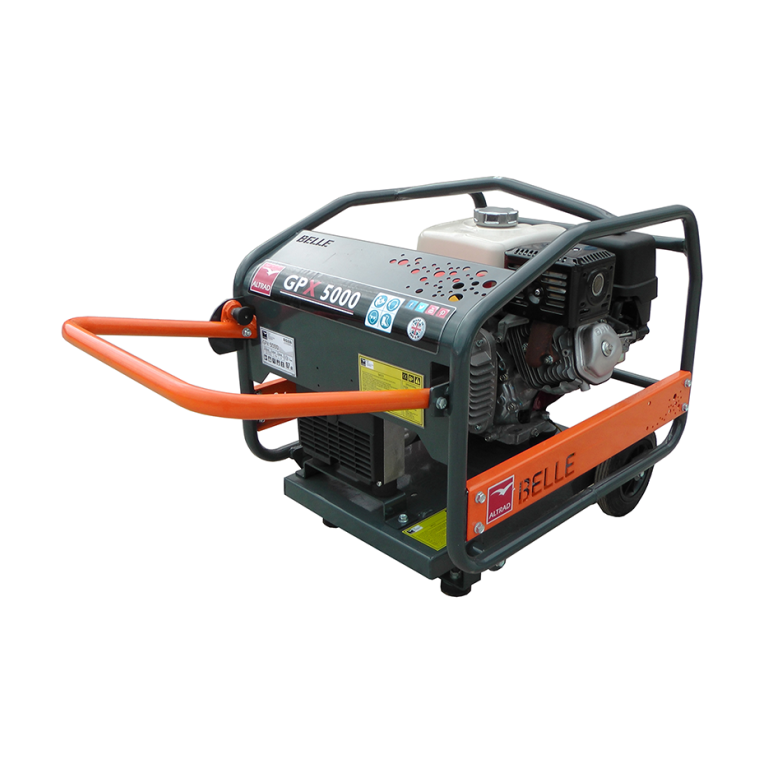

Altrad Belle GPX 5000 5kVA Generator - Petrol

The Belle GPX 5000 is a versatile petrol-powered 5kVA open set generator with a robust, stackable protective frame and a high-quality, heavy-duty NSM alternator and selectable 110V and 230V supplies with system breakers.

It is designed to provide reliable power in the harshest conditions and withstand the rigours of heavy site and rental use.

The GPX 5000 is available with or without wheels (wheeled version excludes protective under belly and is not stackable) and is equipped with a powerful and reliable 4.6kW Honda GX270 petrol engine, complete with recoil start and low engine oil cut-off. It also has over-sized 4-point Anti-Vibration mounts.

The GPX 5000 is supplied with the following socket arrangement:

2 x 16Amp 110V Socket
1 x 16Amp 230V Socket
1 x 32Amp 110V Socket

GPX 5000 - 6.2Hp/4.6kW. 5kVA Rating @ 0.8 p/f. 4kW PRP Rating. 3.6kW Continuous Rating. 64kg*.
GPX 5000W - 6.2Hp/4.6kW. 5kVA Rating @ 0.8 p/f. 4kW PRP Rating. 3.6kW Continuous Rating. 79kg**.

The engine and alternator of the GPX 5000 are protected from physical damage without compromising accessibility to service points. All electrics have full overload protection and are housed in a protective steel enclosure, with protruding durable screw-in sockets.

A single voltage 110V-only version of the GPX 5000 (55V - 0 - 55V) with dual pole system breakers which is suitable for Tin 12 fusion welding applications is also available (GPX 5000 CTE).

Altrad Belle Dealer | Red Band UK

£1,017.60 £848.00
In stock
In stock


  GPX 5000 GPX 5000W
MPN G5001S G5001WS
Engine Honda GX270 Honda GX270
Engine Type Petrol Petrol
Engine Power 6.2Hp/4.6kW 6.2Hp/4.6kW
Rating @ 0.8p/f 5kVA 5kVA
PRP Rating 4.0kW 4.0kW
COP Rating (Continuous) 3.6kW 3.6kW
No. of 16A 110V sockets 2 2
No. of 16A 230V sockets 1 1
No. of 32A 110V sockets 1 1
Frequency 50Hz 50Hz
Dimensions (L x W x H) 728 x 512 x 595mm 778 x 552 x 661
Weight 64kg* 79kg**
Our Price (Exc. VAT) £848.00 £969.00

*Weight excluding fuel and wheel kit.
**Weight excluding fuel and wheel kit.

GPX 5000 GPX 5000W
A - Overall Length 728mm 778mm
B - Overall Width 512mm 552mm
C - Overall Height 595mm 661mm
