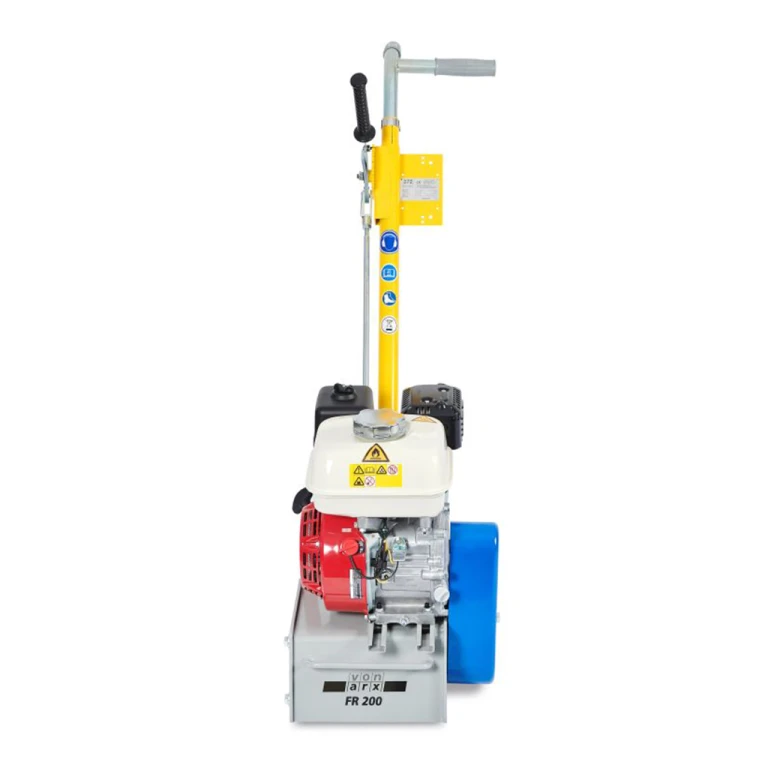

The Von Arx FR200H is a compact, lightweight and highly manoeuvrable floor scabbler, powered by a reliable Honda GX200 4-stroke petrol engine. With a 200mm/8” working width and adjustable cutting depth of up to 3mm, it is ideally suited to cleaning, roughening, grooving and removing thin surface layers from concrete and asphalt surfaces. The FR200H is supplied with a heavy-duty drum fitted with 76 TCT pentagonal carbide cutters, making it suitable for applications including the removal of old coatings, epoxy materials, tiling adhesive residues and pavement markings, as well as reducing surface high spots and improving slip resistance.

The FR200H also features an integrated dust extractor port, allowing it to be connected directly to the Von Arx S2 H-Class dust extractor for efficient dust and debris collection during operation. The petrol-powered design makes the FR200H particularly useful for outdoor applications and locations where a suitable electrical supply is not readily available.

The Von Arx S2 is a powerful twin-motor H-Class dust extractor designed specifically for use with floor scarifiers, shavers, hand grinders and saws. Powered by 2 x 1200W 110V industrial bypass motors, the S2 provides a maximum airflow of 400m³/h and 22kPa vacuum. Its advanced three-stage filtration system incorporates a washable PTFE-coated conical pre-filter and 2 x HEPA H13 main filters, while the integrated jet-pulse cleaning system helps maintain effective filtration performance during demanding applications.

The S2 also incorporates a Longopac collection system, supplied with a 7.5m x 2” suction hose, 3-piece stainless steel wand and adjustable 450mm floor cleaning head. Mounted on a robust chassis with heavy-duty castor and rear wheels, it is designed for easy manoeuvrability around the workplace.

Cutter head configurations available and their intended uses.

Von Arx FR200 5 Tooth Pentagonal Cutter Head
Complete cutter head for FR200 with 76 x pentagon tungsten carbide 5 point cutters, ideal for roughening concrete or asphalt and for efficiently removing old coatings, such as line marker paint. PNC VA701422.

Von Arx FR200 5 Tooth Pentagonal Cutters, Spacers & Shaft Set
Set of 76 x replacement pentagon tungsten carbide 5 point cutters for FR200, complete with spacers and shafts (excludes provision of cutter head). PNC VAR701505.

Von Arx FR200 6 Tooth Hexagonal Cutter Head
Complete cutter head for FR200 with 76 x hexagon tungsten carbide 6 point cutters, ideal for roughening concrete or asphalt and for efficiently removing old coatings. PNC VAR706563.

Von Arx FR200 12 Tooth Beam Cutter Head
Complete cutter head with 400 x 12 point beam cutters for FR200, ideal for removing road markings and paint from concrete and asphalt, as well for use on large steel structures like ship decks, that require a slight change to the surface area. PNC VAR701423.

Von Arx FR200 11mm 5 Tooth Milling Cutter Head
Complete cutter head with 40 x 11mm octagonal tungsten carbide milling 8 point cutters for FR200, ideal for removing and stripping thermoplastic and cold plastic coatings and markings. VAR702208.

Von Arx FR200 22mm 5 Tooth VHM Milling Cutter Head
Complete cutter head with 40 x pentagonal tungsten carbide VHM milling 5 point cutters for FR200, ideal for removing and stripping thermoplastic and cold plastic coatings and markings. PNC VAR701425.

Von Arx FR200 Fine Steel Wire Brush Head
Complete head with fine steel wire bristles for FR200, ideal for polishing and cleaning various surfaces and the removal of light rust. VAR700981.

Von Arx FR200 Coarse Steel Wire Brush Head
Complete head with coarse steel wire bristles for FR200, ideal for polishing and cleaning various surfaces and the removal of light rust. VAR700982.
