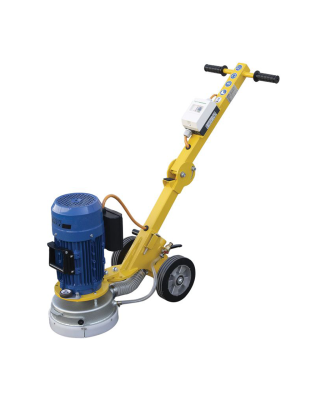

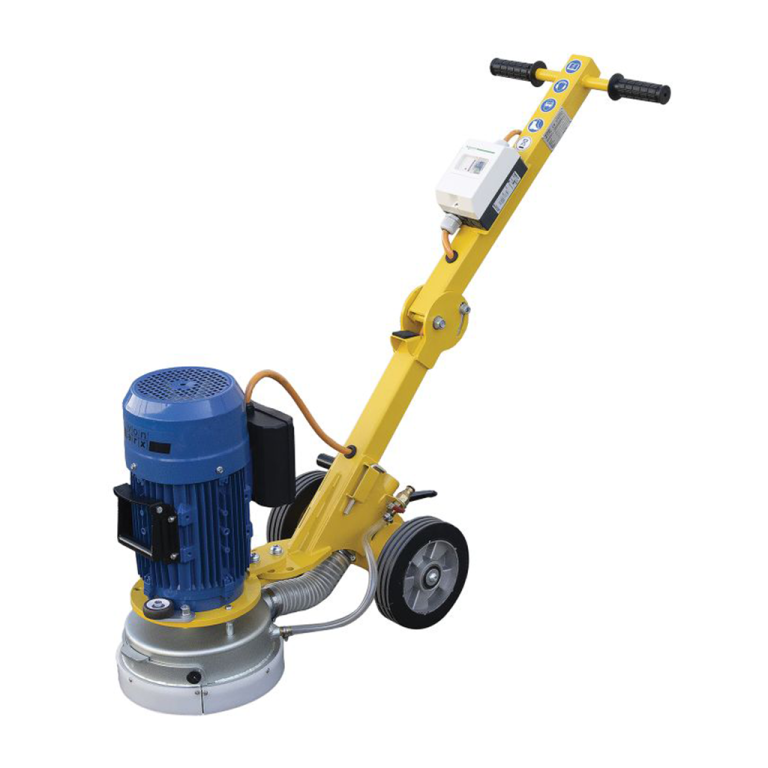

Von Arx FG250S 10” Floor Grinder & Edger – 110V

Von Arx FG250S 10” Floor Grinder & Edger – 110V

£2,002.80
£1,669.00 Exc. VAT

In stock

The Von Arx FG250S is a compact, lightweight, agile, responsive and easy to use single-phase (110V) combination surface grinder and edger with a working width of 250mm / 10”, making it ideal for a variety of small surface preparation tasks, or simply being used to edge a surface after being worked by a larger machine after quick conversion from grinder to edger. It is suitable for use by both professionals and DIY enthusiasts alike, thanks in part to its’ integrated levelling tool that ensures precise grinding and edging results.

This powerful, low-vibration and versatile single-disc 10” floor grinder is designed for use with a range of custom diamond grinding discs to best suit the application in hand, which are available as optional extras as required.

It is equipped with a floating dust shroud, an integrated dust extraction port, together with a water-cooling system that permits easy connection to a hose or as effective means of dust suppression. In addition, it has a convenient foldable design and large solid rear wheels for easy movement, transportation and storage too.


FG250S (110V 1-ph) – (1.5kW). 32 Amp. 250mm/10” working width. 52kg.

The Von Arx FG250S mono-disc surface grinder is ideally suited for use with the Von Arx S2 H-Class dust extractor.

Since 1941 Von Arx has been a market leading and renowned producer of high-quality surface preparation equipment that is safe, ergonomic, user friendly and functional.

(Delivery calculated at basket)

SKU: VonArx-FG250S

Cutter head configurations available and their intended uses.

Von Arx FR200 5 Tooth Pentagonal Cutter Head
Complete cutter head for FR200 with 76 x pentagon tungsten carbide 5 point cutters, ideal for roughening concrete or asphalt and for efficiently removing old coatings, such as line marker paint. PNC VA701422.

Von Arx FR200 5 Tooth Pentagonal Cutters, Spacers & Shaft Set
Set of 76 x replacement pentagon tungsten carbide 5 point cutters for FR200, complete with spacers and shafts (excludes provision of cutter head). PNC VAR701505.

Von Arx FR200 6 Tooth Hexagonal Cutter Head
Complete cutter head for FR200 with 76 x hexagon tungsten carbide 6 point cutters, ideal for roughening concrete or asphalt and for efficiently removing old coatings. PNC VAR706563.

Von Arx FR200 12 Tooth Beam Cutter Head
Complete cutter head with 400 x 12 point beam cutters for FR200, ideal for removing road markings and paint from concrete and asphalt, as well for use on large steel structures like ship decks, that require a slight change to the surface area. PNC VAR701423.

Von Arx FR200 11mm 5 Tooth Milling Cutter Head
Complete cutter head with 40 x 11mm octagonal tungsten carbide milling 8 point cutters for FR200, ideal for removing and stripping thermoplastic and cold plastic coatings and markings. VAR702208.

Von Arx FR200 22mm 5 Tooth VHM Milling Cutter Head
Complete cutter head with 40 x pentagonal tungsten carbide VHM milling 5 point cutters for FR200, ideal for removing and stripping thermoplastic and cold plastic coatings and markings. PNC VAR701425.

Von Arx FR200 Fine Steel Wire Brush Head
Complete head with fine steel wire bristles for FR200, ideal for polishing and cleaning various surfaces and the removal of light rust. VAR700981.

Von Arx FR200 Coarse Steel Wire Brush Head
Complete head with coarse steel wire bristles for FR200, ideal for polishing and cleaning various surfaces and the removal of light rust. VAR700982.

Von Arx FG250S110 10″ Floor Grinder & Edger – 110V
Voltage 110V single-phase electric
Frequency 50Hz
Plug 32 Amp
Power 1.5kW
Working Width 250mm/10″
Rotational Speed 1160 Rpm
Diamond Grinding Disc Included No. Available as optional extra
Power Cable Length Not Supplied. Available as optional extra
Dust Extraction Port Yes. 50mm Dia.
Water Cooling Connection 15.8mm QR
Vibration Level 2.5m/s²
Working Sound Level 90 db(A)
Length 1080mm
Overall Width 420mm
Height (Adjustable) 620 – 980mm
IP Rating IP55
Weight 52kg
