Altrad Irbal RB500B Skip Fed Mixer

Altrad Irbal RB500B Skip Fed Mixer

POA
POA

Contact For Availability

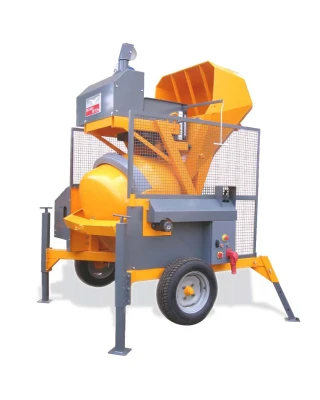

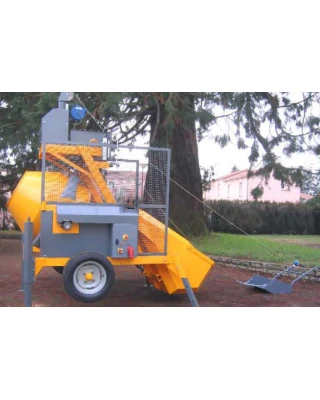

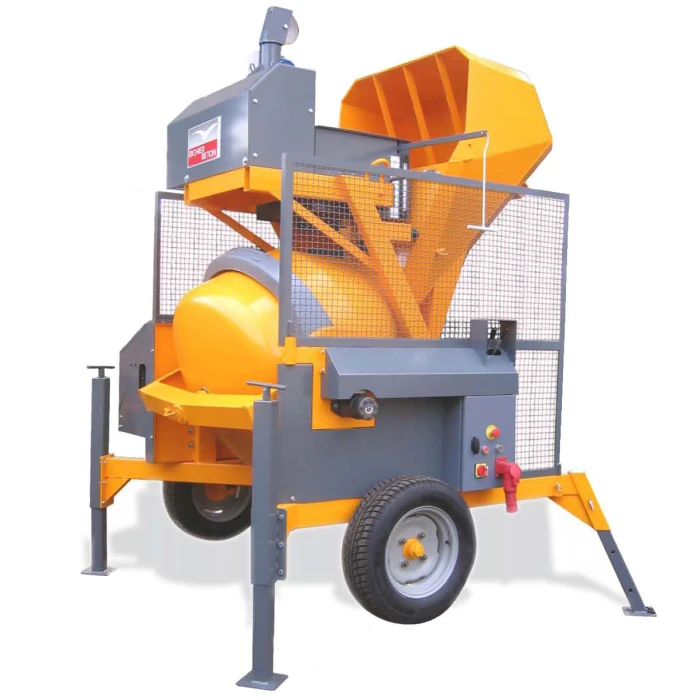

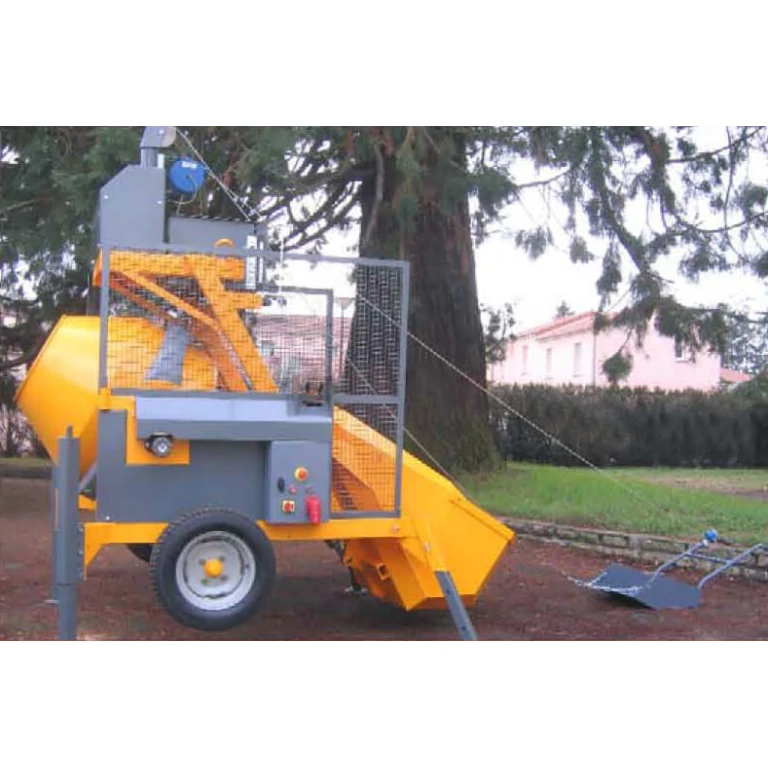

The Richier Beton RB500B is a large, 460 litre skip-fed mixer featuring a horizontal, hydraulic tipping drum and hydraulic skip.

This relatively compact, but high capacity, productive mixer is designed for batching mixing larger volumes of concrete etc with greater efficiency. The drum tipping is monitored by a hydraulic motor equipped with a valve to guarantee the blocking of the drum in any position to minimise spillages. It also features adjustable feet for precise positioning, a valve enabled double-effect ram with  all position locking and a skip equipped with bag cutter and scraper guide.

Irbal is part of the Altrad Group of companies which together form the largest light construction equipment company in the world. Together with Irbal, the Group also includes Atika, Belle and Saint Denis, all renowned for their industry leading mixing products.


The Richier Beton RB500B is available with a Honda petrol engine, a 3phase 380V electric motor and Hatz diesel engines.

RB500B-P 340542J (Honda petrol) – Supplied without scraper. Honda GX160 petrol powered.

RB500B-E 340554J (380V 3ph) – Supplied without scraper. 380V/50Hz 3ph electric powered.

RB500B-D20 340610J (Hatz diesel) – Supplied without scraper. Hatz IB20 diesel powered.

RB500B-D30 340540B (Hatz diesel) – Supplied without scraper. Hatz IB30 diesel powered.

The RB500B is supplied without scraper which is available as an optional extra and can be powered by either remote control or winch and cable.

Contact For Availability

SKU: RB500B
Share:

The 380V electric RB500B features a control panel equipped with a phase detector, which cuts out in case of incorrect wiring.

All models include as standard a protective grid ensuring optimal operator protection.

RB500B-P RB500B-E RB500B-D20 RB500B-D30
MPN 340542J 340554J 340610J 340540B
Motor/Engine Honda Petrol 380V Electric 50Hz Hatz Diesel Hatz Diesel
Power 5.5Hp/4.0kW 3.0Hp/2.2kW 4.2Hp/3.1kW 7.0Hp/5.2kW
Maximum Drum Capacity 460ltr 460ltr 460ltr 460ltr
Mixing Capacity 400ltr 400ltr 400ltr 400ltr
Water Tank Capacity 60ltr 60ltr 60ltr 60ltr
Pneumatic Wheels 175R13 175R13 175R13 175R13
Dimensions (L/W/H) 1980 x 2002 x 2810mm 1980 x 2002 x 2810mm 1980 x 2002 x 2810mm 1980 x 2002 x 2810mm
Steel Cable Length 9500mm 9500mm 9500mm 9500mm
Scraper Included? No No No No
Weight 780kg 770kg 780kg 785kg
